• PHE8LBS brushed stainless double-door glass hardware kit with transom and sidelites, fits 3/8"-1/2" tempered glass
1 1

CRL

CRL Brushed Stainless European Patch Kit Double Doors w/ Lock

CRL Brushed Stainless European Patch Kit Double Doors w/ Lock

$1,292.12 CAD
$1,292.12 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHE8LBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Sidelite-Pair With Transom-Sidelite
Door Type
F Style Glass Door
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16

Overview

  • Compatible with 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Available with or without locks (SKU: PHE8LBS)

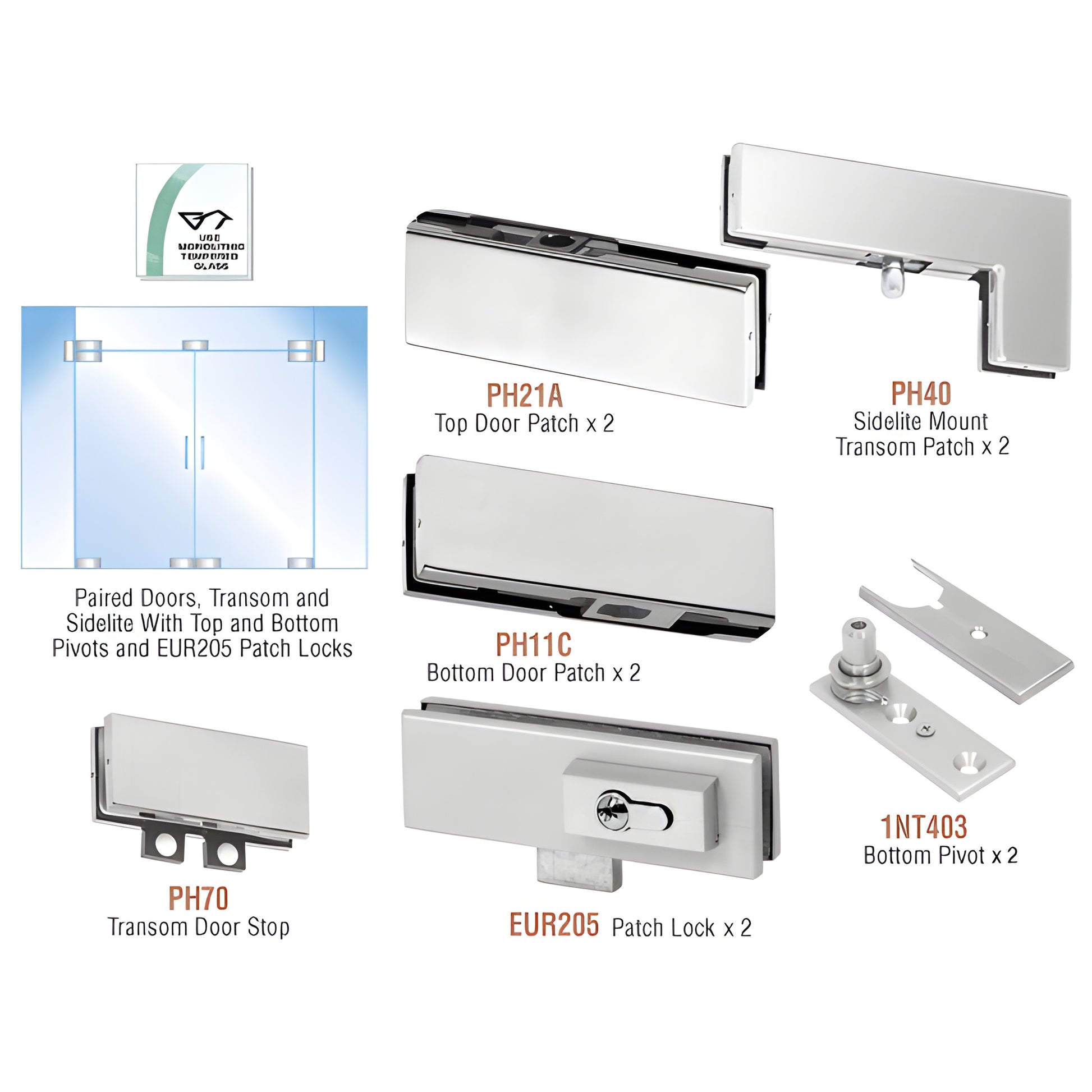

CRL PHE8 European Double Door Kits include the hardware needed to install a pair of free-swinging glass doors with a fixed transom and two sidelites (glass and additional supports for the fixed transom and sidelites are not included). Pivot setback: 2-9/16" (65 mm). A floor closer with tapered spindle (ordered separately) may be used with this kit—ideal for commercial and residential storefronts requiring a clean, frameless glass appearance. Kit Contains:
  • 2 - PH40 sidelite mount transom patches
  • 2 - PH21A top door patches
  • 2 - PH11C bottom door patches
  • 1 - PH70 transom door stop
  • 2 - 1NT403 bottom pivots
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in the glass)
Kits with locks also include two EUR205 patch locks; cylinders, thumbturns, and keepers are ordered separately. Compliance: For maximum door sizes CRL follows GANA Guidelines.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before submitting your order. Product images are of the actual product or a close representation; colors may vary depending on your monitor.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.

Why choose the PHE8 kit? Complete European double door glass hardware solution for 3/8"–1/2" tempered glass, available with or without locks, GANA-compliant, and compatible with standard floor closers—perfect for frameless commercial glass entrances. Order the PHE8 kit (SKU: PHE8LBS) today.

Specifications

Cleaning & Maintenance
CRL Stainless Steel Disclaimer
