CRL Brushed Stainless European Patch Kit Double Glass Doors w/ Lock

• For 3/8" or 1/2" (10 or 12 mm) tempered glass
• Five architectural finishes
• Available with or without locks

CRL PHE7 European Double Door Kits (SKU: PHE7LBS) include all door hardware required to assemble a pair of free-swinging pivot doors with fixed transom and sidelite—glass and any additional supports for the fixed transom and sidelite are not included. Pivot setback is 2-9/16" (65 mm). A compatible floor closer with tapered spindle (ordered separately) may be used with this kit. Ideal for frameless glass commercial entrances and architectural interior pivot doors.

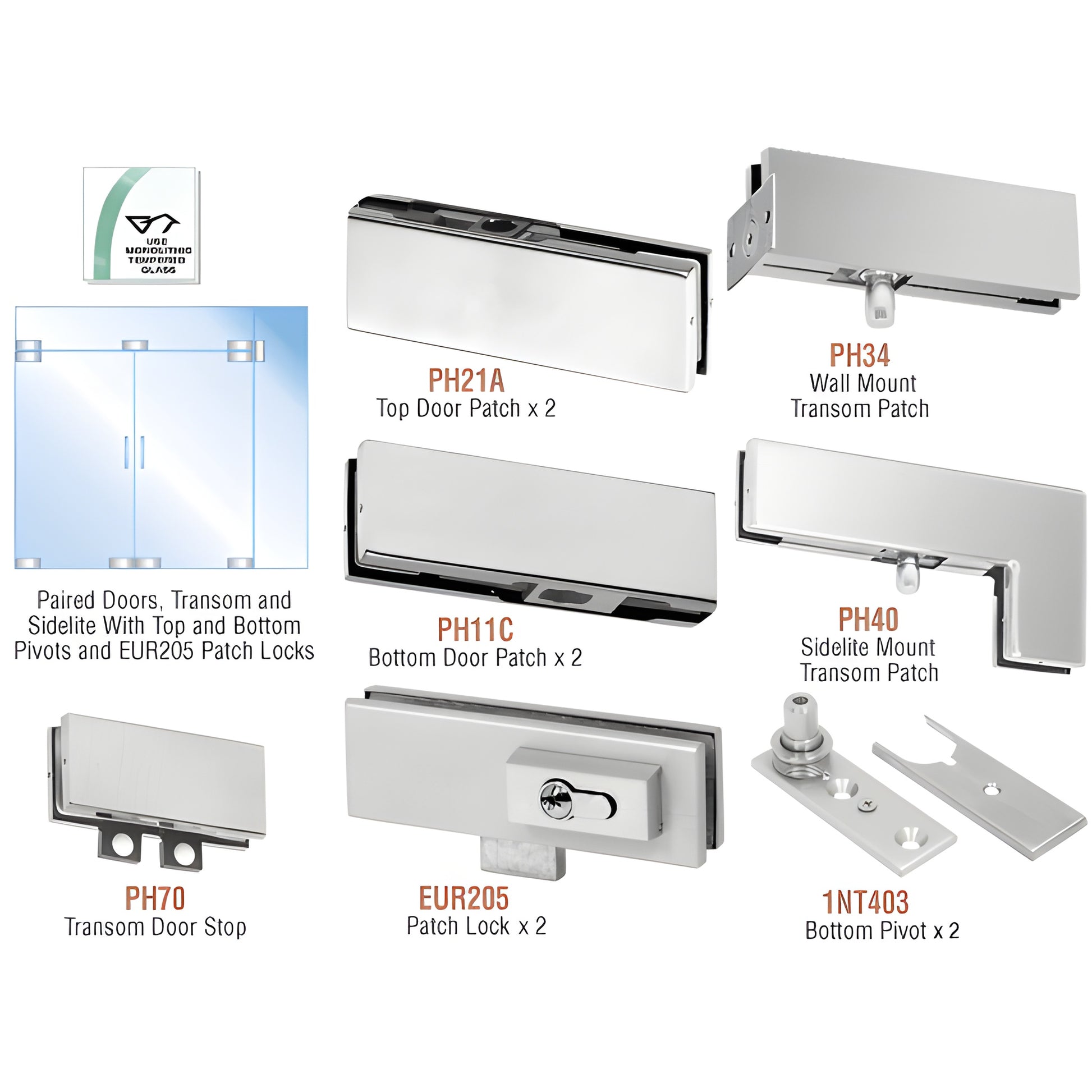

Kit contains:

• 1 - PH34 Wall Mount Transom Patch
• 1 - PH40 Sidelite Mount Transom Patch
• 2 - PH21A Top Door Patches
• 2 - PH11C Bottom Door Patches
• 1 - PH70 Transom Door Stop
• 2 - 1NT403 Bottom Pivots
• Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in the glass)

Kits with locks include two Cat. No. EUR205 patch locks; cylinders, thumbturns, and keepers are ordered separately.

Note: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Stainless Steel Advisory:

Designed for commercial and architectural frameless glass installations, the PHE7LBS European double door hardware kit offers pivot door hardware and tempered glass-compatible components in multiple finishes. Order now to complete your frameless pivot door installation.
