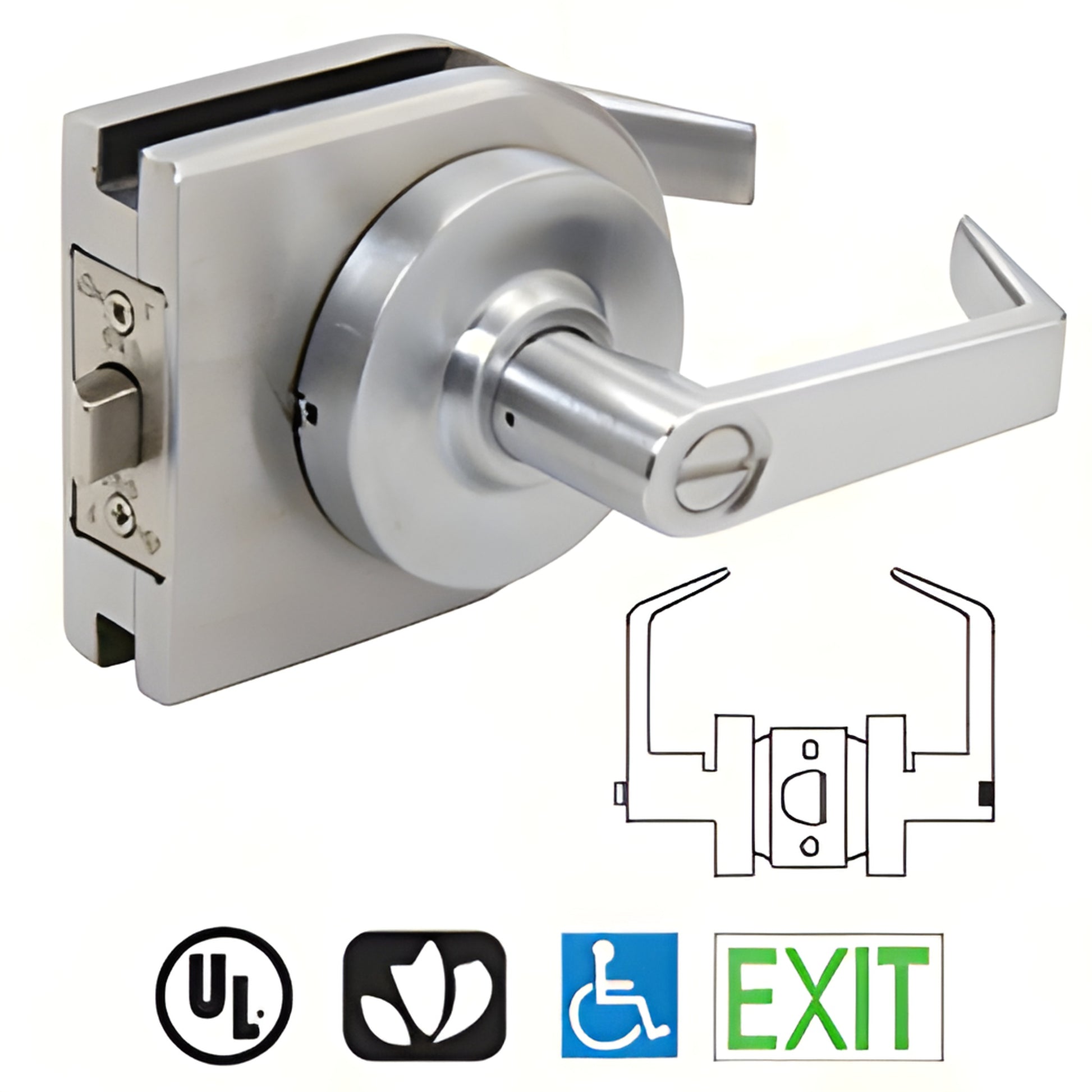

CRL Brushed Stainless Steel Grade 1 Privacy Door Lever Lock Housing
CRL Brushed Stainless Steel Grade 1 Privacy Door Lever Lock Housing
Regular price
$331.30 CAD
Regular price
Sale price
$331.30 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LH40BS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Cover Style
Round
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. (10 mm)
Height
4-1/2 in. (114 mm)
Width
6 in. (152 mm)
Overview
- Low profile body design for 1/2" (12 mm) glass — ideal for frameless glass doors
- Supplied with ANSI A156.2 Grade 1 or Grade 2 lever lock
- Non-handed and reversible for left or right door installations
- Five architectural finishes and four function options for customization
CRL's Lever Lock Housings (SKU: LH40BS) are easy-to-install and ship complete with housing and lever lockset for 3/8" or 1/2" (10 or 12 mm) glass. Entrance and storeroom models are available with either a Schlage® 'C' 6-pin keyway or a 7-pin Small Format Interchangeable Core (SFIC). Includes an ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike.
Certifications and compliance:
• ANSI A156.2 Grade 1. UL10C and UBC 7.2 for Positive Pressure
• ANSI A117.1 and A.D.A. for Barrier-Free Accessibility
• C-UBC California Amended Uniform Builders Code – 2001
• NFPA-80 National Fire Protection - 1999
• NFPA101 National Fire Protection - Life Safety – 2000
Product Warning:
Glass fabrication is required. Installation instructions and fabrication template are included.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order the LH40BS low-profile lever lock housing for secure, ADA-compliant glass door installations — contact CRL or your distributor to buy now.
