CRL Brushed Stainless Patch Door Kit for Overhead Door Closer w/ Lock
Item# PHA2LBS
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Configuration
Single
Door Type
F Style Glass Door
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-3/4
- Adjustable top patch fitting (adjustable after installation)
- Available in five architectural finishes
- Door closer not included — use monolithic tempered glass (holes and notches required)
CRL PHA2 North American Patch Door Kits (SKU: PHA2LBS) include the hardware to complete a single frameless glass pivot door, excluding overhead closer and glass. Pivot setback: 2-3/4" (70 mm). Top Patch Fitting (Cat. No. PH20C) is adjustable after the door is installed. Overhead door closer must be ordered separately.

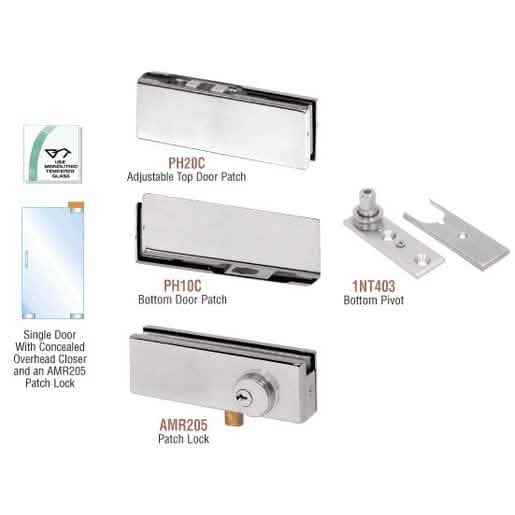

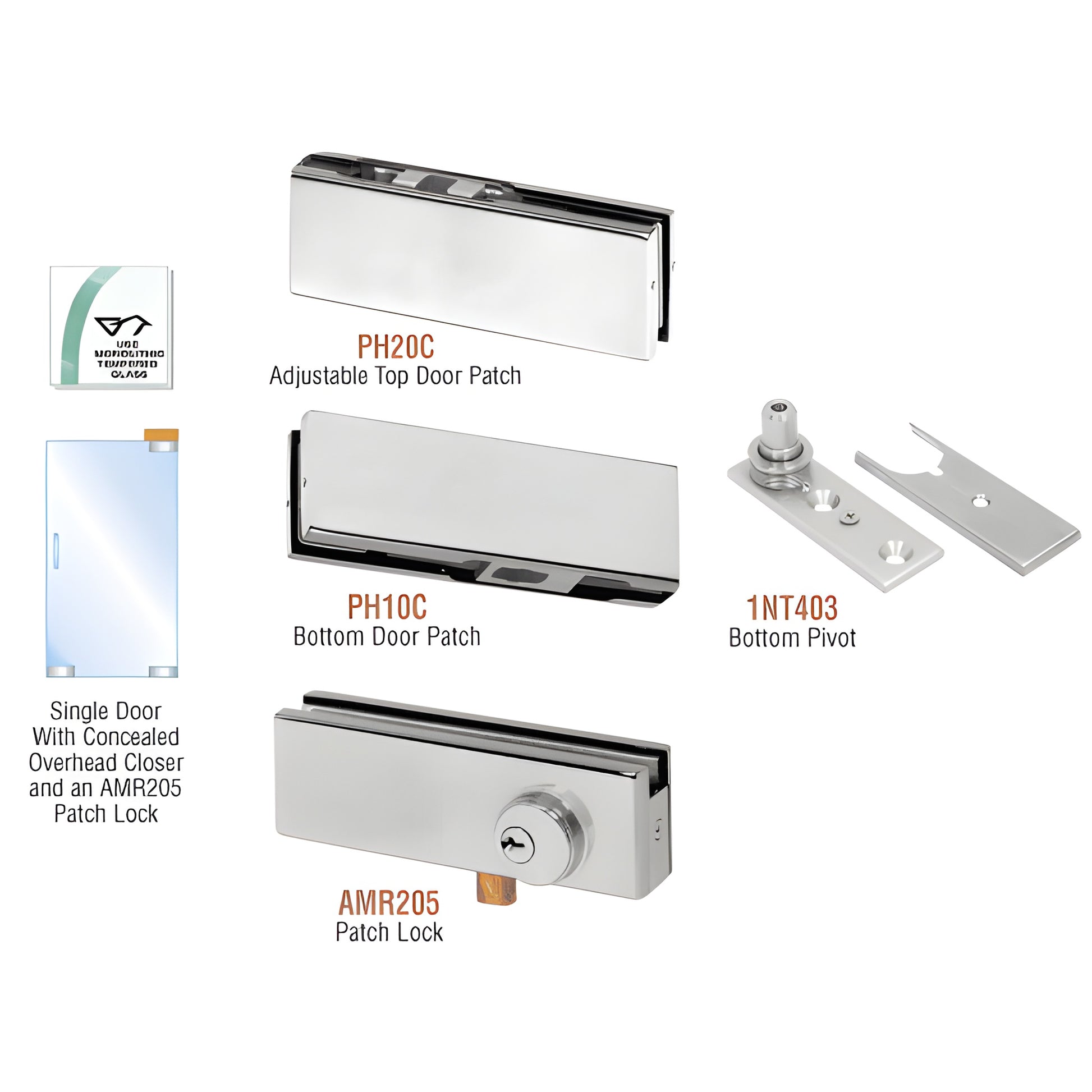

Kit Contains:
- 1 - PH20C Adjustable Top Door Patch
- 1 - PH10C Bottom Door Patch
- 1 - 1NT403 Bottom Pivot
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass
Kits with lock also include one Cat. No. AMR205 patch lock. Cylinders, thumbturns, and keepers are sold separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Most shipping weights are approximate. If exact weight is required to determine shipping costs, contact CRL Customer Service before placing your order. Product images are representative; colors may vary by monitor.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order the CRL PHA2LBS patch door kit today to complete your frameless tempered-glass pivot door—contact us for glass requirements and closer recommendations.
