Product Details
- Adjustable Top Fitting
- Five Architectural Finishes
- Door Closer Not Included
- Use Monolithic Tempered Glass
- 1 - PH20C Adjustable Top Door Patch
- 1 - PH10C Bottom Door Patch
- 1 - 1NT403 Bottom Pivot
- Gaskets for 3/8" or 1/2" (10 or 12 mm) Tempered Glass (holes and notches are required in the glass). Kits with Lock also come with one each Cat. No. AMR205 patch lock. Cylinders, thumbturns, and keepers are ordered separately. NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines. Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
CRL PHA2 North American Patch Door Kits come with all the hardware to complete a single door (except the overhead closer and glass). Pivot setback is 2-3/4" (70 mm). The Top Patch Fitting (Cat. No. PH20C) is adjustable after the door is installed. Overhead door closer must be ordered separately.

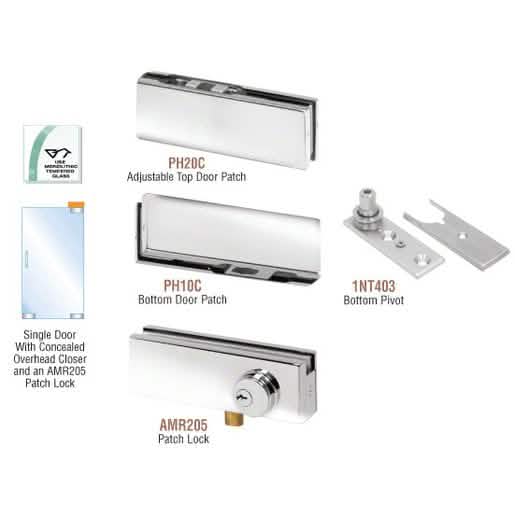

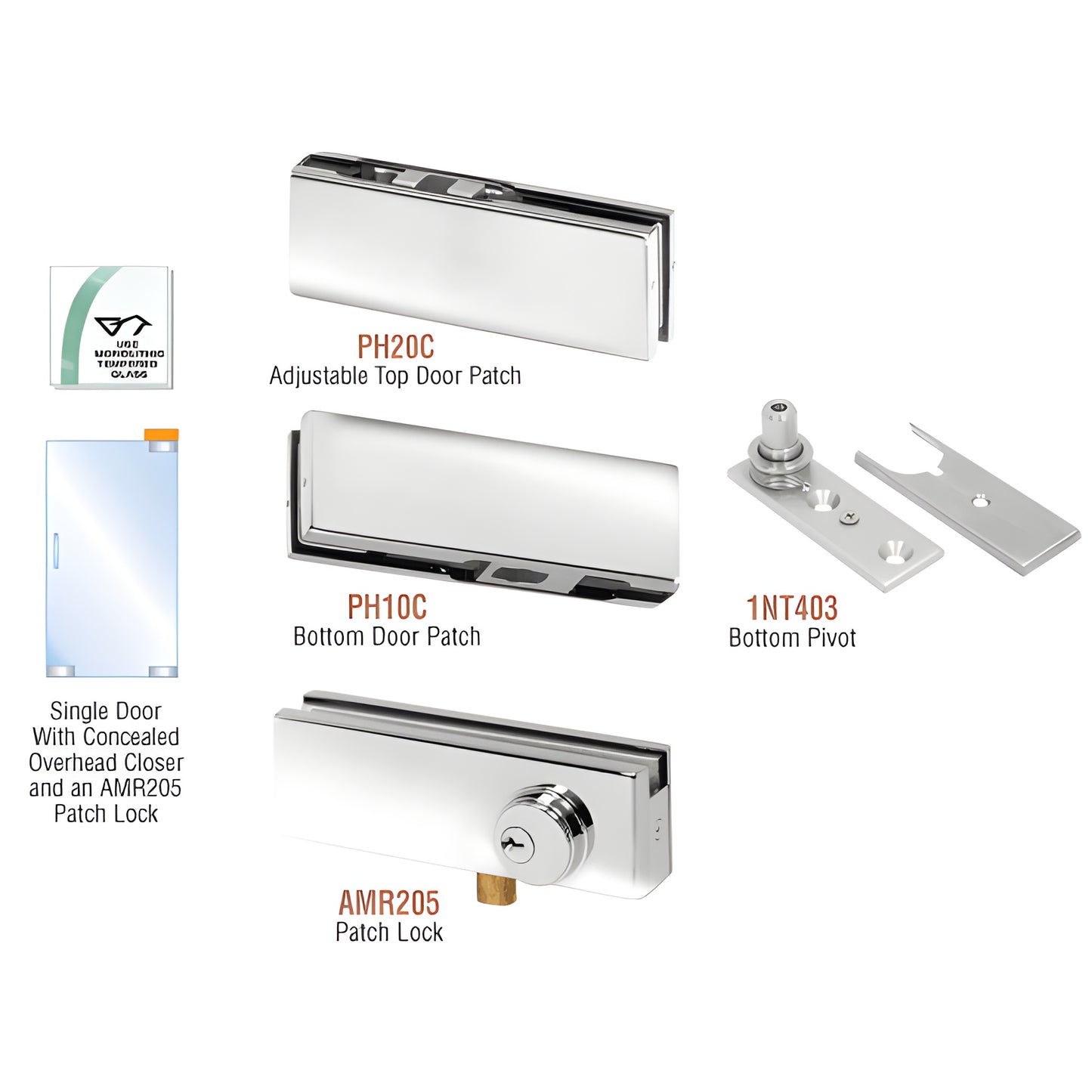

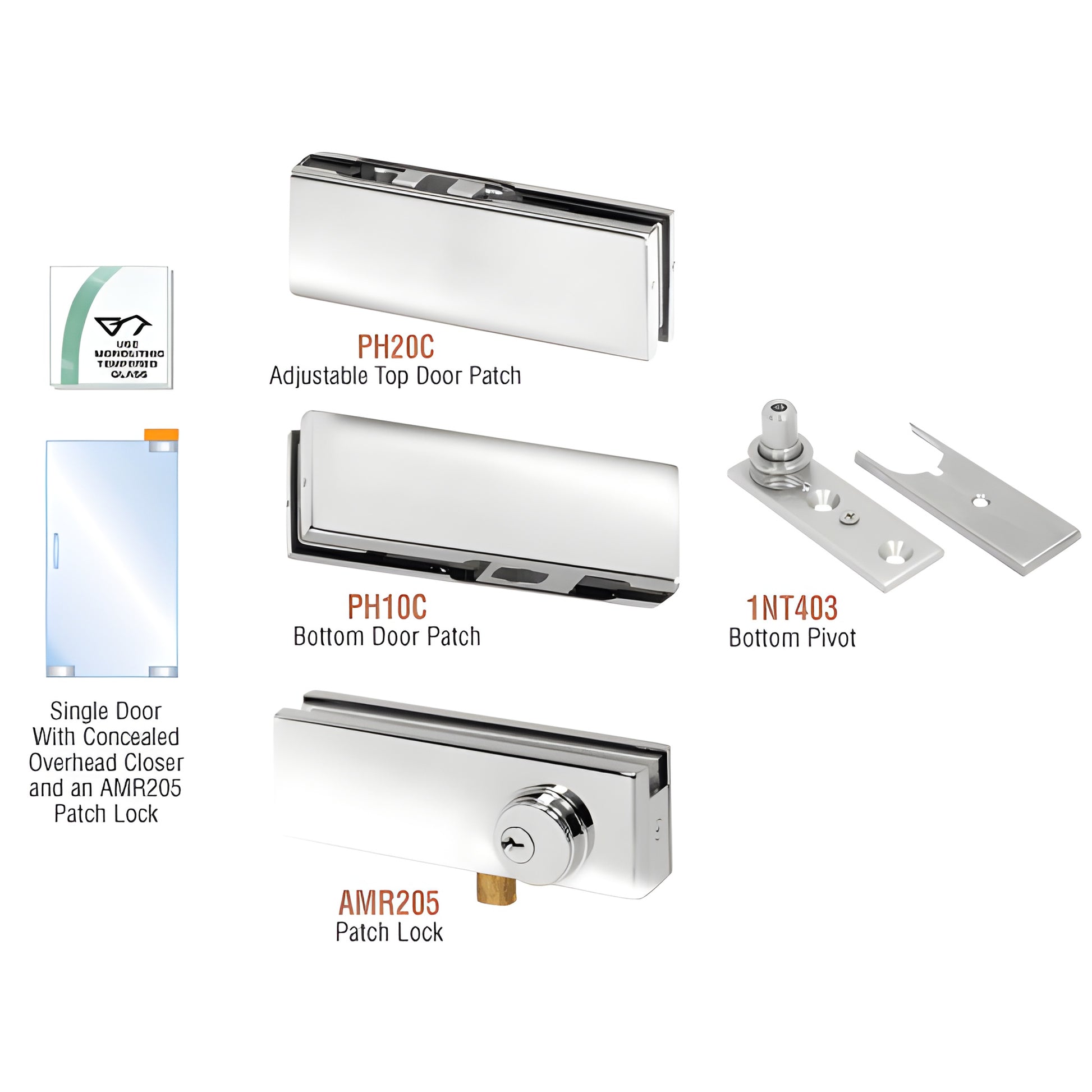

Kit Contains:
1 - PH20C Adjustable Top Door Patch
1 - PH10C Bottom Door Patch
1 - 1NT403 Bottom Pivot
Gaskets for 3/8" or 1/2" (10 or 12 mm) Tempered Glass (holes and notches are required in the glass).
Kits with Lock also come with one each Cat. No. AMR205 patch lock. Cylinders, thumbturns, and keepers are ordered separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Stainless Steel Advisory:Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
