CRL Matte Black Glass Patch Door Kit for Overhead Closer with Lock
CRL Matte Black Glass Patch Door Kit for Overhead Closer with Lock
Regular price
$382.62 CAD
Regular price
Sale price
$382.62 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHA2LMBL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Single
Door Type
F Style Glass Door
Finish/Color
Matte Black
Glazing Thickness
3/8 in. or 1/2 in. (10 mm or 12 mm)
Pivot Setback
2-3/4 in. (69.85 mm)
Overview
- Adjustable Top Fitting (PH20C) — adjustable after installation
- Five architectural finishes available
- Designed for monolithic tempered glass (3/8" or 1/2" / 10 or 12 mm) with required holes and notches
- Door closer not included — overhead closer must be ordered separately
CRL PHA2 North American Patch Door Kits (SKU: PHA2LMBL) include the hardware to complete a single commercial glass door installation, excluding overhead closer and glass. Pivot setback: 2-3/4" (70 mm). Ideal for frameless glass doors and commercial storefront glass applications where durable patch fittings and adjustable top patches are required.

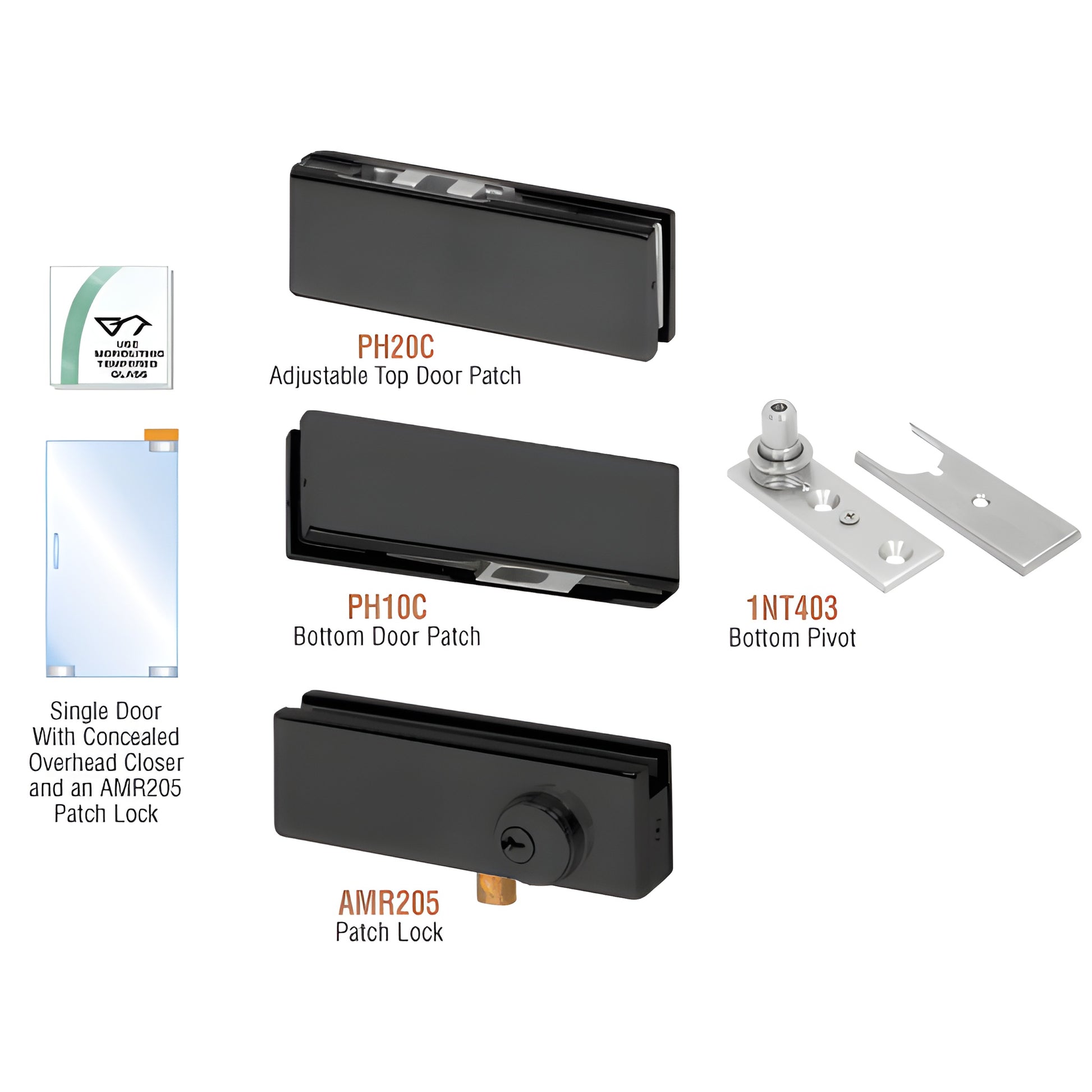

Kit Contains:
- 1 — PH20C Adjustable Top Door Patch
- 1 — PH10C Bottom Door Patch
- 1 — 1NT403 Bottom Pivot
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in the glass)
Kits with lock include one Cat. No. AMR205 patch lock; cylinders, thumbturns, and keepers are ordered separately. For maximum door sizes, CRL follows GANA Guidelines.
Order the PHA2LMBL patch door kit today to equip your frameless commercial glass door with adjustable, durable patch hardware.
