CRL Satin Anodized Glass Patch Door Kit w/ Lock for Overhead Closer
CRL Satin Anodized Glass Patch Door Kit w/ Lock for Overhead Closer
Regular price
$448.30 CAD
Regular price
Sale price
$448.30 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHA2LA
Shipping Weight: 4.85 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.85 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Single
Door Type
F Style Glass Door
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-3/4
Overview
- Adjustable Top Fitting
- Five Architectural Finishes
- Door Closer Not Included
- Use Monolithic Tempered Glass (holes and notches required)
Compact, high-quality patch door kit for commercial tempered glass doors. Includes all hardware to complete a single door installation except the overhead door closer and glass. Pivot setback: 2-3/4" (70 mm). Top Patch Fitting (Cat. No. PH20C) is adjustable after installation. Overhead door closer must be ordered separately.

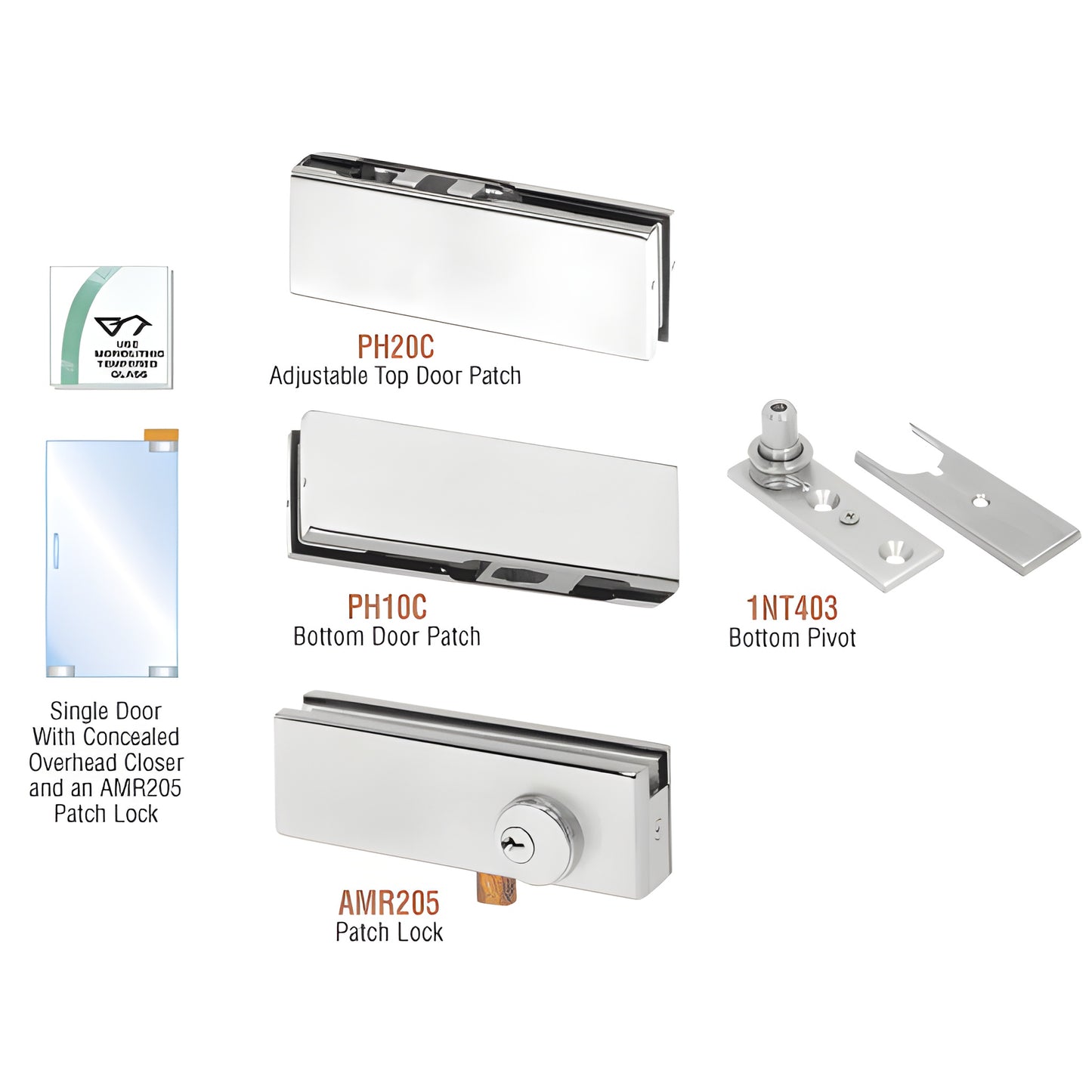

Kit Contains:
- 1 - PH20C Adjustable Top Door Patch
- 1 - PH10C Bottom Door Patch
- 1 - 1NT403 Bottom Pivot
- Gaskets for 3/8" or 1/2" (10 or 12 mm) Tempered Glass
Note: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Order the CRL PHA2LA patch door kit for durable, adjustable hardware and multiple architectural finishes — contact your CRL supplier to purchase.
