CRL Brushed Stainless Patch Kit for Double Doors w/ Transom Lock
CRL Brushed Stainless Patch Kit for Double Doors w/ Transom Lock
Regular price
$1,167.90 CAD
Regular price
Sale price
$1,167.90 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHE6LBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Pair With Transom
Door Type
F Style Glass Door
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16
Overview
- Most Popular Design
- For 3/8" or 1/2" (10 or 12 mm) tempered glass
- Available with or without locks
CRL PHE6 European Double Door Kits (SKU: PHE6LBS) include the hardware needed to assemble a pair of free-swinging doors with a fixed transom (glass and additional transom supports not included). Pivot setback: 2-9/16" (65 mm). A floor closer with tapered spindle (ordered separately) may be used with this kit.

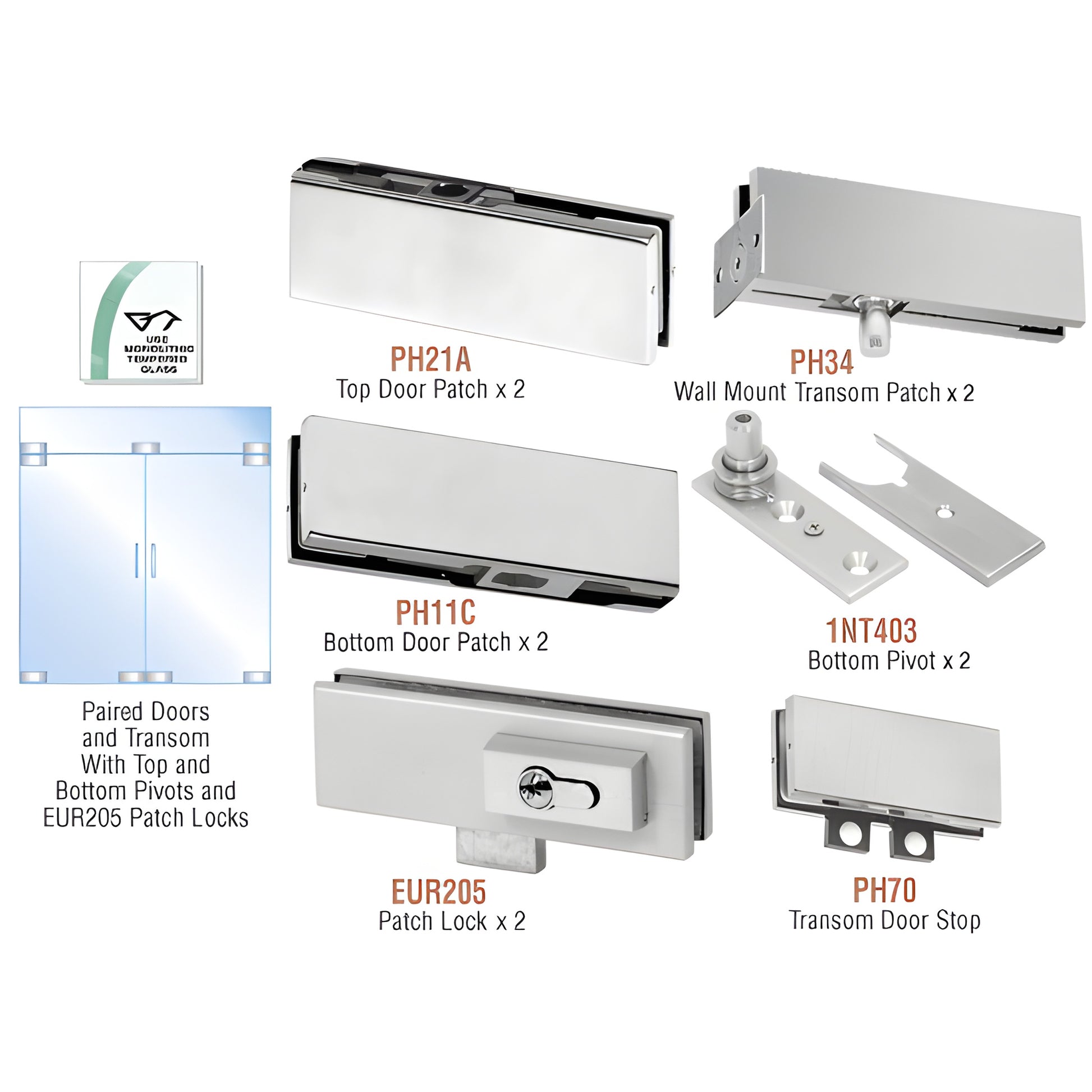

Kit Contains:
- 2 - PH34 Wall Mount Transom Patches
- 2 - PH21A Top Door Patches
- 2 - PH11C Bottom Door Patches
- 1 - PH70 Transom Door Stop
- 2 - 1NT403 Bottom Pivots
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in glass)
Kits with locks include two Cat. No. EUR205 patch locks. Cylinders, thumbturns, and keepers are ordered separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to help preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Designed for commercial and residential glass door installations, this PHE6 European double door kit is a top choice for frameless tempered glass entrances. Shop now or contact us for a quote.
