CRL
CRL Brushed Stainless Patch Kit for Double Glass Doors - No Lock
CRL Brushed Stainless Patch Kit for Double Glass Doors - No Lock
Regular price
$779.56 CAD
Regular price
Sale price
$779.56 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHE6BS
Shipping Weight: 11.45 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.45 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Pair With Transom
Door Type
A Style Glass Door
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16
Overview
- Most Popular Design
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
- Available with or without locks
CRL PHE6 European Double Door Kits (SKU: PHE6BS) include all hardware required to complete a pair of free-swinging glass doors with a fixed transom (glass and additional transom supports not included). Pivot setback: 2-9/16" (65 mm). Compatible with a floor closer using a tapered spindle (floor closer ordered separately). Ideal for commercial and residential glass entrance systems requiring European-style patch fittings and tempered glass hardware.

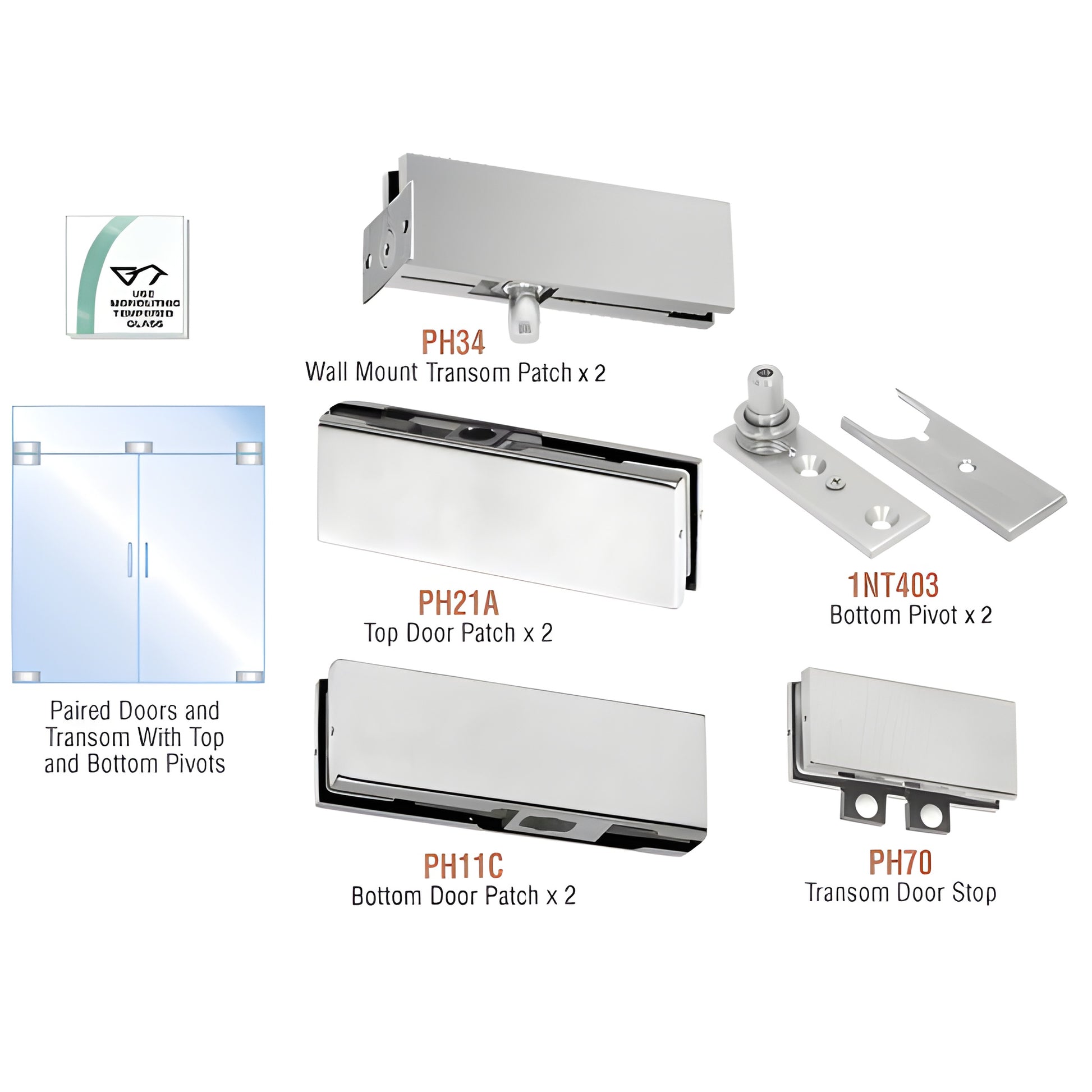

Kit Contains:
- 2 – PH34 Wall Mount Transom Patches
- 2 – PH21A Top Door Patches
- 2 – PH11C Bottom Door Patches
- 1 – PH70 Transom Door Stop
- 2 – 1NT403 Bottom Pivots
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass must have required holes and notches)
Kits sold with locks include two Cat. No. EUR205 patch locks. Cylinders, thumbturns, and keepers are ordered separately.
NOTE: For maximum door sizes when using this kit, CRL follows GANA Guidelines.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not impervious to staining or rust. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more details.
Shop CRL PHE6 European double door patch kits for tempered glass—order now or contact us for custom specifications and shipping weight.
Specifications
Cleaning & Maintenance
