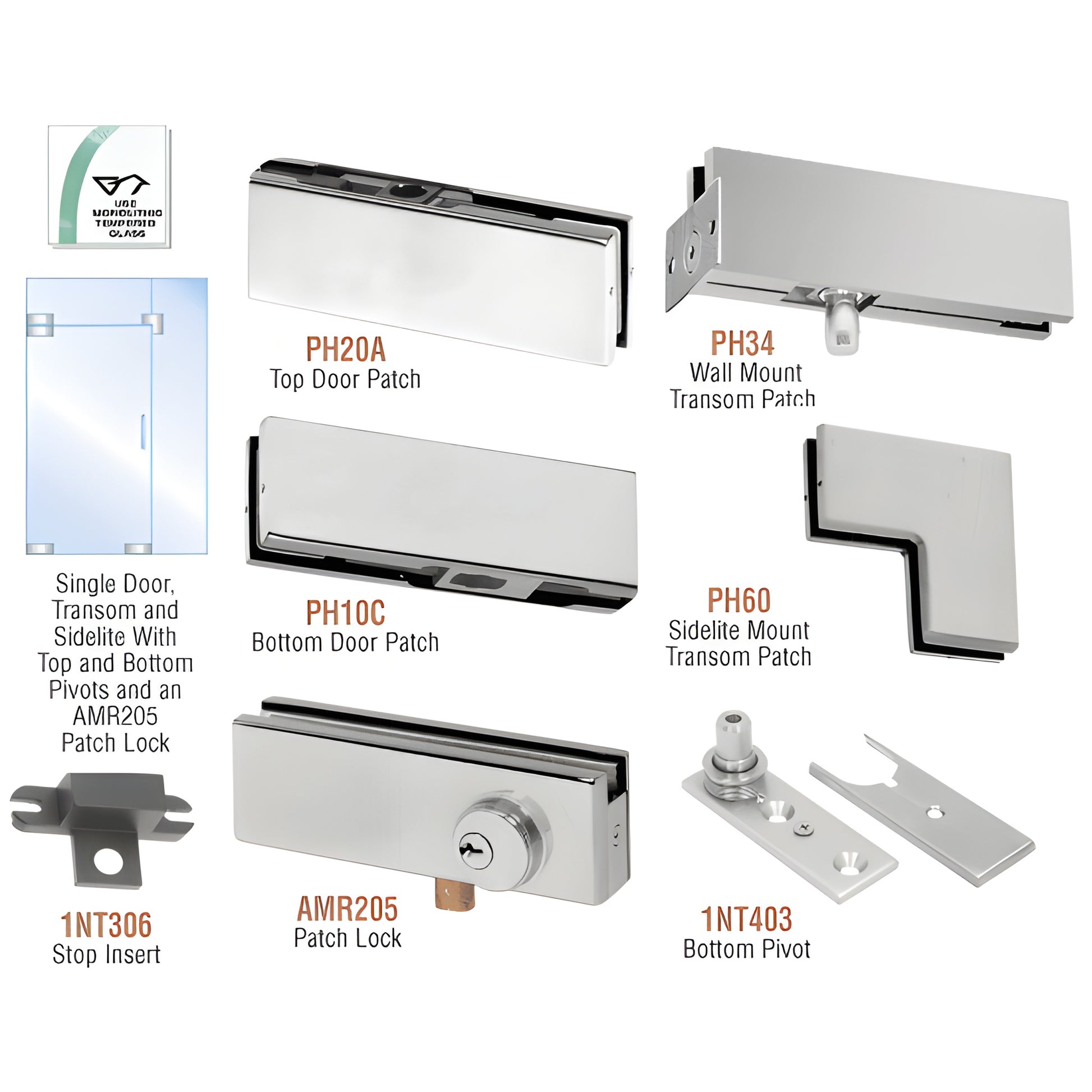

• PHA4LBS stainless steel pivot glass door kit with top/bottom patches, transom/sidelite mounts, patch lock, pivots.
1 1

CRL

CRL Brushed Stainless Patch Kit for Fixed Transom & Sidelite No Lock

CRL Brushed Stainless Patch Kit for Fixed Transom & Sidelite No Lock

$623.93 CAD
$623.93 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHA4LBS
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Single With Transom-Sidelite
Door Type
F Style Glass Door
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-3/4

Overview

  • For 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Five architectural finishes
CRL PHA4 North American Door Kits (SKU: PHA4LBS) include all hardware required to install a free-swinging frameless glass door with fixed transom and sidelite (glass and any additional supports for the transom and sidelite are not included). Pivot setback: 2-3/4" (70 mm). Compatible with a floor closer that uses a tapered spindle (floor closer ordered separately). Kit contains:
  • 1 - PH34 Wall Mount Transom Patch
  • 1 - PH60 Sidelite Mount Transom Patch
  • 1 - PH20A Top Door Patch
  • 1 - PH10C Bottom Door Patch
  • 1 - 1NT306 Stop Insert
  • 1 - 1NT403 Bottom Pivot
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in the glass)
Kits with lock include one AMR205 patch lock; cylinders, thumbturns, and keepers are ordered separately. NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before completing your order, please request it from CRL Customer Service. Product images are actual product or close representations; colors may vary by monitor settings.

Stainless Steel Advisory:
Although stainless steel resists corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.

Order the PHA4LBS tempered glass pivot door kit today or contact CRL for technical assistance and exact shipping weights.
