- Replacement for Roller Supplied in CRE78 Crescent Series Sliding System
- Sold as a two pack for Replacement Purposes
- Use Monolithic Tempered Glass
- Available in Satin Brass, Brushed Bronze, Brushed Stainless Steel, and Matte Black
- One - 78" (1981 mm) Length of Header Bar
- Four - Rollers
- One - Stopper
- Two - Wall Mount Fittings
- Two - Track Holder Fittings for Fixed Panel
- One - Bottom Guide (includes inserts for both 1/2" and 3/8" (12 and 10 mm) Glass)
- Two - 40" (1016 mm) Bottom Sweeps with
- Drip Rail (one for 3/8" (10 mm) and one for 1/2" (12 mm)
- One - 80" (2032 mm) Clear L-Jamb NOTE: Customer to supply choice of Handle or Knob for door, and Glass Clamps or U-Channel for fixed panel. SPECIFICATIONS:
- Material: Stainless Steel
- Glass Thickness: 1/2" or 3/8" (12 or 10 mm) - Not Included
- Maximum Door Size: 36" (914 mm) wide or 100 lbs (45 kg) - Do not exceed either width or weight.
- Glass Fabrication Required for Both Door and Fixed Panel Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted. Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
This

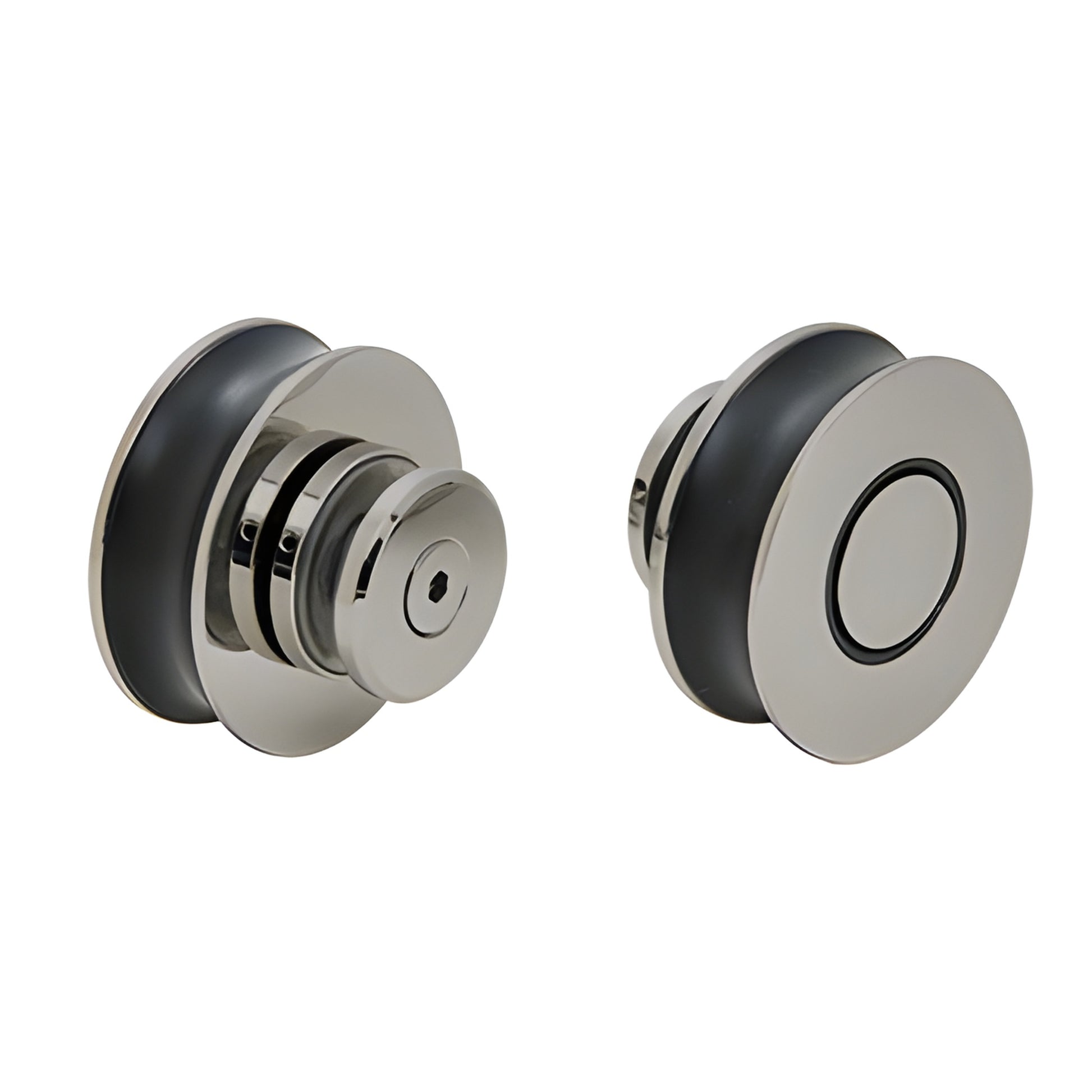

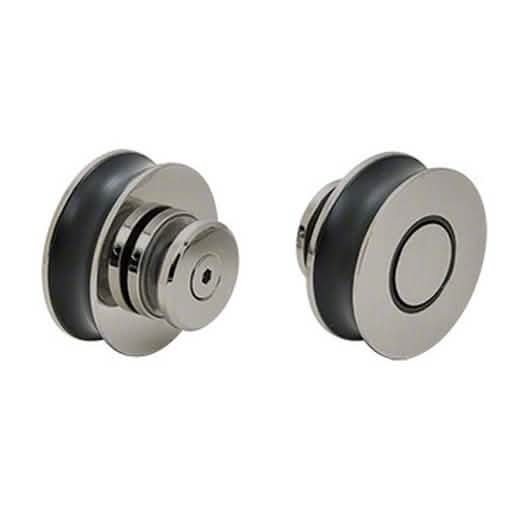

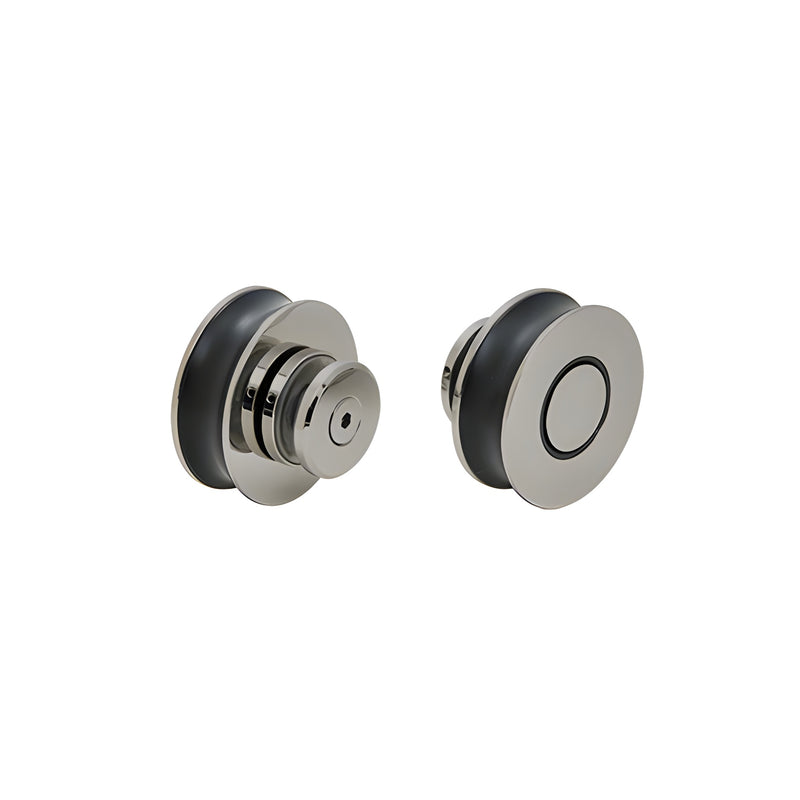

CRL Crescent Roller
is sold as a two pack and is to be used as a replacement for the rollers that come standard in the CRE78 Crescent Series Sliding System. Available in Brushed Stainless, Polished Stainless Brushed Bronze, Satin Brass and Matte Black finishes.
STANDARD 180 DEGREE KIT INCLUDES
One - 78" (1981 mm) Length of Header Bar
Four - Rollers
One - Stopper
Two - Wall Mount Fittings
Two - Track Holder Fittings for Fixed Panel
One - Bottom Guide (includes inserts for both 1/2" and 3/8" (12 and 10 mm) Glass)
Two - 40" (1016 mm) Bottom Sweeps with
Drip Rail (one for 3/8" (10 mm) and one for 1/2" (12 mm)
One - 80" (2032 mm) Clear L-Jamb
NOTE
Customer to supply choice of Handle or Knob for door, and Glass Clamps or U-Channel for fixed panel.
SPECIFICATIONS
Material: Stainless Steel
Glass Thickness: 1/2" or 3/8" (12 or 10 mm) - Not Included
Maximum Door Size: 36" (914 mm) wide or 100 lbs (45 kg) - Do not exceed either width or weight.
Glass Fabrication Required for Both Door and Fixed Panel
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
