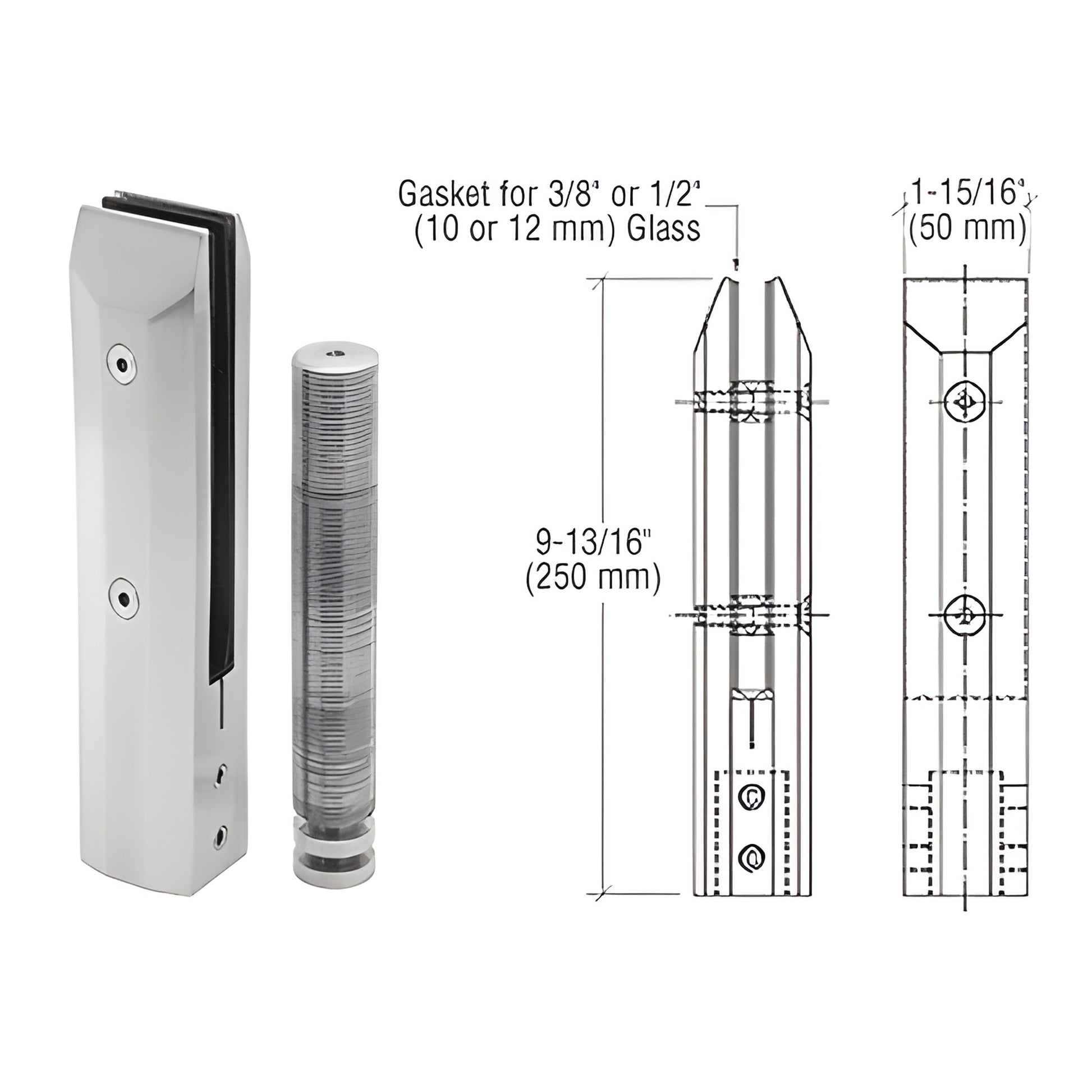

• AFWC1 brushed stainless one-piece core-drilled glass windscreen clamp, fits 10/12/14mm glass, 250mm tall.
1 1

CRL

CRL Brushed Stainless Steel Core-Mount Frameless Windscreen Clamp

CRL Brushed Stainless Steel Core-Mount Frameless Windscreen Clamp

$298.51 CAD
$298.51 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# AFWC1
Shipping Weight: 8.195 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Attachment
Core
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in., 9/16 in. (10 mm, 12 mm, 14 mm)
Material
Stainless Steel

Overview

  • Designed for 3/8" or 1/2" (10 or 12 mm) tempered monolithic glass and 9/16" (13.52 mm) tempered laminated glass
  • 1-3/16" (30 mm) rod easily inserts into core-drilled hole for secure mounting

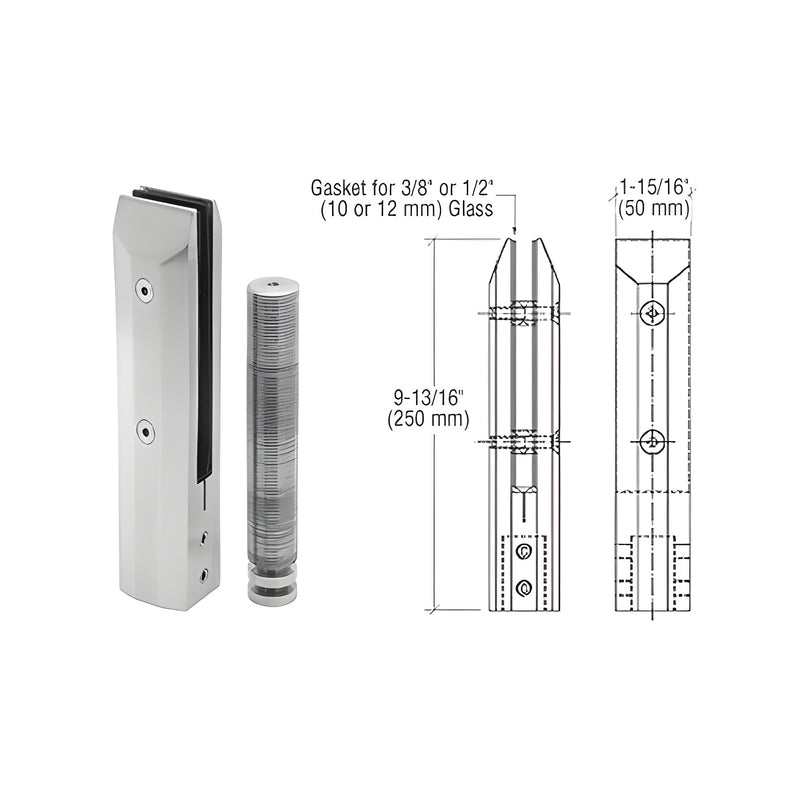

CRL One-Piece Clamps (SKU: AFWC1) are one-piece frameless glass windscreen clamps engineered for insertion into core-drilled holes in decks or on top of walls. Glass fabrication requires two 3/4" (19 mm) holes per clamp. Overall height: 9-13/16" (250 mm).


CRL frameless windscreen clamps are ideal for tempered glass windscreens and pool surrounds where a minimal, modern look is required. These one-piece core-drilled hole clamps reduce visible hardware and provide a clean edge for pool surrounds, balcony windscreens, and terrace barriers. Four core-drill styles are filled with expanding cement for secure installation; additional models include face-mount windscreens and new surface-mount options. Custom powder-coated finishes available for matching architectural palettes.

NOTE: CRL is an international supplier—check local building codes to confirm these frameless windscreen clamps meet regional regulations.

Most shipping weights are approximate and have not been verified. If exact weight is needed to determine shipping costs, please contact CRL Customer Service before submitting your order. Product images are of the actual product or a close representation; colors may vary by monitor and video card.

Stainless Steel Advisory:
Although stainless steel resists corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for full care instructions.
