CRL Brushed Stainless Steel Double Door Patch Kit w/ Lock
CRL Brushed Stainless Steel Double Door Patch Kit w/ Lock
Regular price
$1,239.30 CAD
Regular price
Sale price
$1,239.30 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHA8LBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Sidelite-Pair With Transom-Sidelite
Door Type
F Style Glass Door
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-3/4
Overview
- For 3/8" or 1/2" (10 or 12 mm) tempered glass
- Available with or without locks (locks include AMR205 patch locks; cylinders, thumbturns, and keepers ordered separately)
CRL PHA8 North American Double Door Kits (SKU: PHA8LBS) include the hardware needed to build a pair of free-swinging glass doors with a fixed transom and two sidelites (glass and additional supports for the fixed transom/sidelites not included). Pivot setback: 2-3/4" (70 mm). A separate floor closer with tapered spindle may be used with this kit.

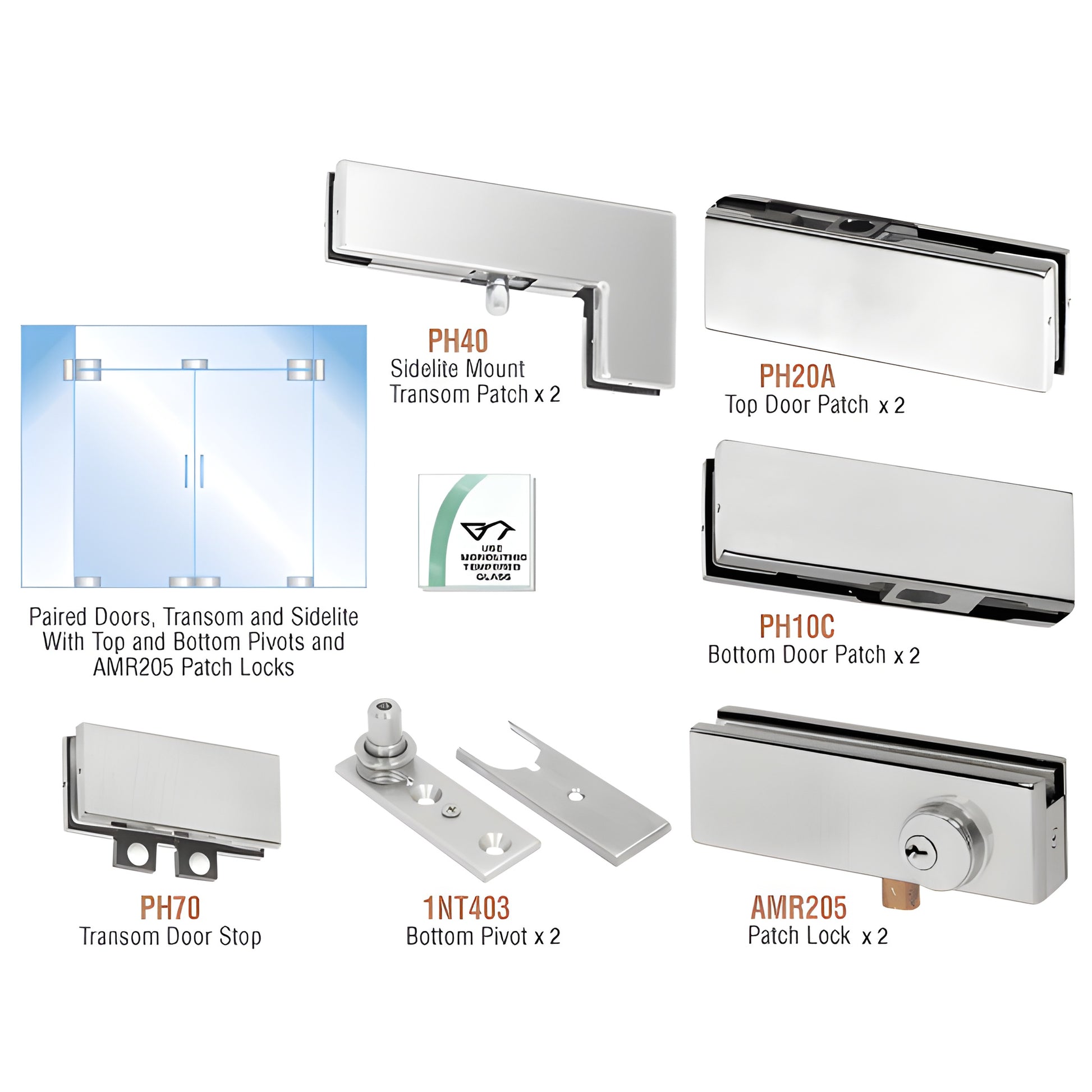

Kit Contains:
- 2 - PH40 sidelite mount transom patches
- 2 - PH20A top door patches
- 2 - PH10C bottom door patches
- 1 - PH70 transom door stop
- 2 - 1NT403 bottom pivots
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in the glass)
Kits with locks include two AMR205 patch locks. Order cylinders, thumbturns, and keepers separately. Note: CRL follows GANA Guidelines for maximum door sizes when using this product.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. Periodic maintenance is recommended to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Shop the PHA8LBS double door glass hardware kit for reliable pivot patch hardware for tempered glass doors — order now or contact us for technical assistance.
