CRL Brushed Stainless Steel Swivel Hinge for Frameless Glass Door
CRL Brushed Stainless Steel Swivel Hinge for Frameless Glass Door
Regular price
$33.34 CAD
Regular price
Sale price
$33.34 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SA61BS
Shipping Weight: 1.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Fitting Type
Swivel
Glazing Thickness
1/4 in. To 3/8 in. (6 mm To 10 mm)
Material
Stainless Steel
Overview

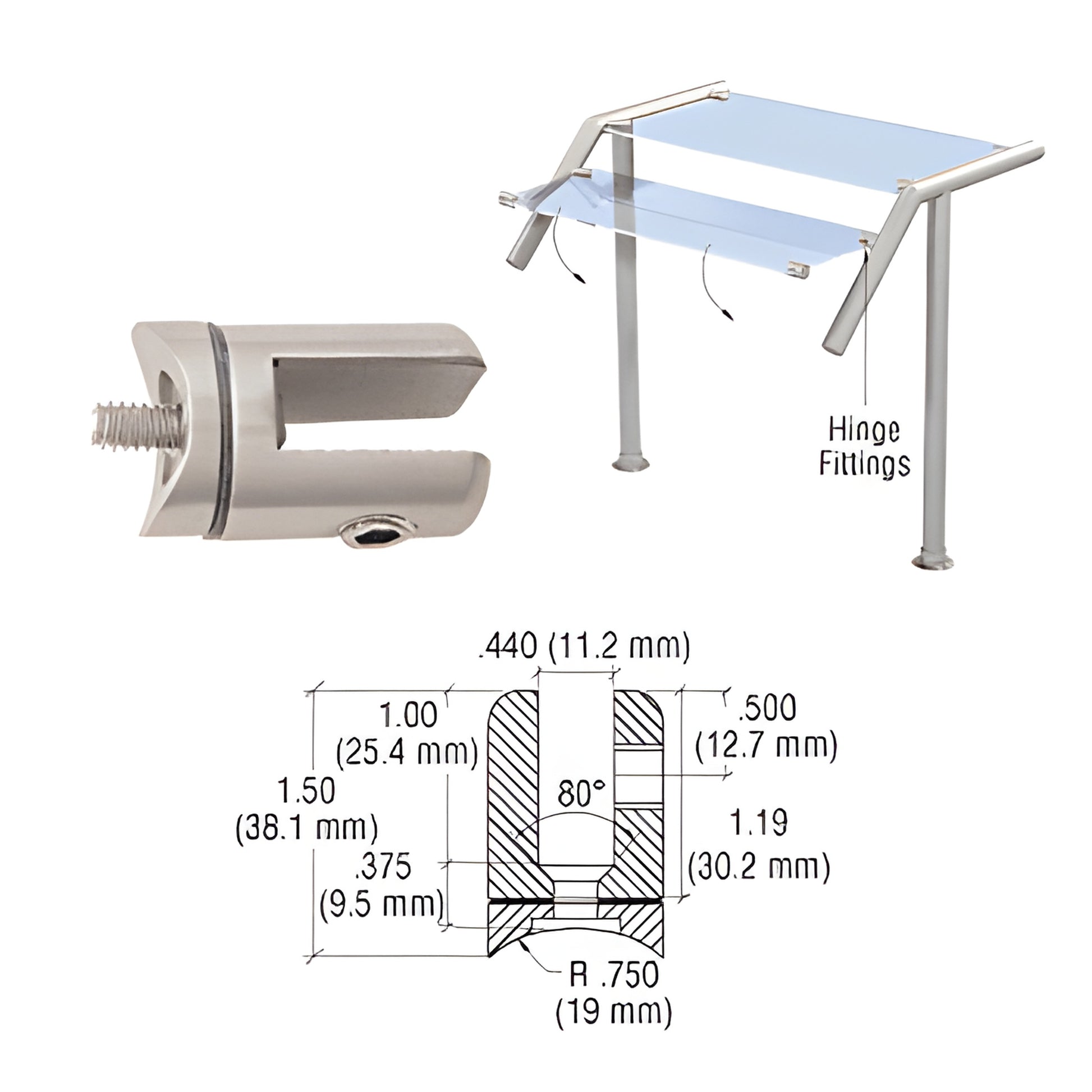

- Radius mounting base for 1-1/2" (38 mm) diameter round tubing
- Secures 1/4" to 3/8" (6 to 10 mm) thick glass with a vinyl gasket and nylon-tipped set screw
- Designed for use with monolithic tempered glass
CRL Swivel Hinge Glass Fittings (SKU: SA61BS) provide a durable swivel hinge solution for glass panels attached to 1-1/2" (38 mm) round tubing. Fits 1/4" to 3/8" (6 to 10 mm) tempered glass and includes a 1/4"-20 flat head screw. Ideal for applications requiring an access-up swivel glass hinge on round tubing rail systems.
NOTE: Will not fit properly if installed on 2" (51 mm) diameter round tubing.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Shop the SA61BS swivel hinge glass fitting for reliable glass-to-tubing mounting—order now or contact us for help with specifications and shipping.
