CRL Polished Stainless Steel Swivel Hinge for Glass Shower Doors
CRL Polished Stainless Steel Swivel Hinge for Glass Shower Doors
Regular price
$33.34 CAD
Regular price
Sale price
$33.34 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SA61PS
Shipping Weight: 1.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Fitting Type
Swivel
Glazing Thickness
1/4 in. To 3/8 in. (6 mm To 10 mm)
Material
Stainless Steel
Overview

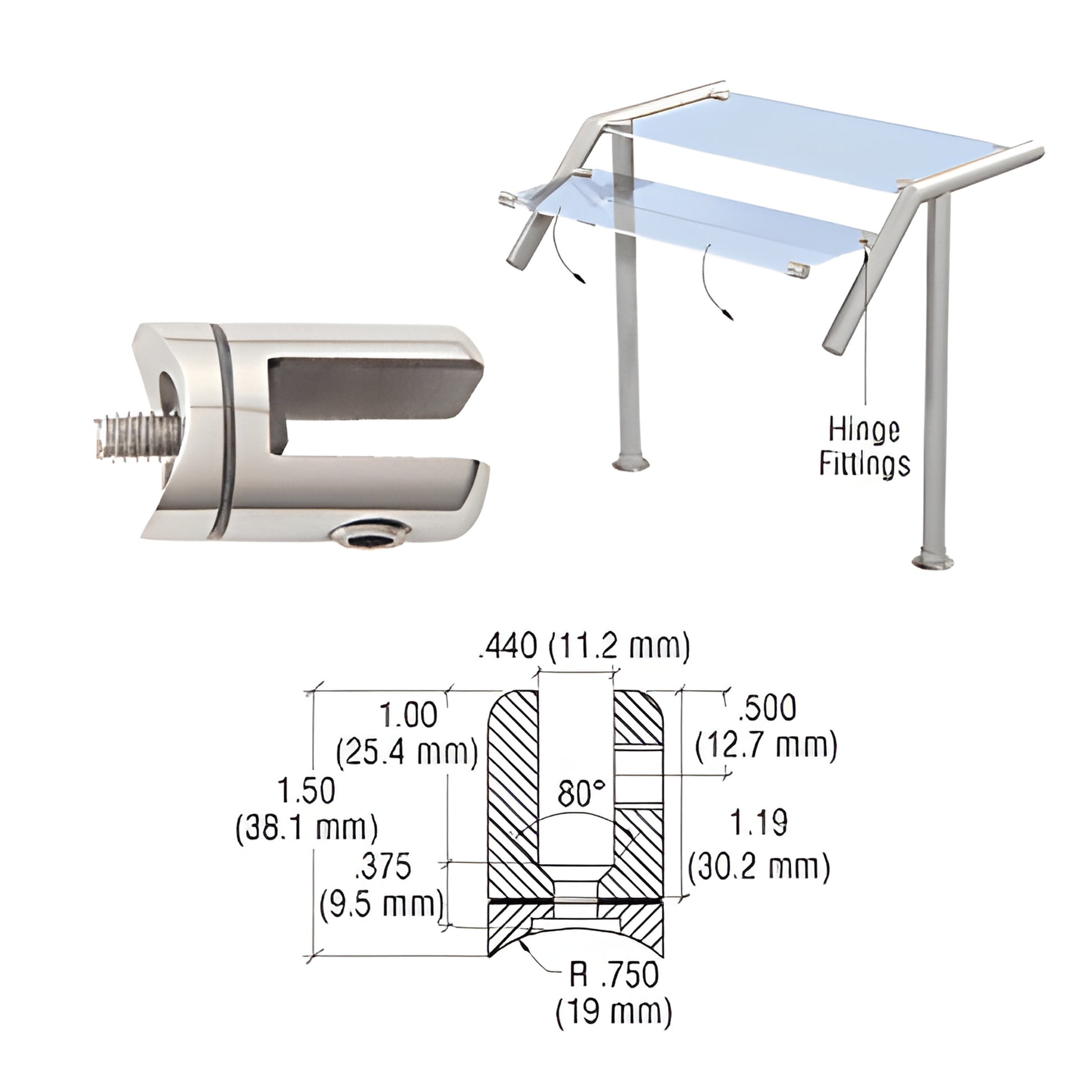

- Radius mounting base for 1-1/2" (38 mm) diameter round tubing — designed for secure swivel hinge installation
- Holds 1/4" to 3/8" (6 to 10 mm) monolithic tempered glass with a vinyl gasket and nylon-tipped set screw for scratch protection
- Supplied with a 1/4"-20 flat head screw for easy attachment to tubing
CRL Swivel Hinge Glass Fittings provide a durable, space-saving solution to swivel glass panels up for access when mounted to 1-1/2" (38 mm) round tubing. Compatible with 1/4" to 3/8" (6 to 10 mm) monolithic tempered glass, this fitting combines a radius mounting base and protective vinyl gasket to minimize wear and maintain a snug fit—ideal for glass shower enclosures and frameless glass partitions.
NOTE: Will not fit properly if installed on 2" (51 mm) diameter round tubing.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
SKU: SA61PS
Order this swivel hinge glass fitting (SA61PS) for a reliable, tempered-glass mounting solution.
