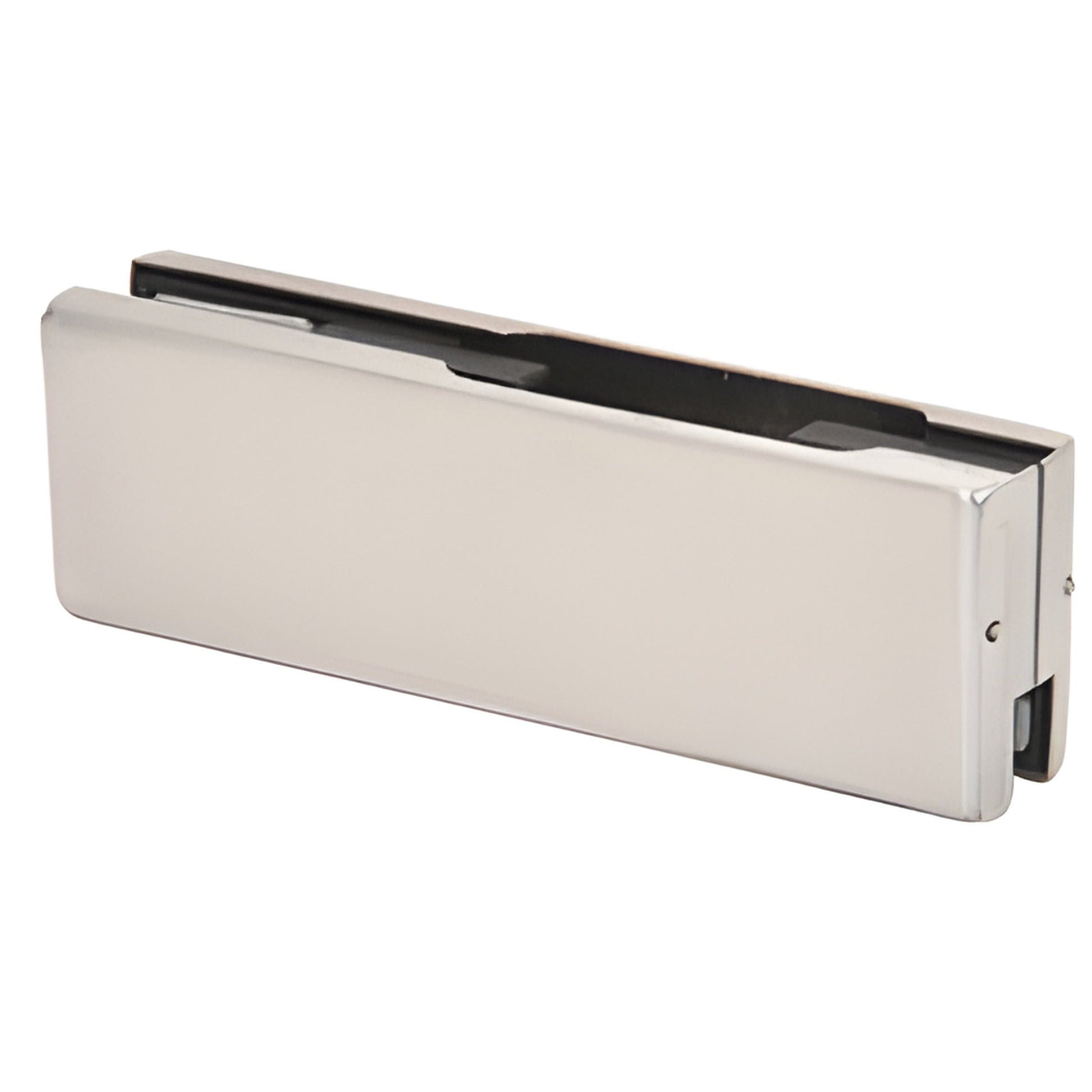

CRL Brushed Stainless Patch Fitting (Top/Bottom) for Glass No Insert

• For use with top and bottom inserts (interchangeable)
• High-density cast body for durable glass door mounting
• Gaskets fit 3/8" or 1/2" (10 or 12 mm) glass

CRL American T/B Door Patch (Less Insert) — SKU: AMR201BS. This versatile door patch lets you use the same fitting for either the top or bottom of a frameless glass door by installing the appropriate insert.

Compatible Inserts:

• 1NT303 for top
• 1NT301 for bottom

Glass Fabrication Required:

• One corner notch

Includes:

• High-density cast body
• Cover plates (finish of your choice)
• Gaskets for 3/8" or 1/2" (10 or 12 mm) glass
• Template and instructions

Product Warning:

Not for use with laminated glass.

Use Guidelines for 1/2" Glass Doors (with this hardware):

• Maximum height: 102" (2.59 m)
• Maximum weight: 176 lbs (80 kg)
• Maximum width: 42" (1.09 m)

If the door exceeds any of these limitations, use full door rails.

Stainless Steel Advisory:

Key differentiators: interchangeable top/bottom inserts, high-density cast body for strength, and gasket compatibility with both 3/8" and 1/2" glass—ideal for frameless glass door installations. Order your CRL American
