Product Details
- For Use with Top and Bottom Inserts
- High Density Cast Body
- Gaskets for Use with 3/8" or 1/2" (10 or 12 mm) Glass
- 1NT303 for top
- 1NT301 for bottom Glass Fabrication Required:
- One Corner Notch Includes:
- Cover Plates (Finish of Your Choice)
- Gaskets for 3/8" or 1/2" (10 or 12 mm)
- Template and Instructions Product Warning: These fittings are not for use with Laminated Glass. The following guidelines are to be used when making a 1/2" glass door using this hardware: Maximum Height: 102" (2.59 m) Maximum Height: 176 Lbs. (80 kg) Maximum Width: 42" (1.09 m) If the door exceeds any of these limitations, full door rails should be used. Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

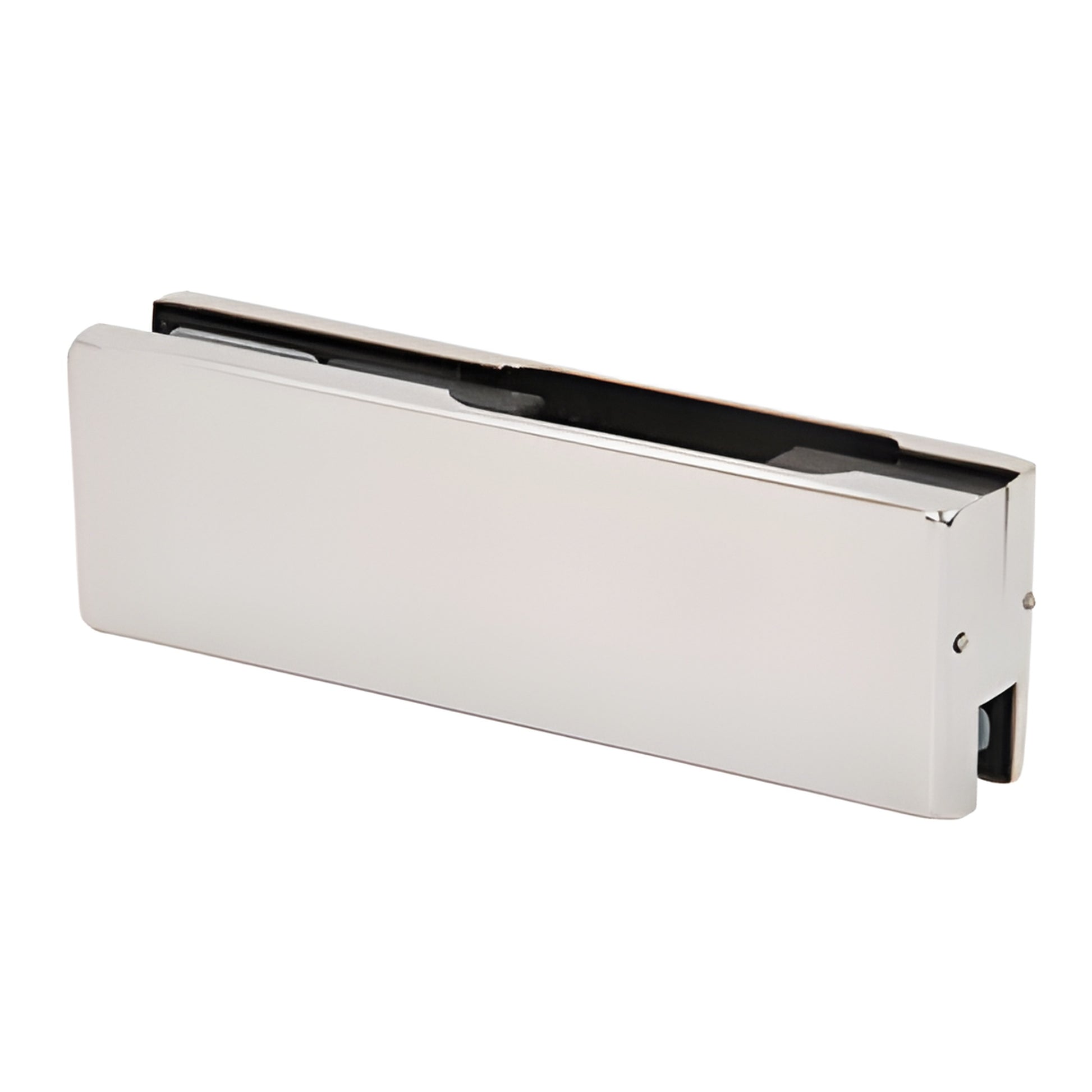

This CRL American T/B Door Patch (Less Insert) will allow you to use the same fitting for either top or bottom by simply installing the appropriate insert.
For Use with Top and Bottom Inserts:
1NT303 for top 1NT301 for bottom
Glass Fabrication Required:
One Corner Notch
Includes:
High Density Cast Body
Cover Plates (Finish of Your Choice)
Gaskets for 3/8" or 1/2" (10 or 12 mm)
Template and Instructions
Product Warning:
These fittings are not for use with Laminated Glass.
The following guidelines are to be used when making a 1/2" glass door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Height: 176 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
Stainless Steel Advisory:Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
