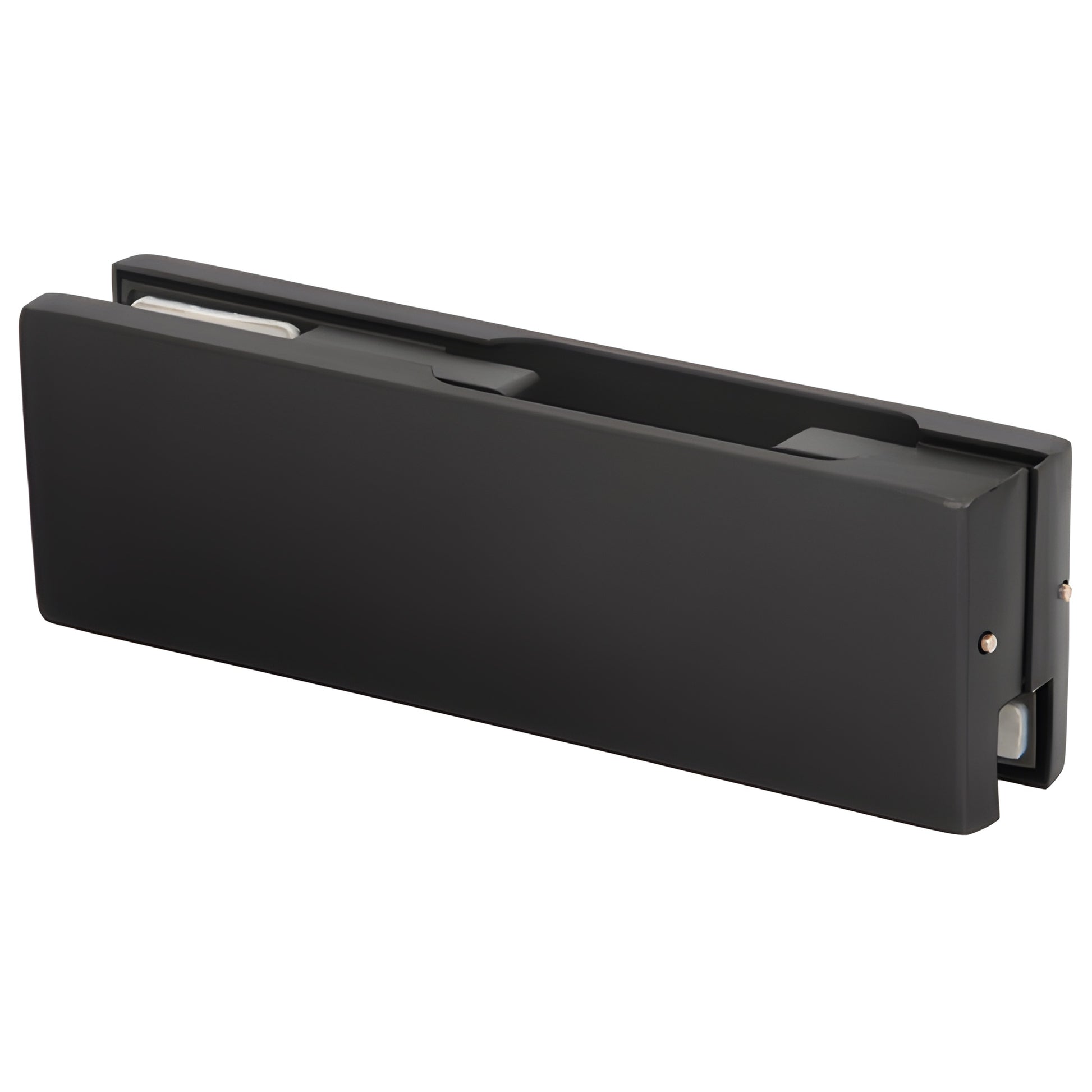

• Matte black CRL top/bottom door patch fitting (AMR201MBL) for 3/8-1/2" glass, cast body, no insert.
1 1

CRL

CRL Matte Black Top/Bottom Glass Patch Fitting - No Insert

CRL Matte Black Top/Bottom Glass Patch Fitting - No Insert

$61.38 CAD
$61.38 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# AMR201MBL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Matte Black
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Type
Top or Bottom
With Insert
No

Overview

  • For use with top and bottom inserts
  • High-density cast body
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) glass

CRL American T/B Door Patch (Less Insert) — SKU: AMR201MBL

This CRL American top/bottom (T/B) door patch lets you use one fitting for either the top or bottom of a frameless glass door by installing the appropriate insert. Ideal for commercial glass door hardware and patch fitting applications.

  • For use with top and bottom inserts:
    • 1NT303 for top
    • 1NT301 for bottom
  • Glass fabrication required:
    • One corner notch
  • Includes:
    • High-density cast body
    • Cover plates (finish of your choice)
    • Gaskets for 3/8" or 1/2" (10 or 12 mm)
    • Template and instructions

Product warning: These fittings are not for use with laminated glass.

Guidelines for use with 1/2" glass doors using this hardware:

  • Maximum height: 102" (2.59 m)
  • Maximum weight: 176 lbs (80 kg)
  • Maximum width: 42" (1.09 m)

If the door exceeds any of these limitations, full door rails should be used.

Most shipping weights are approximate and have not been verified. If exact weight or shipping cost is required to complete your order, please contact CRL Customer Service prior to submitting your order. Product images are of the actual product or a close representation; colors may vary by monitor.

Need help choosing the right patch fitting for your frameless glass door? Contact us to order SKU AMR201MBL today.
