CRL Brushed Stainless Transom Mounted Connector with Two Reversible Door Stops
Item # PH70BS
$76.72
CAD
Finish (7)
-
Satin Anodized -
Polished Brass -
Brushed Stainless Steel -
Black Bronze Anodized -
Matte Black -
Polished Stainless Steel -
Satin Brass
Overview
| SKU | PH70BS |
|---|---|
| Sold As | 1 Each |
| Finish/Color | Brushed Stainless Steel |
| Glazing Thickness | 3/8 in.,1/2 in. (10 mm,12 mm) |
Description
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Doors Can Swing Either In or Out
- Use Monolithic Tempered Glass

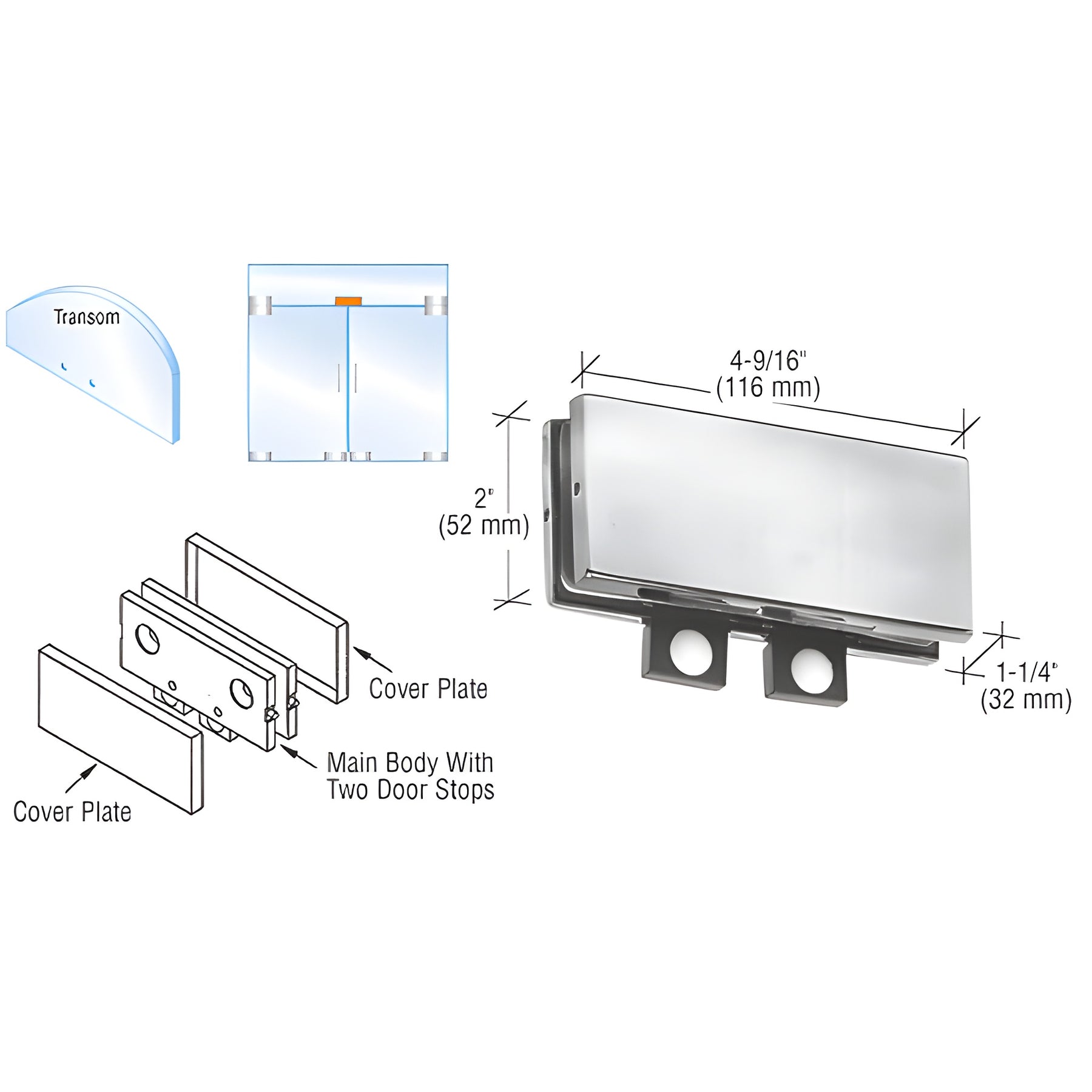

CRL Door Stops can be set for the doors to only open in or out. You can also make it so one door opens in and the other door opens out. The Connector can be used on one lite or two lite transoms, and with the stops removed can be used as a Connector only. When used as Connector only, it is suggested that you turn the fitting around so the notches in the Cover Plates face up, and are not visible.
The connector can be used on one lite or two lite transoms, and with the stops removed, can be used as a Connector only. When used as Connector only, it is suggested that you turn the fitting around so the notches in the Cover Plates face up, and are not visible.
GLASS FABRICATION REQUIRED:
Two 3/4" (19 mm) Diameter Holes
COMES WITH:
Template and Instructions
Product Warning:
NOTE: These Fittings are not for use with laminated glass.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.Specifications
Templates
Cleaning & Maintenance
