CRL Satin Anodized Transom Connector with 2 Reversible Door Stops
Item# PH70A
Shipping Weight: 9.92 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.92 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in.,1/2 in. (10 mm,12 mm)
- For 3/8" or 1/2" (10 or 12 mm) glass (monolithic tempered glass only)
- Doors can swing in, out, or one in / one out
- Requires glass fabrication: two 3/4" (19 mm) diameter holes

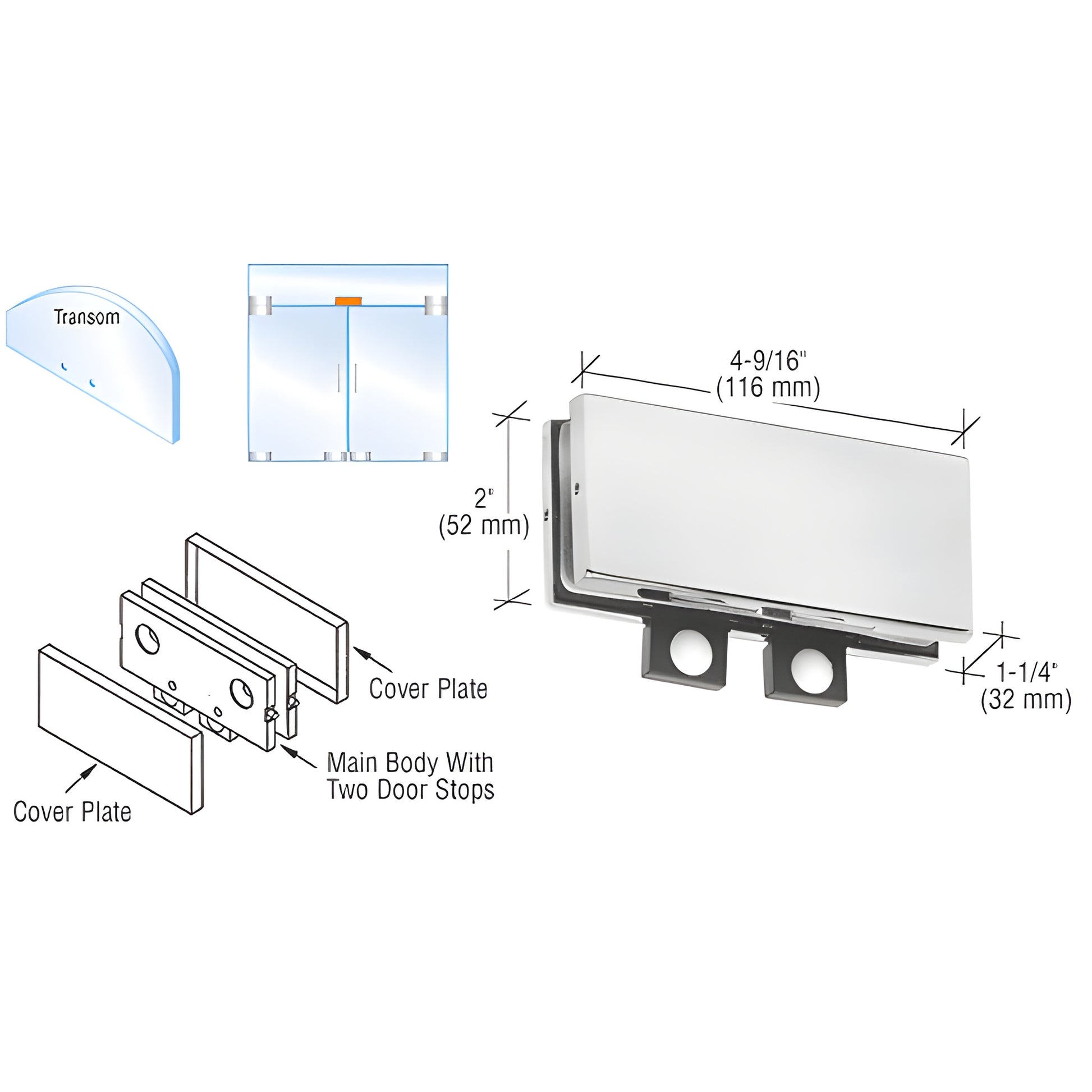

CRL Door Stops & Connector (SKU: PH70A)
The CRL PH70A connector and door stops accommodate 3/8" or 1/2" monolithic tempered glass transoms. Set the stops so doors open only in or only out, or configure one door to open in and the other to open out. Remove the stops to use the unit as a Connector-only fitting; when used this way, rotate the fitting so the notches in the cover plates face up and are not visible.
Comes with:
Template and instructions
Product Warning:
NOTE: These fittings are not for use with laminated glass.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors can vary depending on your monitor.
Order the CRL PH70A connector for reliable tempered glass transom connections—contact us or add to cart to get started.
Templates
