CRL Brushed Stainless Wall Mount Transom Curved Patch

• Works with 2-11/16" (68 mm) Pivot Setback Door Patch Fittings
• For 3/8" or 1/2" (10 or 12 mm) Glass

The

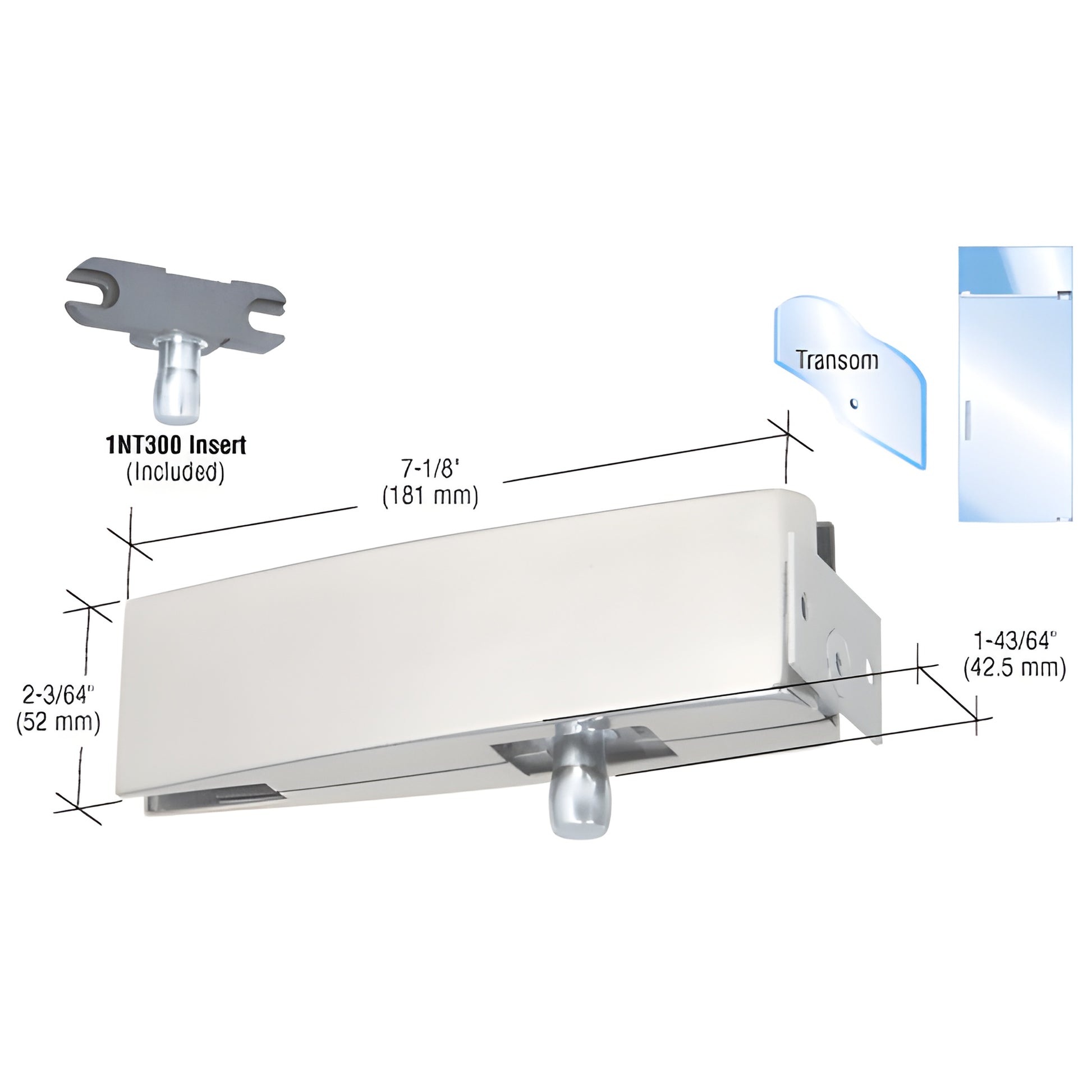

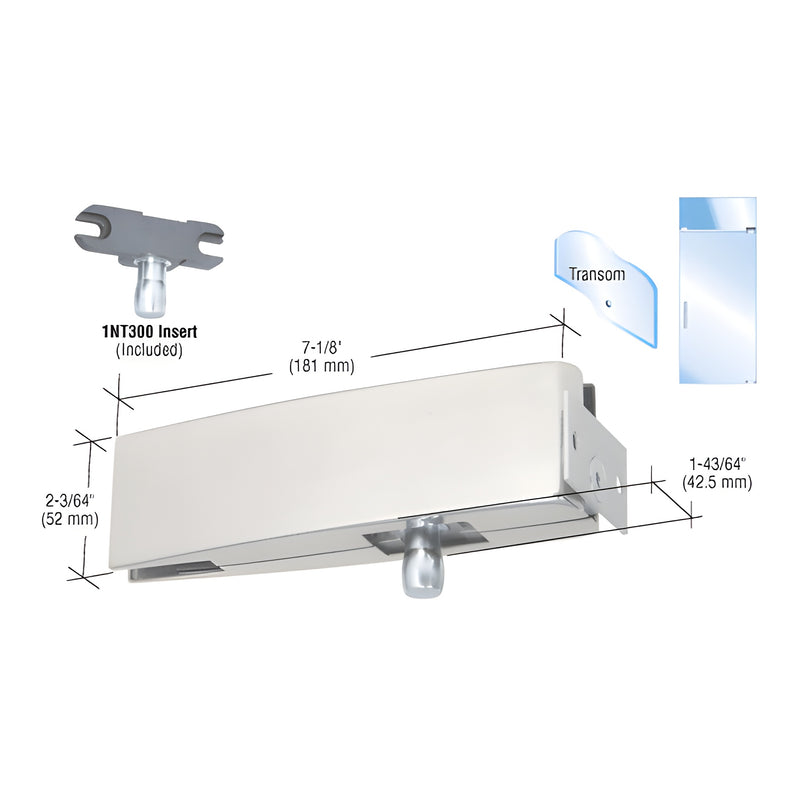

CRL Wall Mount Transom Curved Patch

is used to support a transom from a side jamb. It comes with a 1NT300 Top Insert for door mounting. The insert can be removed on the non-hinged side, allowing for a double swinging door. A 1NT306 Transom Patch Door Stop Insert can be used to create a one way door.

One 3/4" (19 mm) Diameter

Hole and Corner Notch

Template and Instructions

Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
