CRL Z-Series Brushed Stainless Glass Clamp, Radius Base, 1/4" & 5/16"

• For 1/4" and 5/16" (6 and 8 mm) glass
• Use monolithic tempered glass
• Designed for mezzanines, partitions, railings and windbreaks
• Replacement gaskets available: Cat. No. Z14SG
• Steel pin included for additional glass support
• Custom painted finishes available upon request

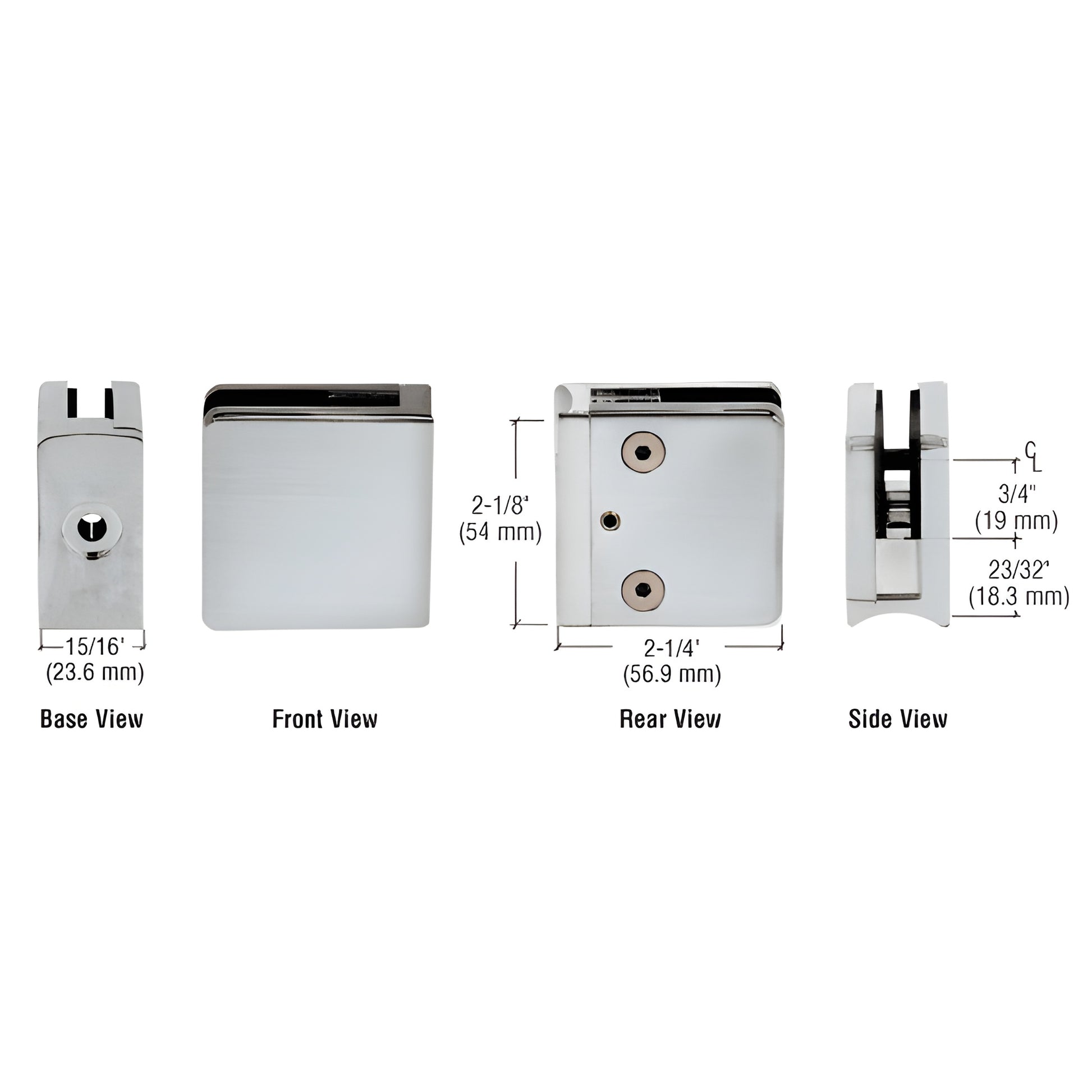

CRL Z-Series Square Type Radius Base Glass Clamp (SKU: Z706BS) — a compact radius-base glass clamp engineered for 2" (51 mm) diameter round tubing. Fits 1/4"–5/16" (6–8 mm) glass; constructed in zinc or stainless steel for interior and exterior railing, partition and windbreak installations. Ideal as a tempered glass clamp for mezzanine and railing projects.

Installation notes: For attaching the Z-clamp to thin-wall tubing (<1/8"), use CRL ZB0LT socket head cap bolt and ZRNUT rivet-nut. Drill a 17/32" (13.5 mm) hole and install the rivet-nut with the 34604 heavy-duty thread insert tool and 34618 5/16" mandrel and nosepiece. If using the included steel pin for extra glass support, drill the required hole in the glass (see glass fabrication below).

NOTE: A 1/2" (12 mm) hole is required in the glass when using the steel pin for additional support on 1/4"–3/8" panels.

SPECIFICATIONS

• Glass thickness: 1/4" and 5/16" (6 and 8 mm)
• Base design: Radius
• For use with: 2" (51 mm) diameter round tubing only
• Material: Zinc or stainless steel. Stainless steel or powder-painted zinc recommended for exterior durability
• Glass fabrication (pin holes):
  • For 1/4" (6 mm), 5/16" (8 mm) and 3/8" (10 mm) glass: 1/2" (12 mm) diameter hole required if using the steel pin
  • For 1/2" (12 mm) glass: 9/16" (14 mm) diameter hole required if using the steel pin
• Includes: Rubber gaskets and steel pin with grommet
• Replacement hardware: CRL ZCS5X15SS replacement screws

Product warning: For interior and exterior applications, CRL recommends pinning each glass panel when the panel is not supported from the bottom edge to prevent slippage. Rubber gaskets and steel pins are provided with each clamp.
