- Our Most Popular Back-to-Back Towel Bar Series
- Decorative Metal Washers Also Serve to Cover Any Defect in Hole in Glass
- 3/4" (19 mm) Diameter Heavy Brass Tubing (1.5 mil Thick)
- Custom Finishes Available
- Use Monolithic Tempered Glass
- 3/4" (19 mm) diameter brass tubing (1.5 mil thick)
- 1-1/4" (32 mm) diameter metal washers
- Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
- Hole Diameter Required: 1/2" (12 mm) Center-to-Center Hole Spacing:
- 12" Towel Bar = 12" (305 mm)
- 18" Towel Bar = 18" (457 mm)
- 24" Towel Bar = 24" (610 mm)
- 30" Towel Bar = 30" (762 mm) Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
The

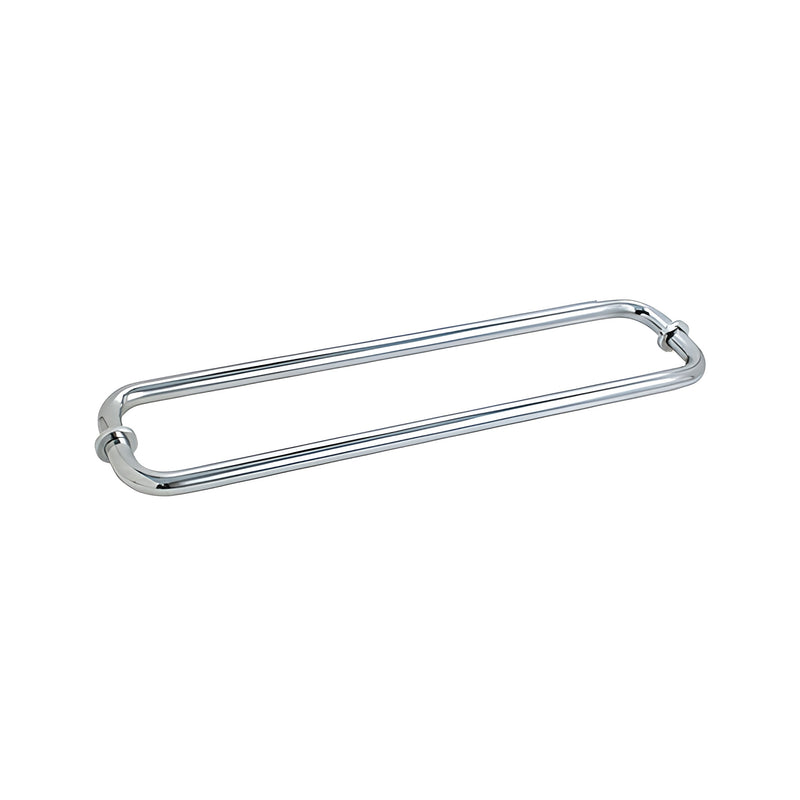

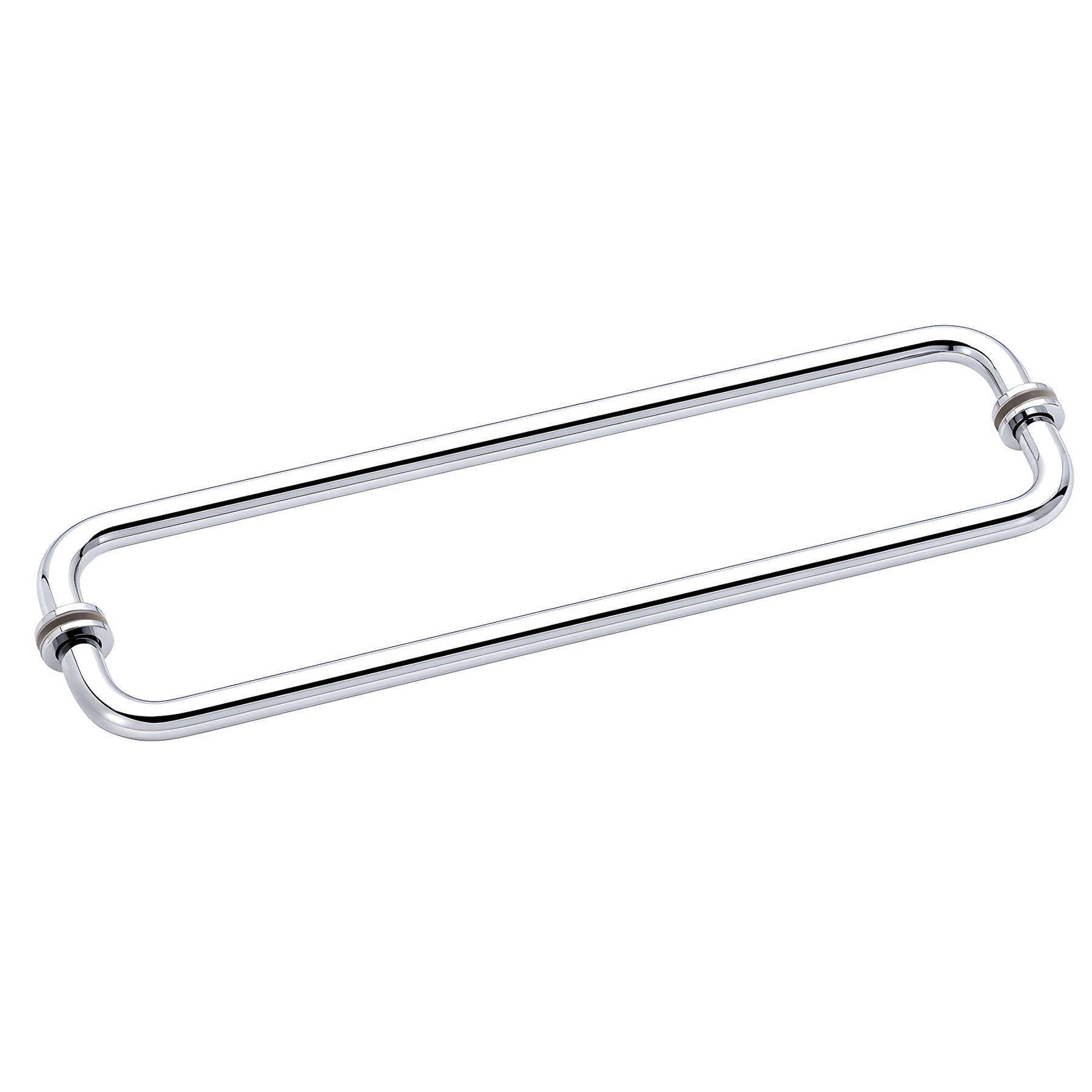

CRL BM Series Back-to-Back Tubular Handles with Metal Washers
are constructed of 1.5 mil thick heavy brass tubing. These handles include decorative metal washers. Standard plastic washers are included to protect against glass-to-metal contact. Consists of one pull for each side of the door (back-to-back). The BM Series Pull Handles offer several stock finishes, with custom finishes available upon request by contacting
CRL Technical Sales
.
Specifications
3/4" (19 mm) diameter brass tubing (1.5 mil thick)
1-1/4" (32 mm) diameter metal washers
Glass Thickness Range
1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required: 1/2" (12 mm)
Center-to-Center Hole Spacing
12" Towel Bar = 12" (305 mm)
18" Towel Bar = 18" (457 mm)
24" Towel Bar = 24" (610 mm)
30" Towel Bar = 30" (762 mm)
