Product Details
- For Cabinets with Double Swinging Doors
- Installation Requires Drilling 3/4" (19 mm) Hole in Glass
- Chrome or Brass Finishes
- For Bottom or Top installation only

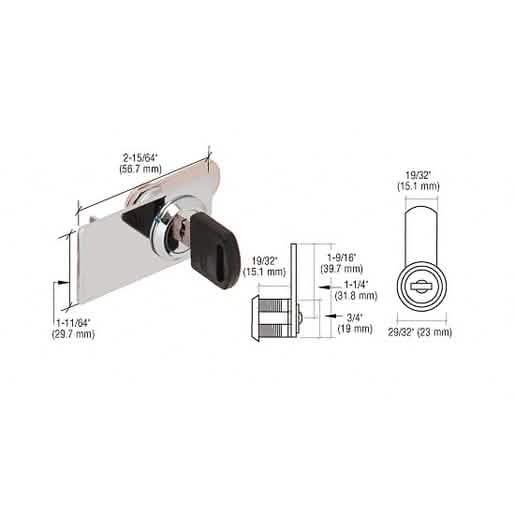

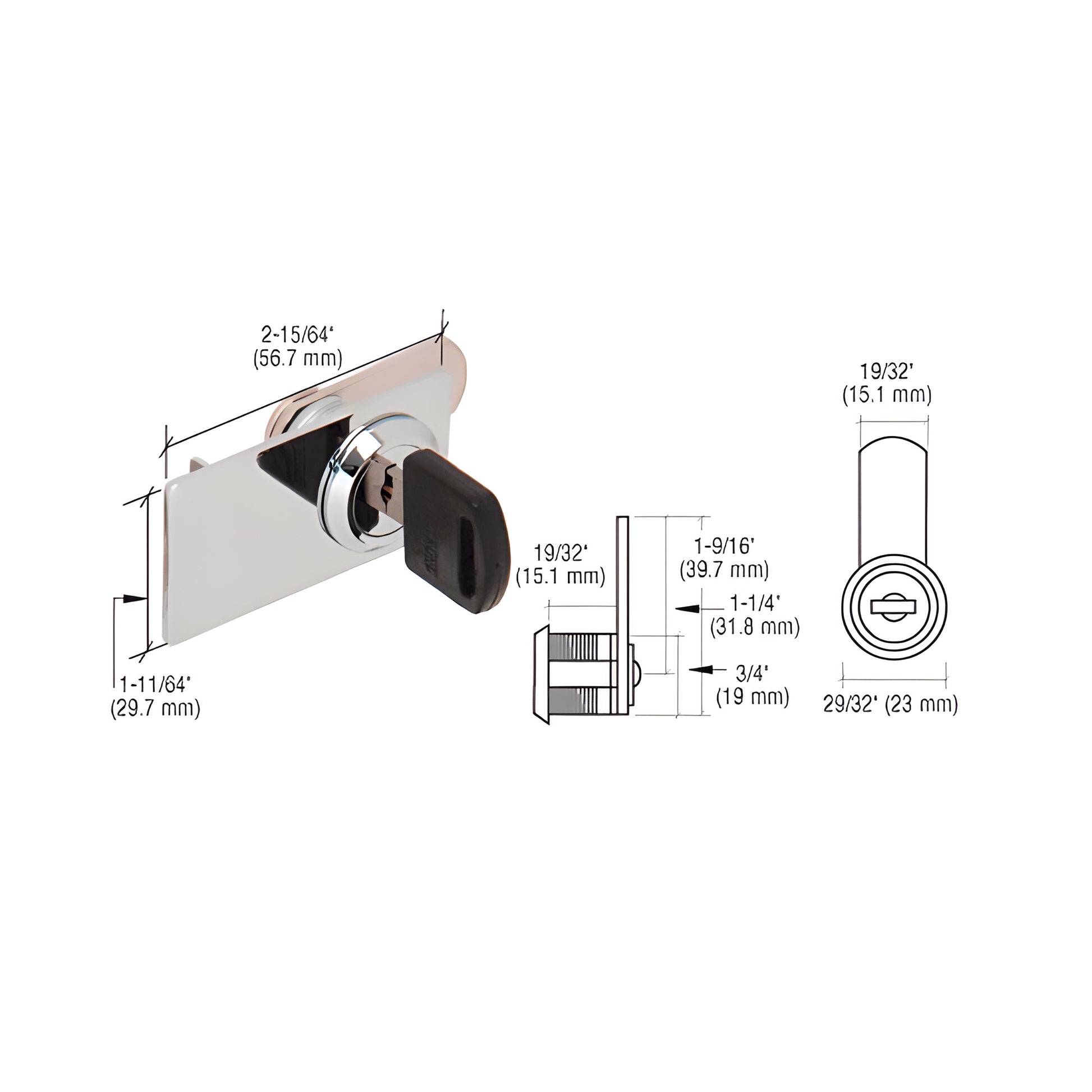

CRL Plated Locks for Double Swinging Glass Doors in Cabinets are available in both chrome and brass plated finishes. Easy-to-install after drilling a 3/4" (19 mm) hole, these attractive cam style Locks will bring added security to cabinets with double glass doors up to 1/4" (6 mm) thick. Locks come complete with two keys, front plate, strike plate, straight cam, washer, and hex nut. Customers needing extra blank keys can order Cat. No. LKEY.
Product Warning:
Bottom or Top installation only. For maximum efficiency both doors should have a stop inside the cabinet. 3/4" HOLE SHOULD BE BETWEEN 19/32" MIN. TO 1-1/4" MAX. FROM BOTTOM/TOP OF DOOR TO CENTER OF HOLE.
