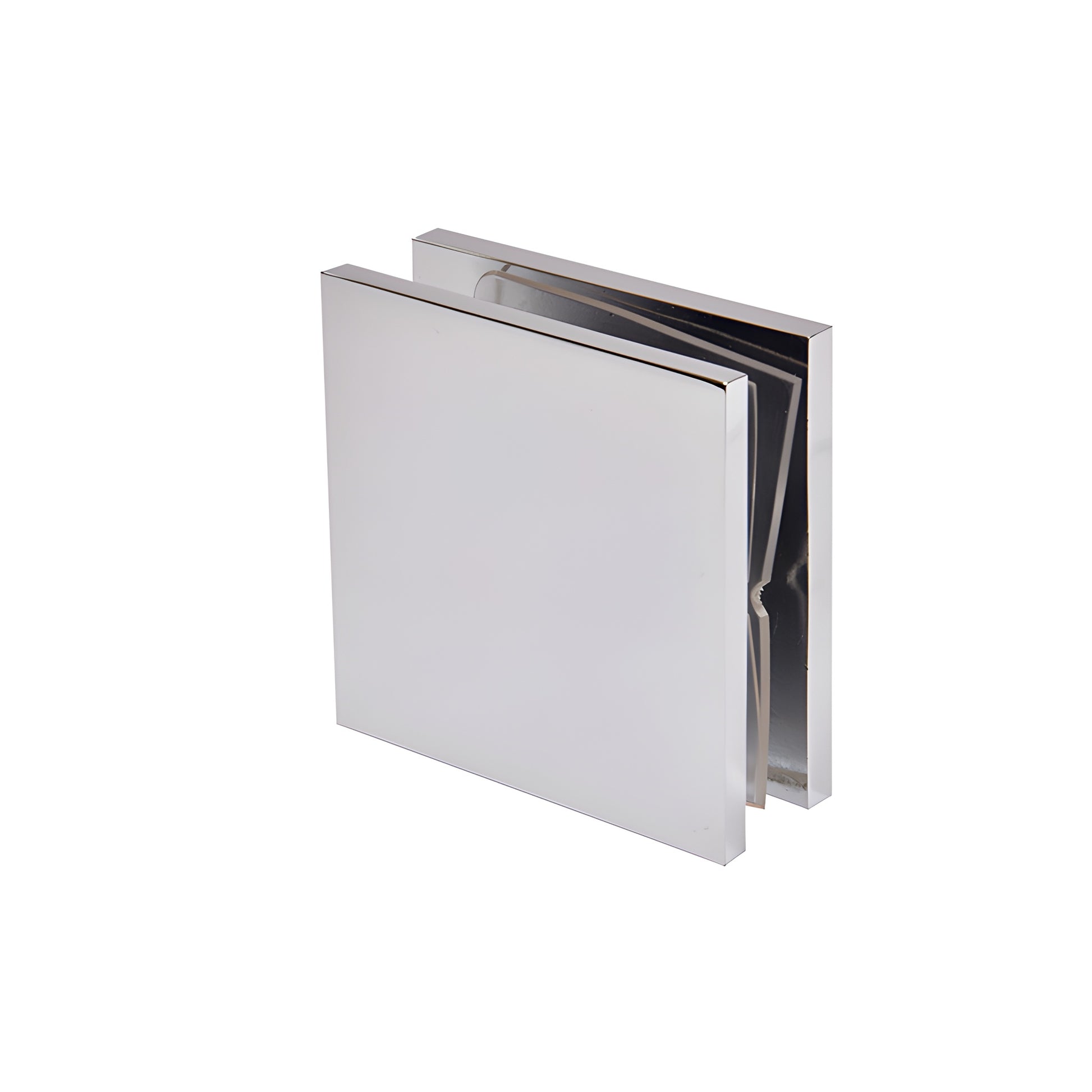

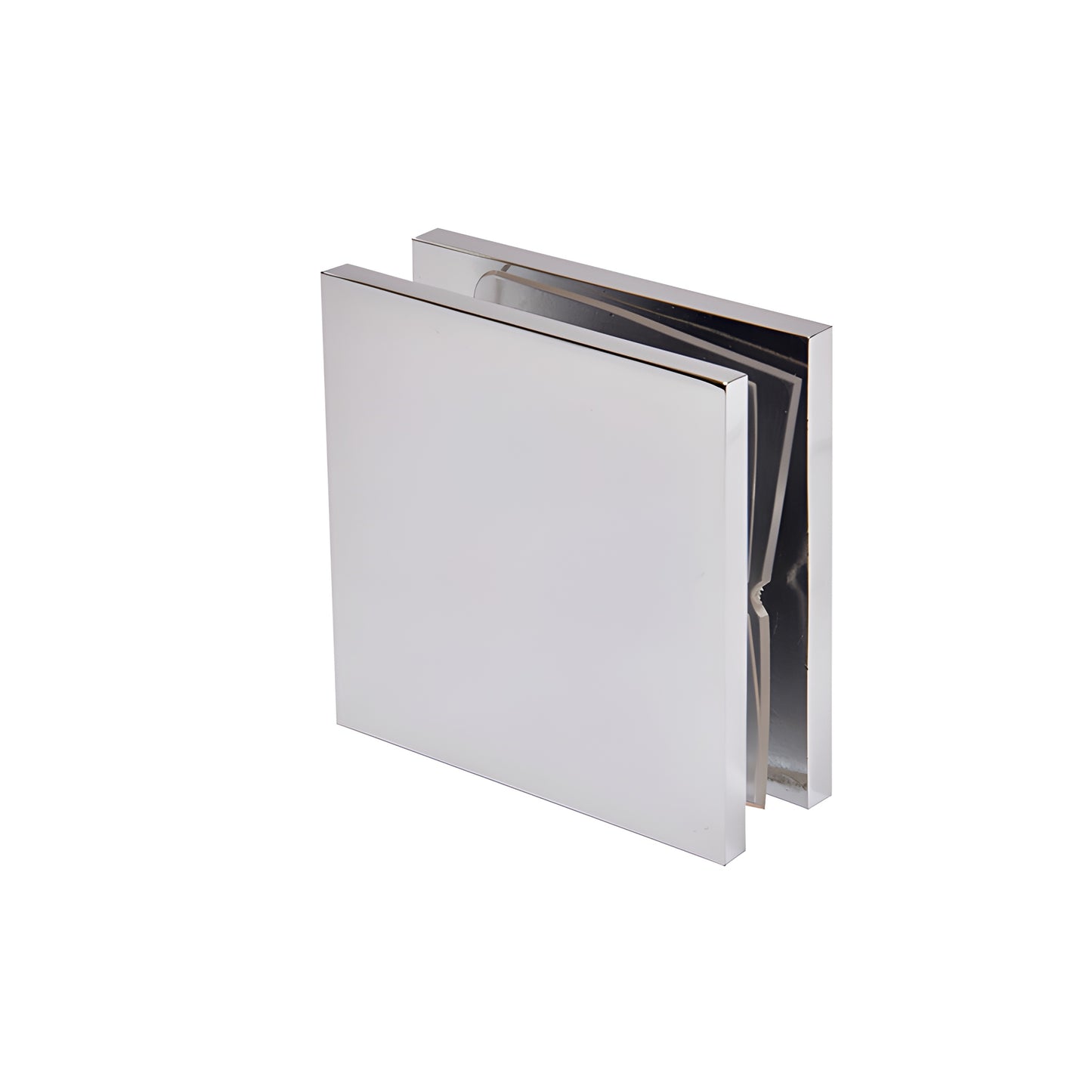

CRL Chrome Square Hole-in-Glass U-Clamp Glass Clamp for Fixed Panels
CRL Chrome Square Hole-in-Glass U-Clamp Glass Clamp for Fixed Panels
Regular price
$19.50 CAD
Regular price
Sale price
$19.50 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SCU48CH
Shipping Weight: 7.84 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 7.84 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Squared
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Polished Chrome
Glazing Thickness
5/16 in. (8 mm)
Material
Brass
Mounting Type
Wall Mount
Overview
- For 5/16" (8 mm) glass
- Glass fabrication: 5/8" or 3/4" (16 or 19 mm) hole in panel
- Used to secure fixed panels of glass for frameless shower enclosures
- Solid brass construction for corrosion resistance
- Preferred alternative to traditional U-channel for a cleaner "all-glass" look
- Glass fabrication required to accommodate clamps
- Use monolithic tempered glass

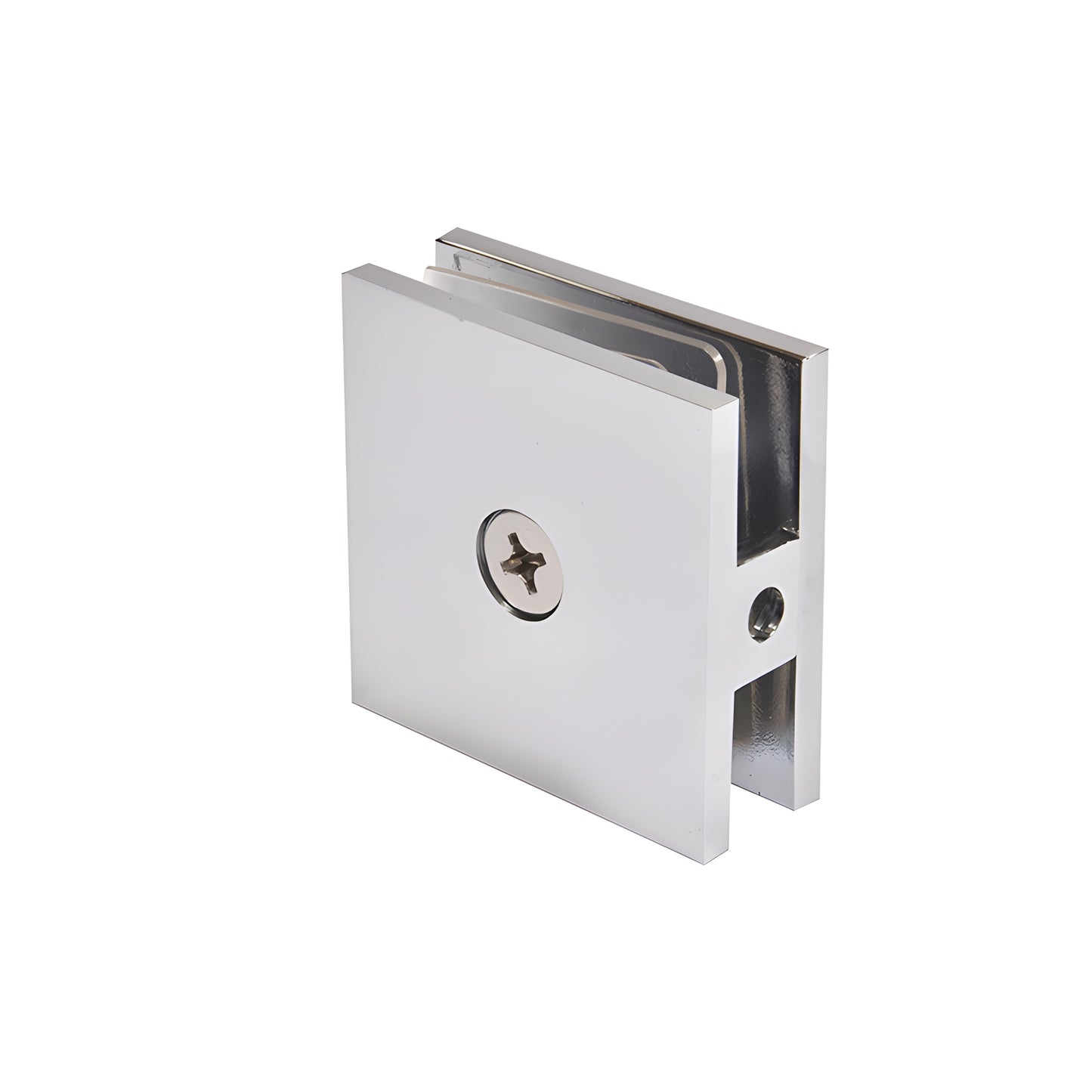

CRL Square Wall Mount Clamp (Hole-in-Glass Style) — SKU: SCU48CH mount directly to the wall, ceiling, or floor to secure vertical fixed glass panels in frameless shower enclosures and commercial storefronts. Clearance between the glass and wall is 3/16" (5 mm). Clear silicone can be used to provide a clean, water-tight seal.
SPECIFICATIONS:
Materials: Solid brass
Glass Thickness Range: 5/16" (8 mm)
Glass Fabrication Required: SGCU1 requires notch; SCU4, SGC037, and SGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets
Order the SCU48CH solid brass square wall mount clamp today to achieve a sleek, all-glass appearance in your frameless shower or glass partition installation.
