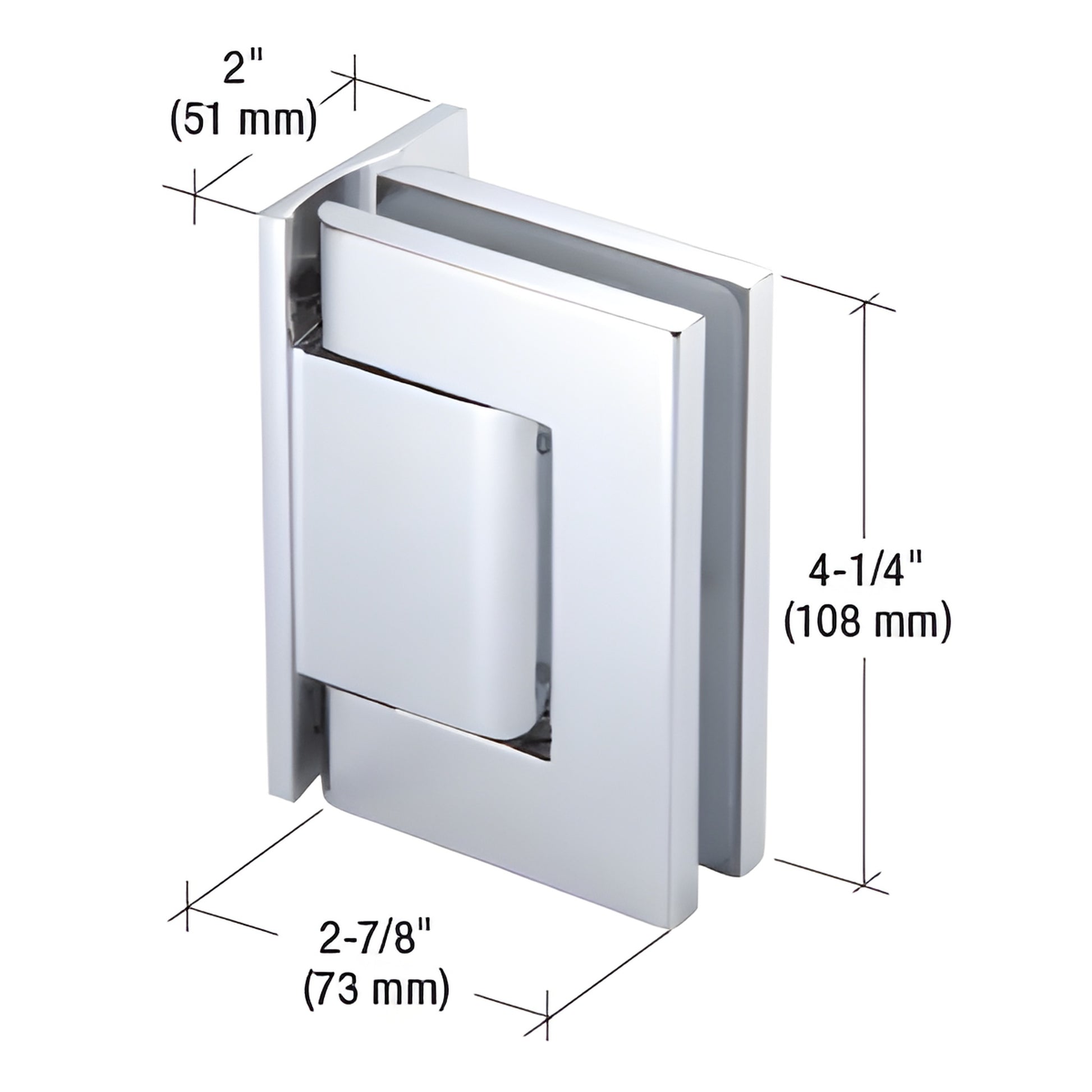

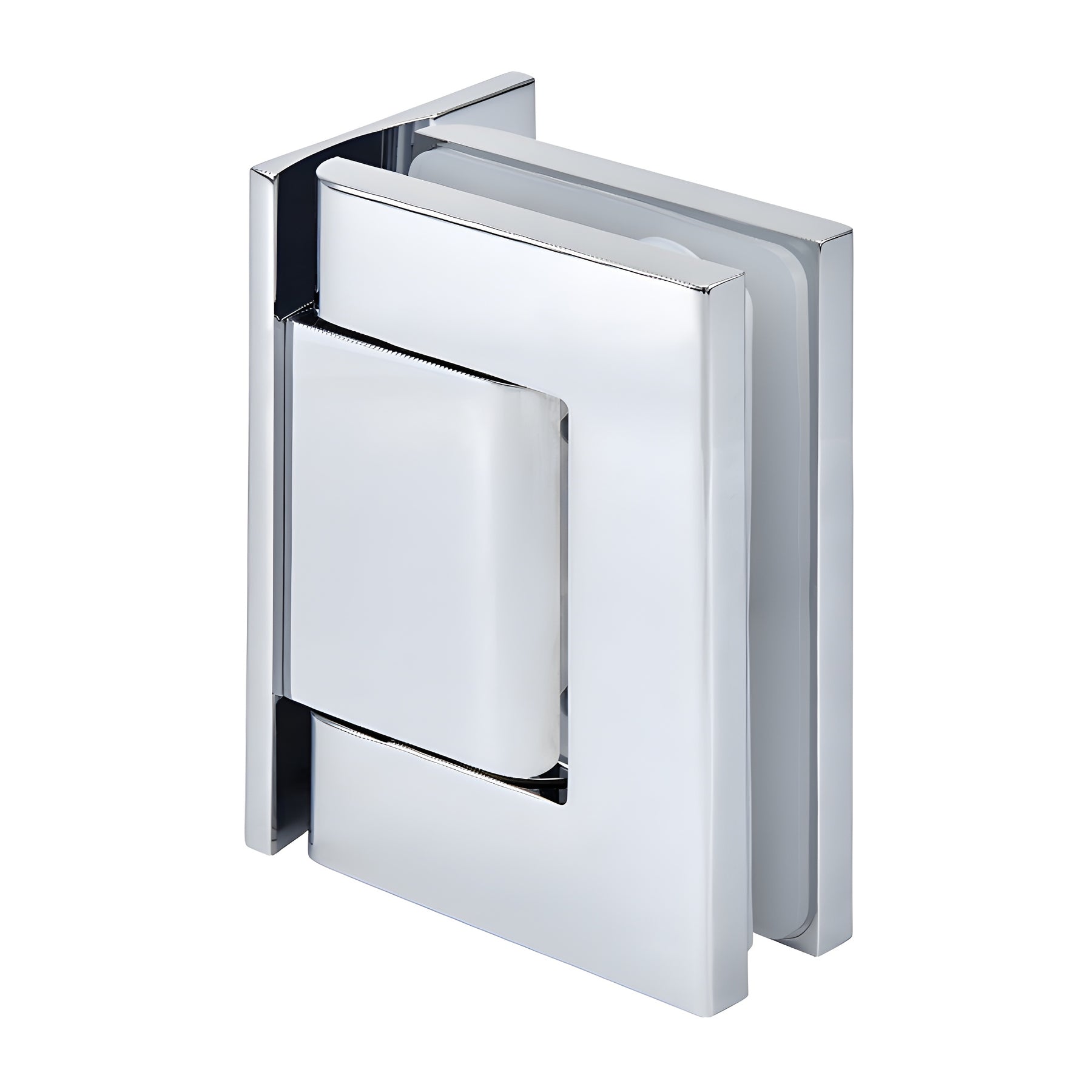

CRL Vernon Dynamic Chrome Offset Wall-Mount Backplate Hinge

• For self-closing glass doors 5/16" to 9/16" (8 to 13.52 mm) thick
• Aluminum body — finishes: Brite Chrome, Satin Nickel, Satin Anodized
• Adjustable closing speed via control valve
• Compact alternative to floor closers and patch fittings for all-glass installations

The CRL Oil Dynamic Full Back Plate Wall Mount Hinge swings both in and out a full 90º with a positive stop at 0º. Designed for interior self-closing glass doors up to 39" (1 m) wide, two hinges support a maximum combined weight of 220 lbs (100 kg). The ambidextrous oil-damped mechanism blends automatic mechanical hinge convenience with hydraulic door closer performance — ideal for retrofitting an all-glass door without floor or overhead closers.

Use two Oil Dynamic Hinges for a single glass door (do not use more than two). The hinge includes a control valve to set the desired closing speed and snap-in molded gaskets for 5/16" to 9/16" glass. Subjected to over 1 million test cycles for proven durability.

SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90º inwards and outwards (except H8060 model, one-way)
Closing Type: Automatic closing from 0º to 80º
Cut-Out Glass Fabrication Required
Includes: Snap-in molded gaskets for 5/16" to 9/16" (8 to 13.52 mm) glass
Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 220 lbs. (100 kg)

Product Warning:
Do not use more than two hinges on one door. For use beyond intended applications, obtain approval from CRL Technical Sales. Use only the included template — cut-out dimensions may differ from other brands.

SKU: H8211BTCH

Order the Oil Dynamic Full Back Plate Wall Mount Hinge (H8211BTCH) for a reliable, space-saving solution to self-closing interior glass doors — add to cart or contact us
