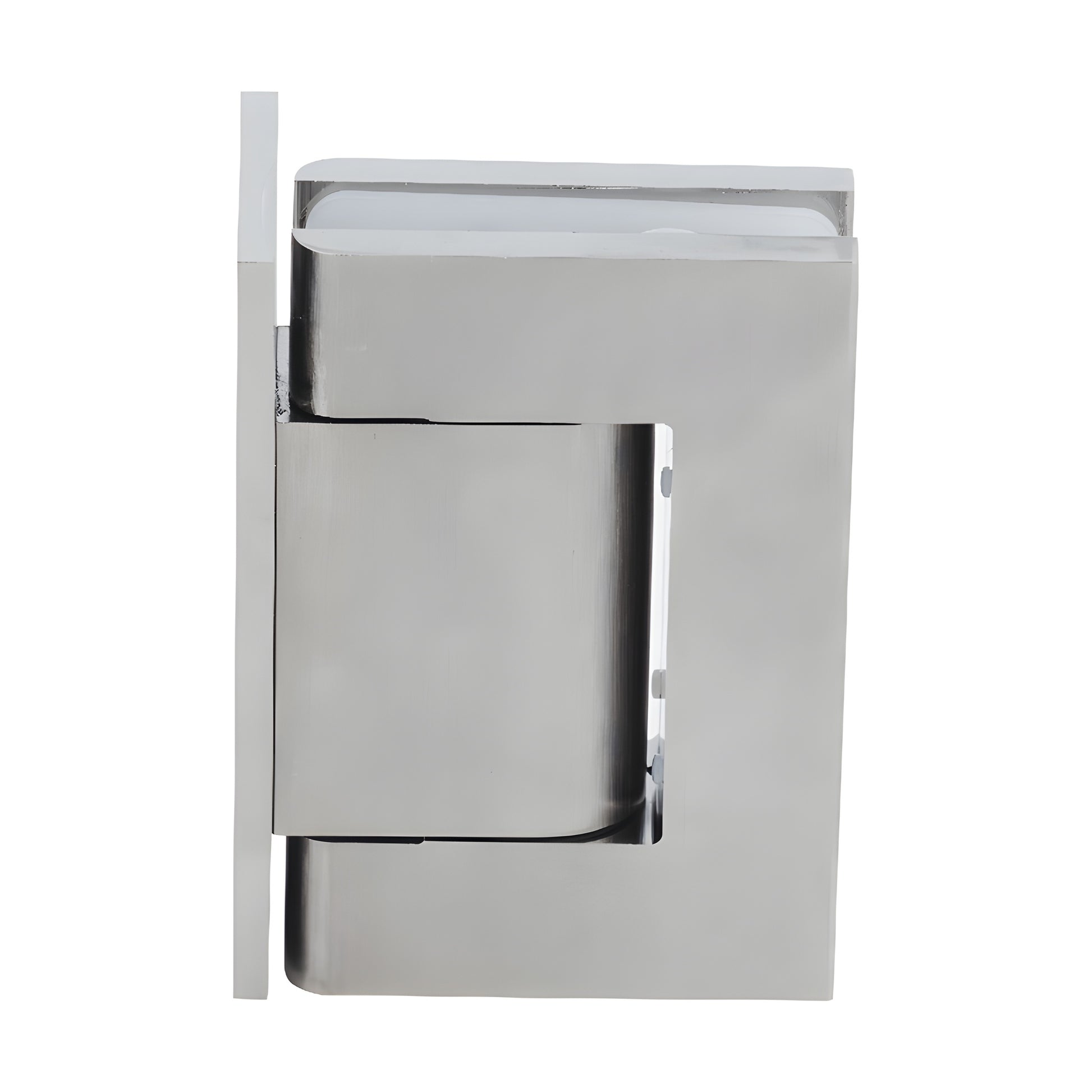

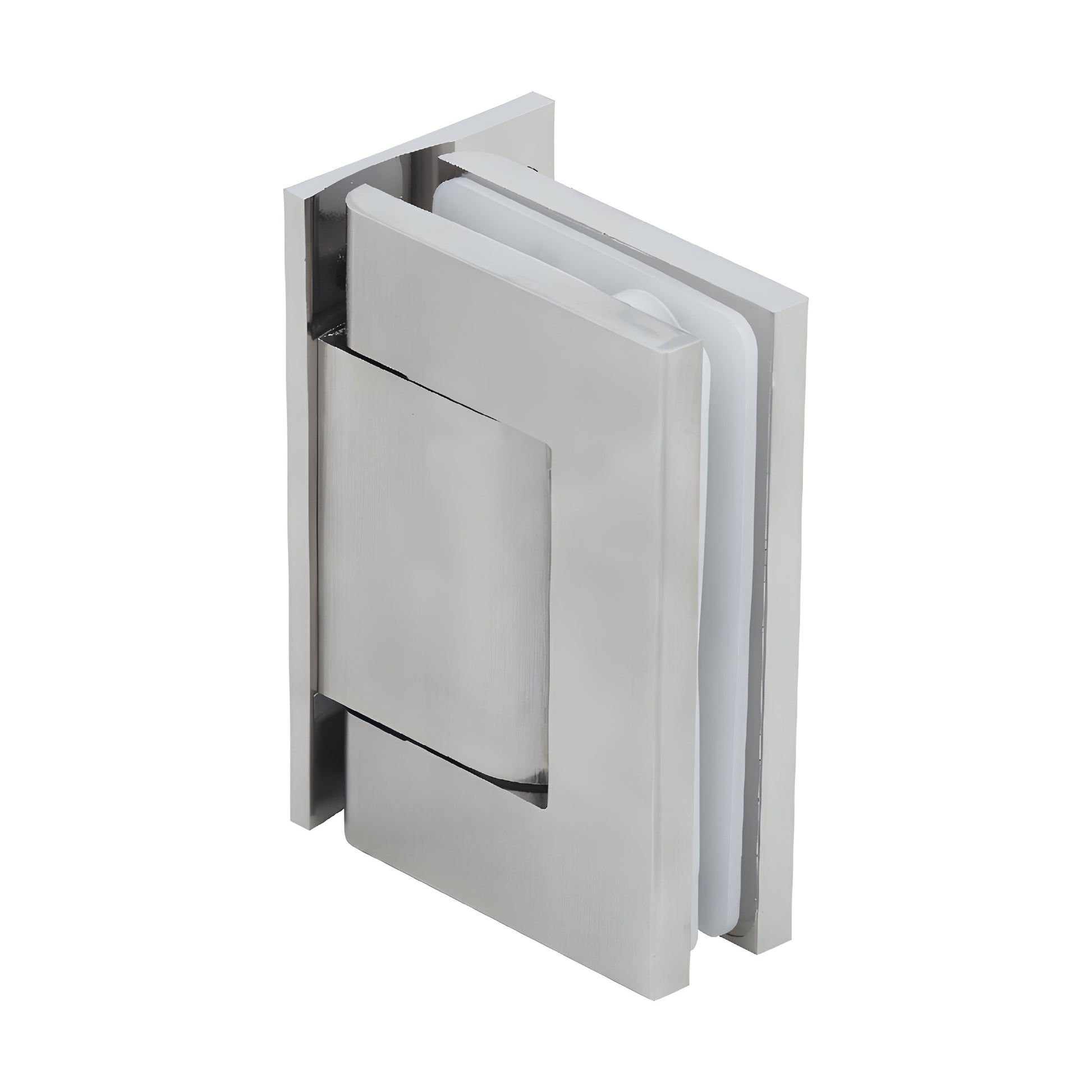

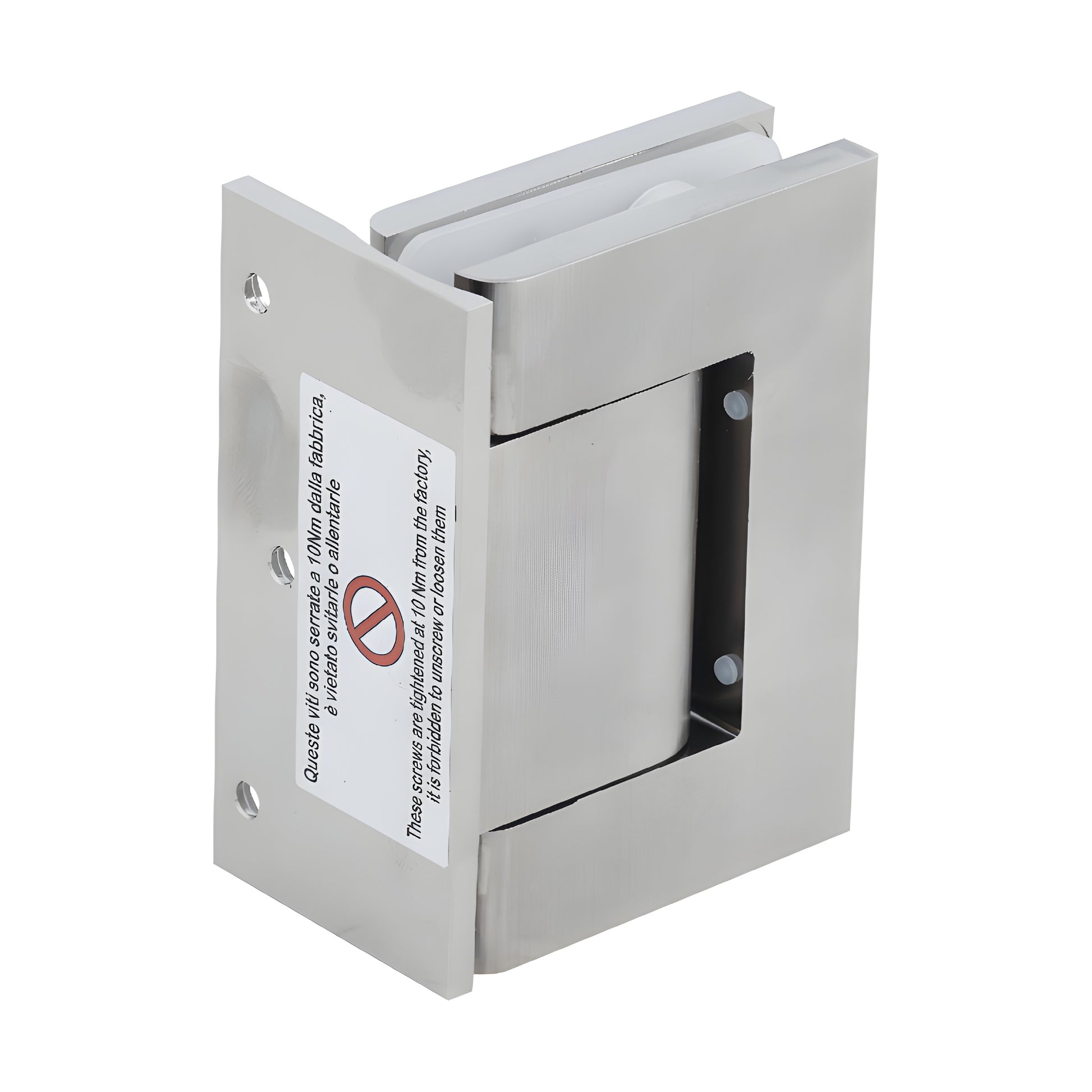

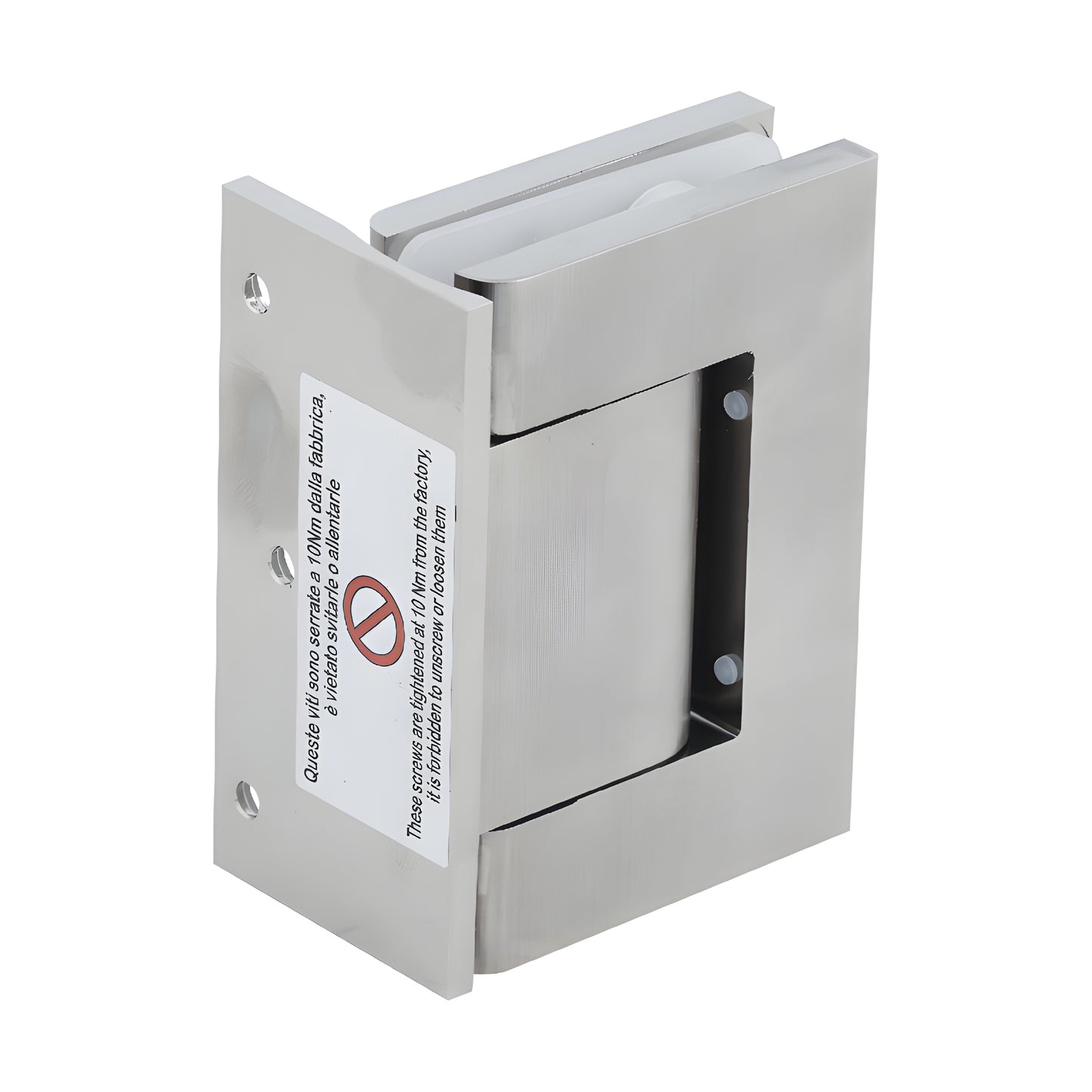

CRL Vernon Oil Dynamic Satin Nickel Wall-Mount Offset Backplate Hinge

• For self-closing glass doors 5/16" to 9/16" (8 to 13.52 mm) thick
• Aluminum body — finishes: Brite Chrome, Satin Nickel, Satin Anodized
• Adjustable closing speed via control valve
• Great alternative to floor closers and patch fittings for retrofit or all-glass installations

The CRL Oil Dynamic Full Back Plate Wall Mount Hinge (SKU H8211BTSN) is a self-closing glass door hinge designed for interior applications. It swings in and out a full 90° with a 0° stop and offers adjustable closing speed. Intended for single doors up to 39" (1 m) wide; maximum capacity using two hinges is 220 lbs (100 kg). Ideal as a wall-mount alternative to floor-mounted or overhead closers when installing all-glass doors without extensive retrofitting.

The Oil Dynamic Hinge blends mechanical hinge durability with hydraulic control to provide reliable automatic closing for glass doors. When properly mounted, two hinges will support 5/16" to 9/16" (8 to 13.52 mm) glass doors up to 39" (1 m) wide and up to 220 lbs (100 kg). The hinge is ambidextrous and includes a control valve to fine-tune closing speed. Available in configurations for Wall Mount and Glass-to-Glass applications and tested for long service life (over 1 million cycles).

SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90° inwards and outwards (except H8060 model — one-way)
Closing Type: Automatic closing from 0° to 80°
Cut-Out Glass Fabrication Required
Includes: Snap-in molded gaskets for 5/16" to 9/16" (8 to 13.52 mm) glass
Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 220 lbs. (100 kg)

Product Warning:
Do not use more than two hinges on one door. For uses other than intended, obtain approval from CRL Technical Sales. Use only the included template—CRL cut-out dimensions may differ from other brands.

SKU H8211BTSN — Order the Oil Dynamic wall mount hinge for reliable, adjustable self-closing glass
