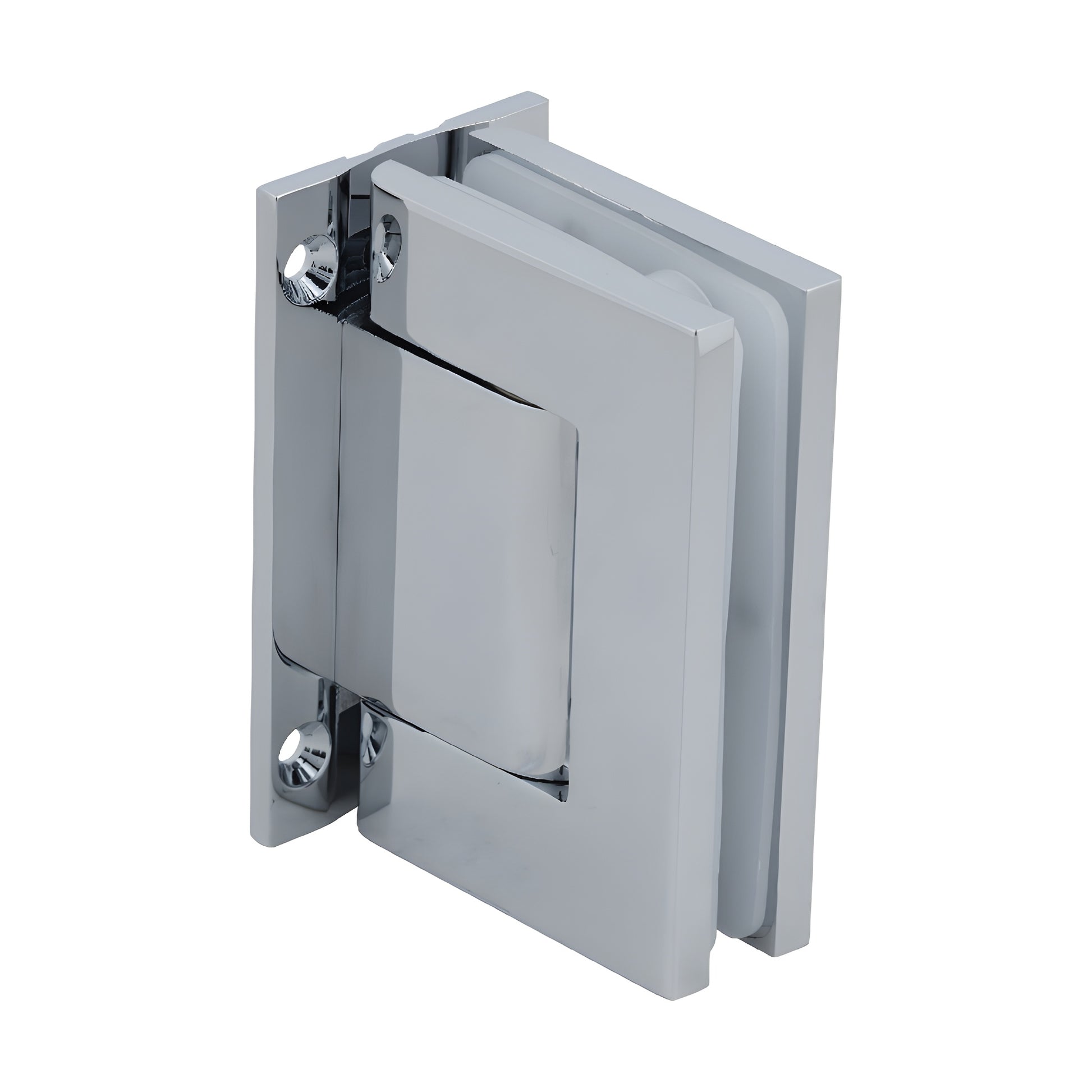

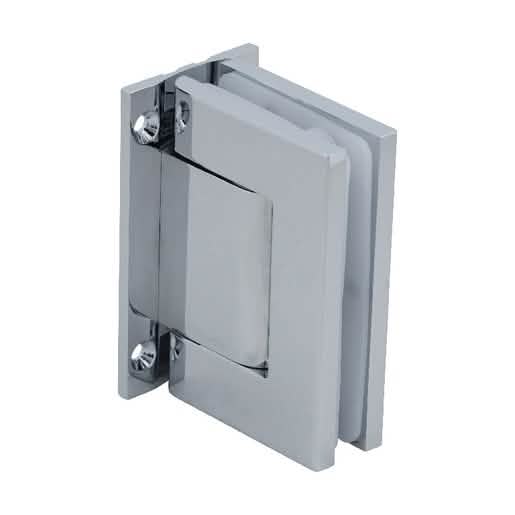

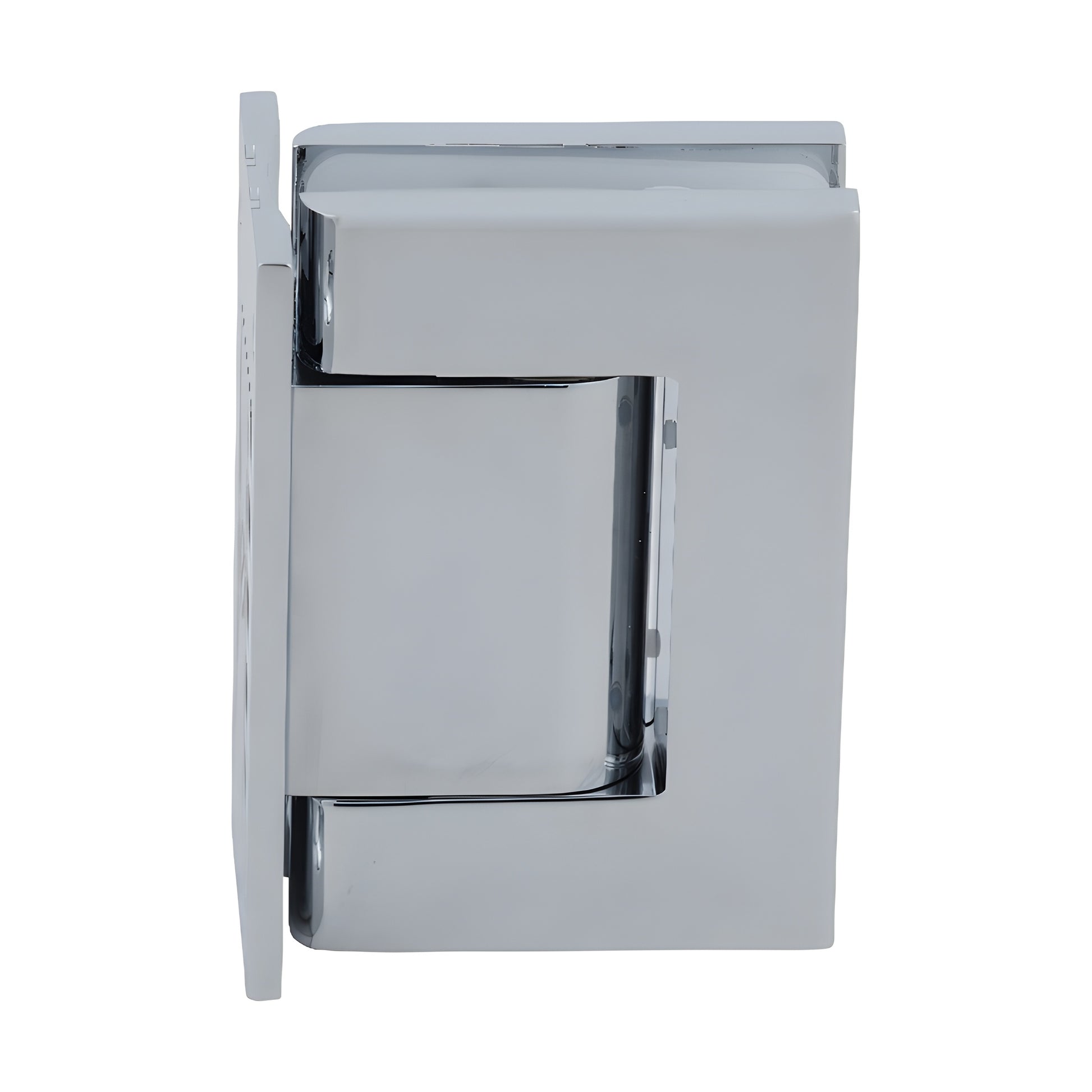

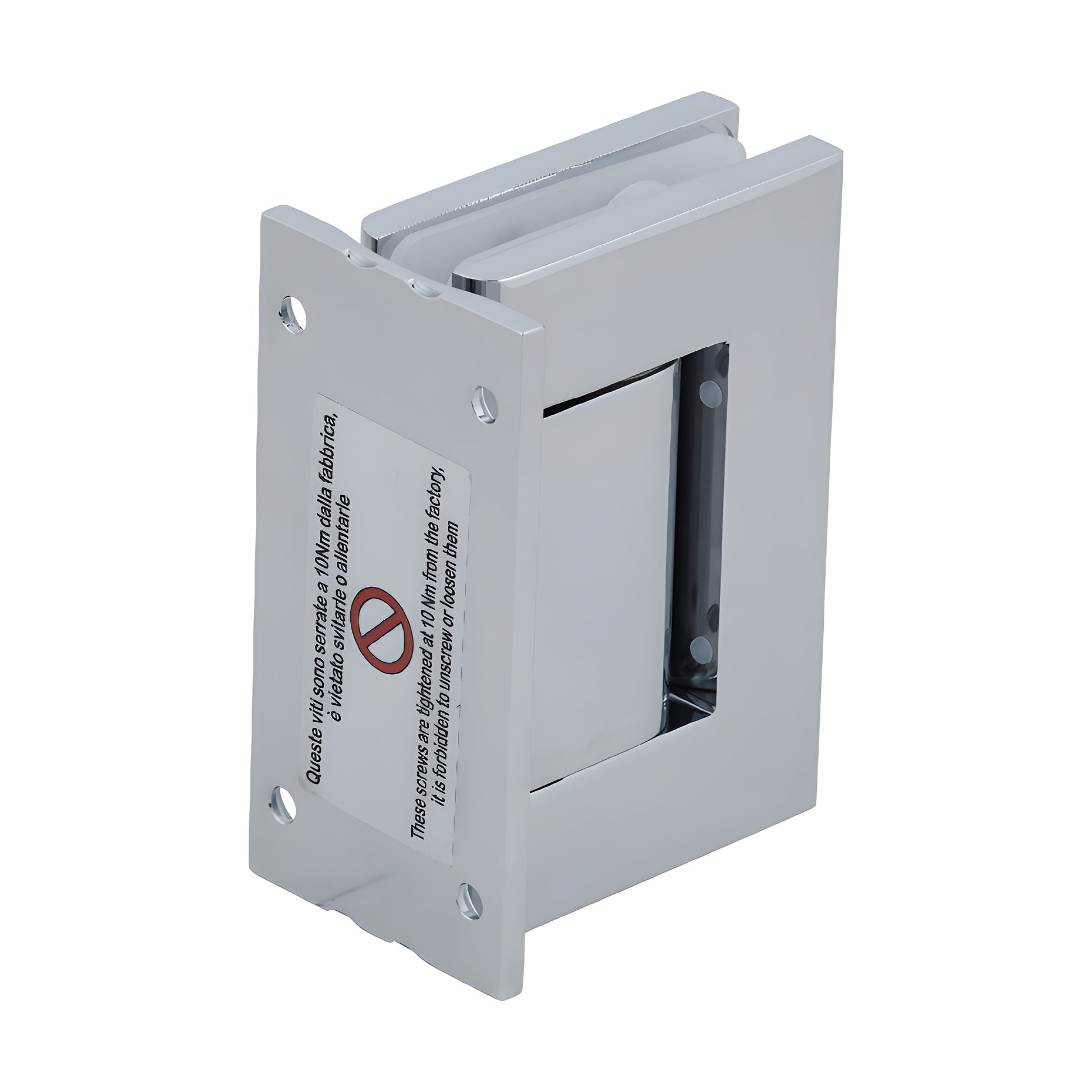

CRL Bright Chrome Vernon Oil Dynamic Wall-Mount Full Back-Plate Hinge

• For self-closing glass doors 5/16" to 9/16" (8 to 13.52 mm)
• Designed for interior doors in humid environments and high temperatures (up to 212°F / 100°C)
• Aluminum body available in Brite Chrome, Brushed Satin, and Satin Anodized finishes
• Adjustable closing speed with positive stops at 0° and 90°
• Excellent alternative to floor closers and patch fittings for all-glass retrofit installations

CRL Oil Dynamic Full Back Plate Wall Mount Hinge (SKU: H8010BTCH) swings in and out a full 90° with positive stops at 0°, +90° and −90°. The oil-dynamic mechanism combines automatic mechanical hinge action with hydraulic control to deliver reliable self-closing performance for steam rooms, Turkish baths, shower doors, and other humid interior applications. Adjustable closing speed and ambidextrous design allow flexible installation without floor- or overhead-mounted closers.

Two properly mounted hinges support glass doors up to 39" (1 m) wide and a combined weight of 220 lbs (100 kg). Includes snap-in molded gaskets for 5/16" to 9/16" (8 to 13.52 mm) glass and hex screws. Tested for long life (over 1 million cycles).

KEY SPECIFICATIONS:

• Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
• Construction: Aluminum
• Hinge Swing: 90° inward and outward (except H8060 model — one-way)
• Closing Type: Automatic closing from 0° to 80°; adjustable closing speed
• Special Feature: Holds open at 90°; ambidextrous
• Cut-out required (use template included; cut-out dimensions may differ from other brands)
• Maximum capacities using two hinges: Door Width 39" (1 m); Door Weight 220 lbs (100 kg)

NOTE: Do not use more than two hinges on one door. Not suitable for exterior/outdoor use — for exterior applications consider the H8015JC series.

Product Warning:

Do not use more than two hinges on one door. For uses other than intended, obtain approval from CRL Technical Sales. Use only the included template; cut-out dimensions for CRL hinges may not match other brands. Hinge cover plate requires a 4 mm Allen key.
