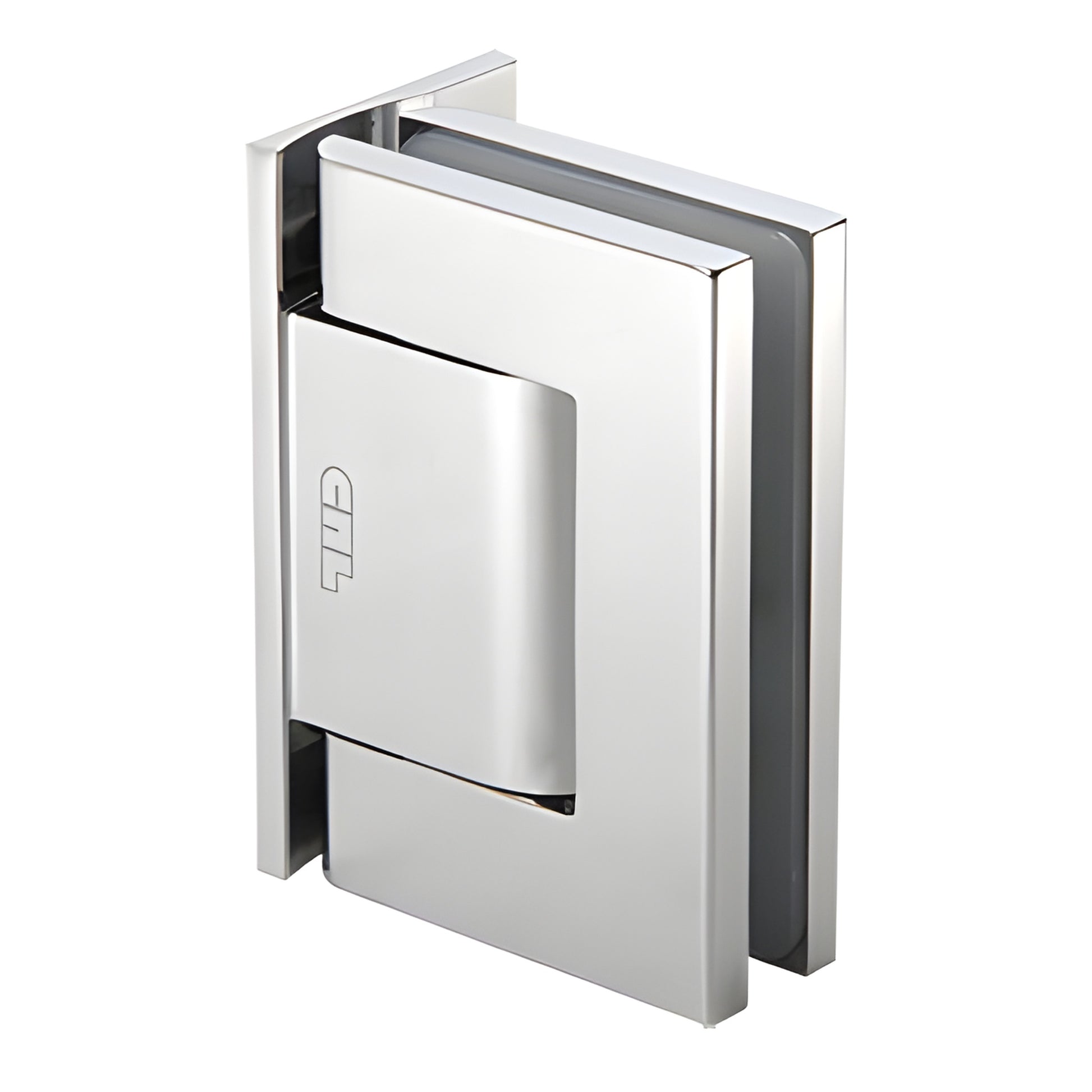

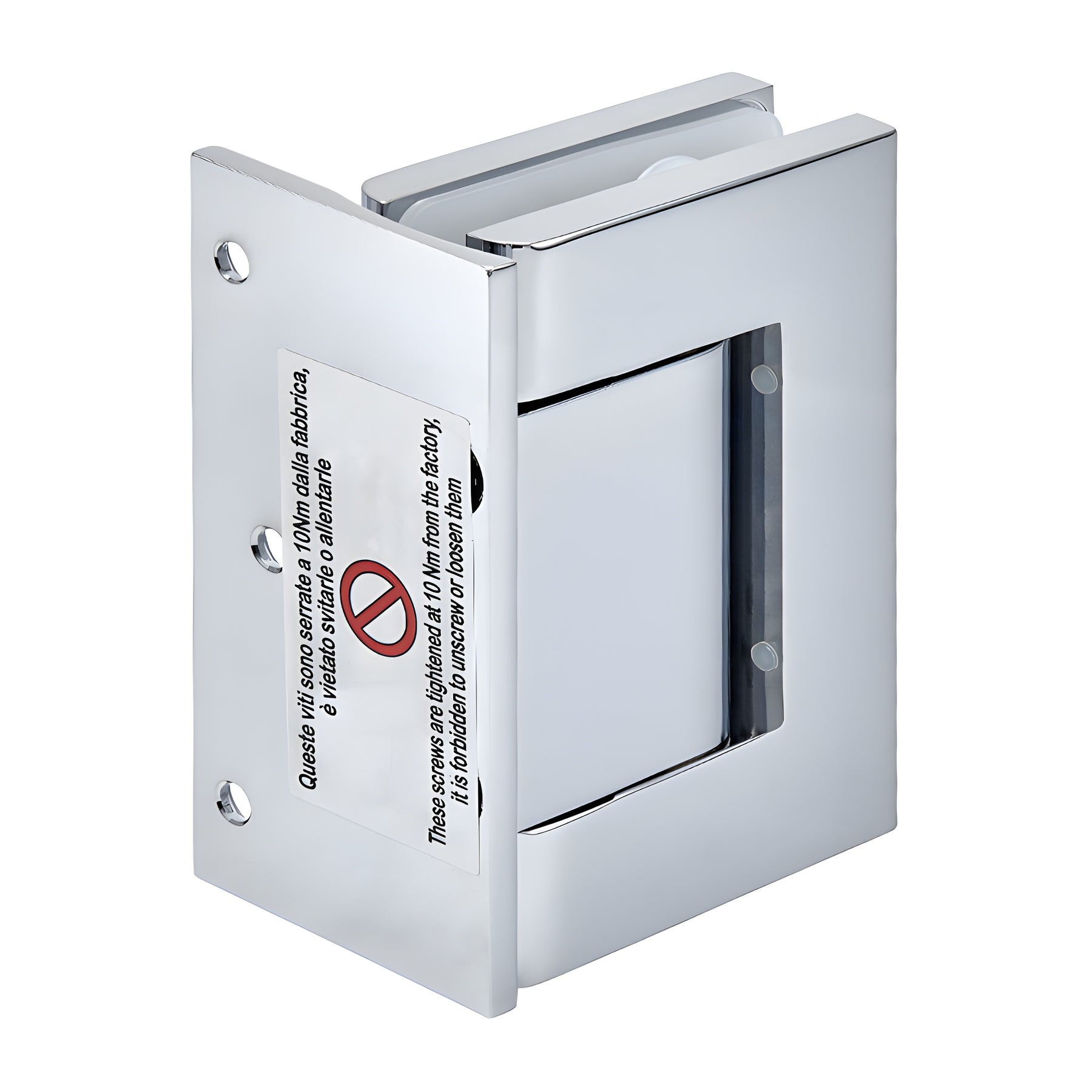

CRL Chrome Vernon Oil Wall-Mount Offset Back Plate Hold-Open Hinge

• For self-closing glass doors 5/16" to 9/16" (8 to 13.52 mm) thick
• Aluminum body available in Brite Chrome, Brushed Satin, and Satin Anodized finishes
• Adjustable closing speed with control valve
• Alternative to floor closers and patch fittings for all-glass installations
• Designed for interior doors in humid, high-temperature environments (up to 212°F / 100°C)

CRL Oil Dynamic Offset Back Plate Wall Mount Hinge (SKU: H8011BTCH) swings in and out a full 90° with positive stops at 0°, +90°, and −90°. The ambidextrous oil-dynamic mechanism combines hydraulic control and automatic mechanical action to provide reliable self-closing performance without a floor-mounted or overhead door closer—ideal for steam rooms, Turkish baths, and shower enclosures. Closing speed is adjustable; hold-open at 90°.

Two hinges properly mounted will support glass doors up to 39" (1 m) wide and a maximum combined weight of 220 lbs. (100 kg). The hinge is engineered for interior, damp-location use and has been tested for durability (over 1 million cycles).

The Oil Dynamic hinge enables retrofit of an all-glass door without floor or overhead modification—making it an excellent self-closing glass door hinge solution for remodels where minimal intrusion is required.

• Glass thickness: 5/16" to 9/16" (8 to 13.52 mm)
• Construction: Aluminum
• Hinge swing: 90° inwards and outwards
• Closing type: Automatic closing from 0° to 80° with adjustable speed
• Special features: Holds open at 90°; ambidextrous; control valve for speed adjustment
• Includes: Snap-in molded gaskets for 3/8" (10 mm) and 1/2" (12 mm) glass; hex screws
• Cut-out required; use only the CRL template supplied
• Maximum capacities (using two hinges): Door width 39" (1 m); door weight 220 lbs. (100 kg)

Important Notes: Do not use more than two hinges on one door. Not suitable for exterior/outdoor use. If using for applications other than intended, obtain approval from CRL Technical Sales. Cut-out dimensions for CRL hinges may differ from other brands.

Product Warning: Use only the included template. If exact shipping weight is required, contact CRL Customer Service prior to ordering. Product images are representative; actual colors may vary by monitor.

Looking for a reliable self-closing glass door hinge that withstands humidity and high temperatures? Order SKU H8011BTCH today or contact CRL for technical assistance.
