CRL Dark Bronze Adams Rite® UltraLine® 7400 Series Electric Strike

Overview

SKU	DH50822
Sold as	1 Each
Brand	Adams Rite
Case Depth	1-1/16
Case Height	3-3/8
Case Width	1-13/32
Certification	UL 1034, UL 294, ULC-S319, ANSI/BHMA A156.18, ANSI/BHMA A156.31 Electric Strikes and Frame Mounted Actuators, Grade 1
Face Plate Height	4-7/8
Face Plate Width	1-1/4
Faceplate Style	Flat with Radius Corners
Finish/Color:	Dark Bronze
Handing	Non Handed
Input	12/16/24 VDC power
Projection	1/2 To 5/8 (latchbolt)
Series	7400
Strike Opening	5/8" adjustable x 1-7/16" x 1/2" deep
Type	Electric Strike
UL Listed	Yes

Description

Product Details

Field Convertible from Fail-Secure to Fail-Safe
UL Listed for Burglary Resistance
ANSI/BHMA A 156.18, ANSI/BHMA A 156.31 Electric Strikes and Frame Mounted Actuators, Grade 1
Non-Handed
Adjustable Stainless Steel Keeper with over 1,500 lbs (680.4 kg) of holding force in fail secure mode
Releases electrically with up to 25 lbs of door preload
Operates: 12/16/24 VDC power

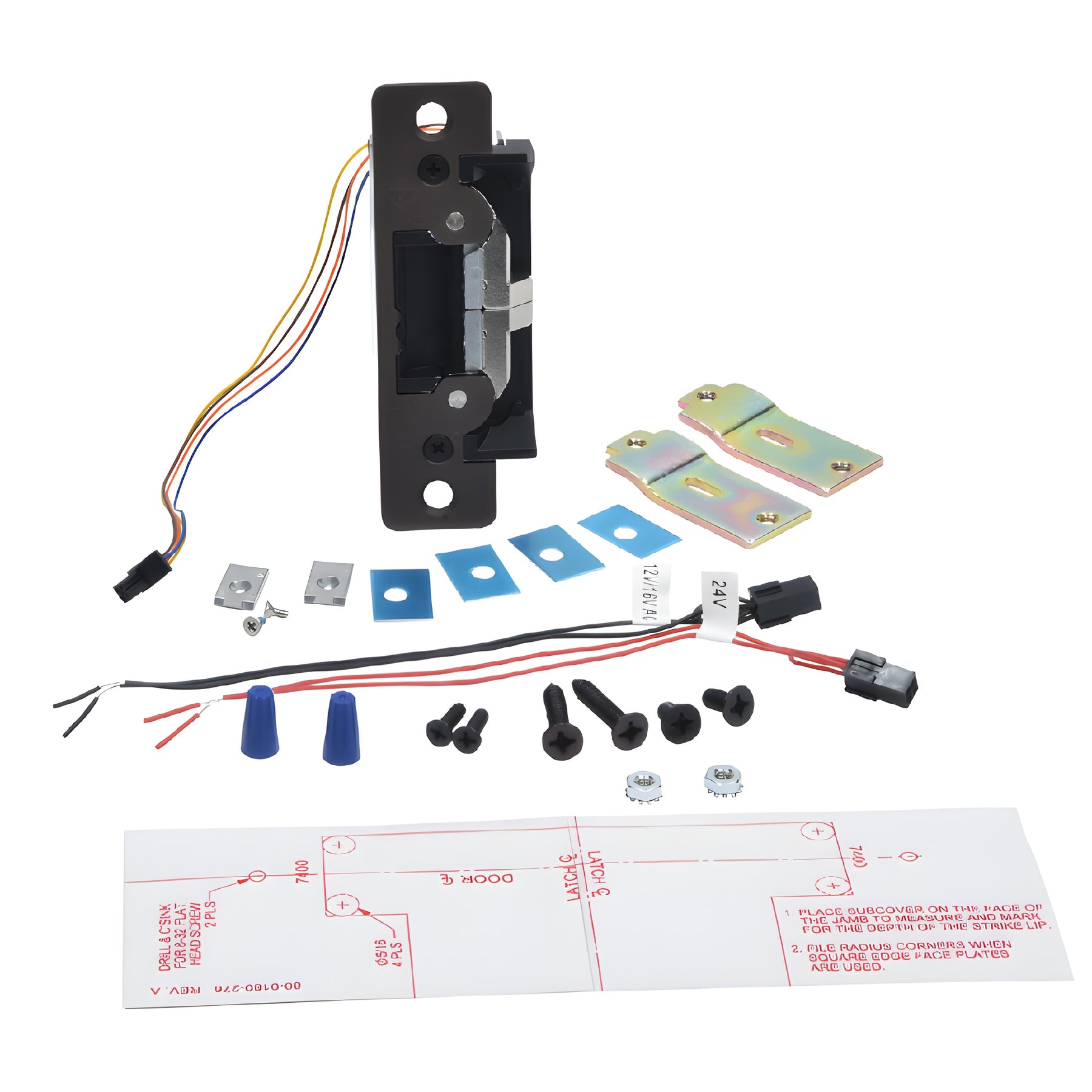

This CRL Dark Bronze Adams Rite® UltraLine® 7400 Series Electric Strike is a non handed strke features an ultra-compact design and adjustable stainless steel keepers with over 1,500 lbs (680.4 kg) of holding force in fail secure mode. Designed for use with Adams Rite® deadlatches or cylindrical locksets with 1/2" ( 12.7 mm) to 5/8" (15.9 mm) latchbolt projection. For use in Aluminum, Hollow Metal, or Wood applications.
