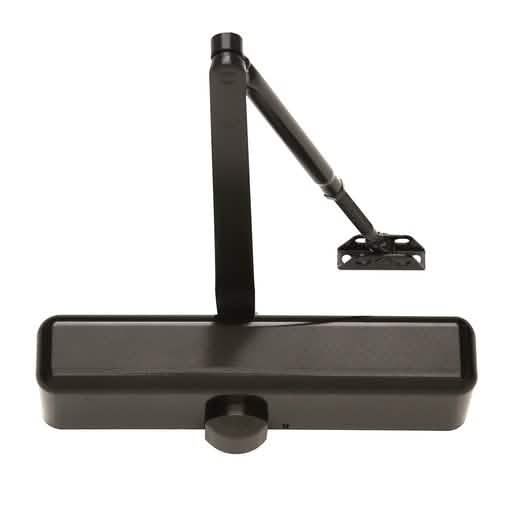

CRL Dark Bronze Adjustable Spring Power Size 2 to 5 Surface Mount Door Closer
CRL Dark Bronze Adjustable Spring Power Size 2 to 5 Surface Mount Door Closer
Regular price
$184.90 CAD
Regular price
Sale price
$184.90 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PR80DU
Shipping Weight: 6.2 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 6.2 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Body Length 9-3/4 in. | (247.7 mm) |
| Case Quantity | 10 |
| Certification | A.D.A. Barrier-Free Requirements |
| Closer | Action Adjustable |
| Closer | Type Surface Mount |
| Finish/Color | Dark Bronze |
| Horizontal Mounting Holes 9-1/16 in. | (230.2 mm) |

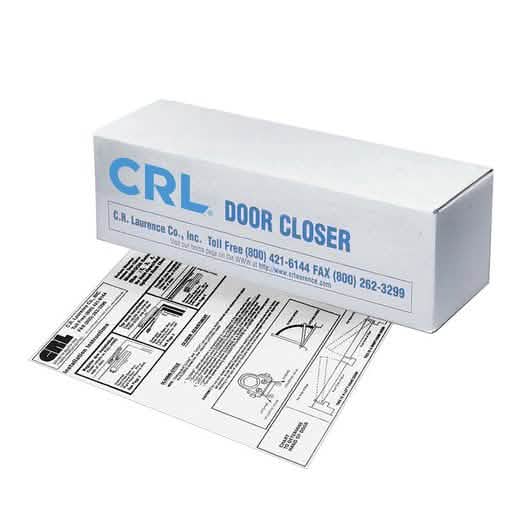

| Includes | Parallel Arm Brackets, Mounting Hardware & Instructions |
| Spring Size | 2 To 5 |
| U | L Listed Yes |
| Vertical Mounting Holes Center To Center 3/4 in. | (19.1 mm) |
Overview
The CRL PR80 Series of Multi-Size Adjustable Spring Power Surface Mounted Door Closers offer versatility and reliability for a range of applications.
These door closers are designed to replace single size surface closers and fit a common 9-1/16" x 3/4" (230 x 19 mm) hole template, making them suitable for both new and retrofit installations.
They accommodate doors ranging from 24" to 54" wide and up to 264 lbs., with a Barrier-Free model available to meet A.D.A.
requirements.
All PR80 Closers are UL listed, come with a ten-year warranty, and include parallel arm brackets and mounting hardware for universal installation.
Optional accessories such as Drop Plates and Hold Open Arms can be added for specialized applications.
These door closers are designed to replace single size surface closers and fit a common 9-1/16" x 3/4" (230 x 19 mm) hole template, making them suitable for both new and retrofit installations.
They accommodate doors ranging from 24" to 54" wide and up to 264 lbs., with a Barrier-Free model available to meet A.D.A.
requirements.
All PR80 Closers are UL listed, come with a ten-year warranty, and include parallel arm brackets and mounting hardware for universal installation.
Optional accessories such as Drop Plates and Hold Open Arms can be added for specialized applications.
