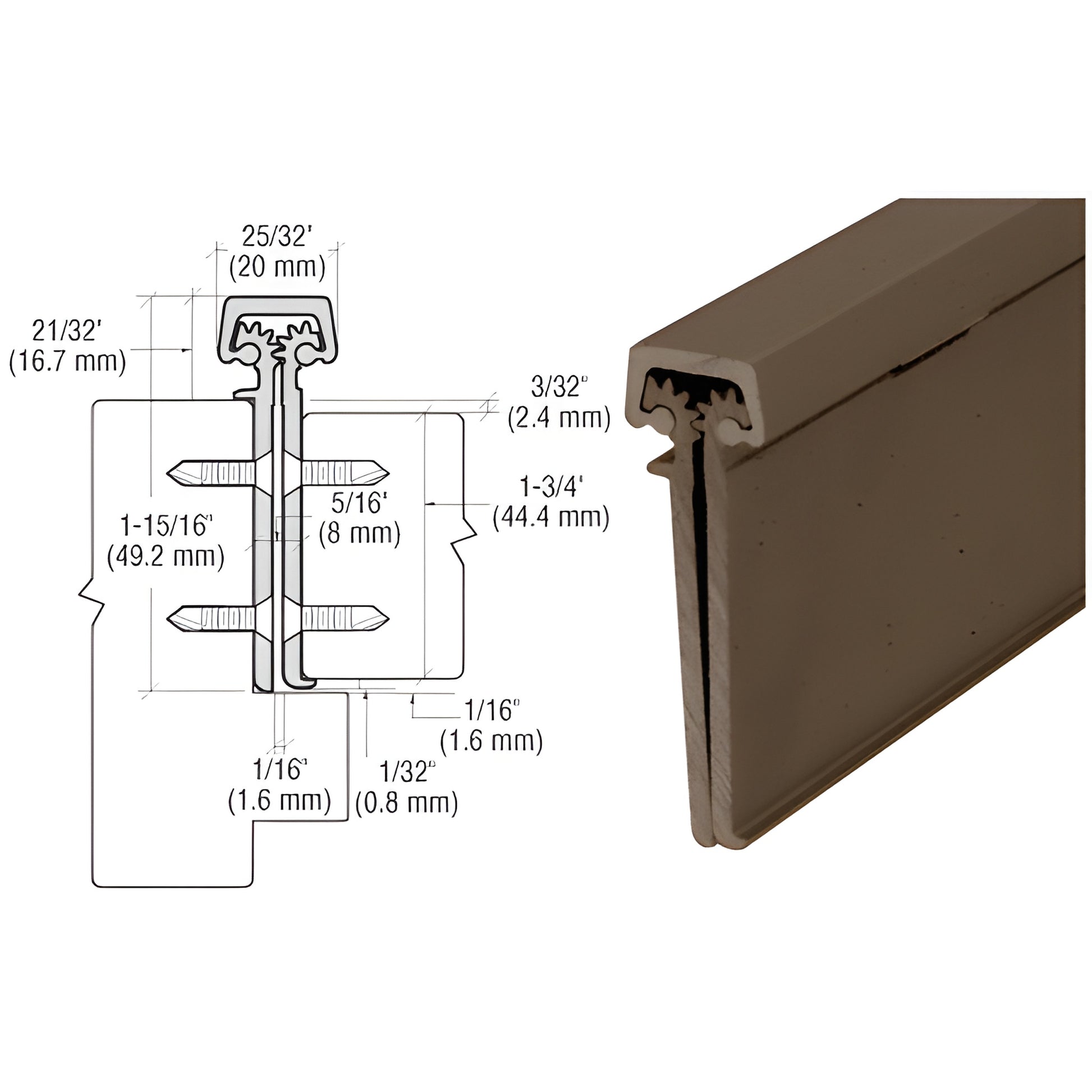

CRL Roton 224 Concealed Hinge 83" Dark Bronze 1-3/4" Door
CRL Roton 224 Concealed Hinge 83" Dark Bronze 1-3/4" Door
Regular price
$344.88 CAD
Regular price
Sale price
$344.88 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 22483DU
Shipping Weight: 8.45 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.45 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Brand
Roton
Finish/Color
Dark Bronze
Includes
Installations Screws
Length
83
Material
Aluminum
Maximum Door Weight
200
Replacement Screw Pack
61815DU
Series
Roton 224
Width
25/32
Overview
- Standard-duty hinge for entry doors up to 200 lbs (90 kg)
- Straight hole mounting pattern
- Finish options: Satin anodized (clear) and Dark Bronze Duranodic anodized
- Also available: heavy-duty version for doors up to 600 lbs (272 kg)
CRL Concealed Leaf with Lip for 1-3/4" Entry Door Roton Hinges are high-strength aluminum concealed hinges featuring a full-length rolling gear profile to align 1-3/4" entry doors top-to-bottom. Self-lubricating polyacetal load-bearing blocks deliver smooth, near-floating operation on heavy doors, while hidden mounting hardware ensures a secure, clean appearance. Easy to install—includes instructions and all mounting hardware. Standard-duty lengths stocked: 83" (2.1 m) and 95" (2.4 m). Ideal for architects, contractors, and homeowners specifying concealed leaf hinges for commercial and residential entry doors. SKU: 22483DU.
Order SKU 22483DU or contact us for specifications and availability.
