CRL Roton 224 83" Concealed Hinge Satin Anodized for 1-3/4" Door
CRL Roton 224 83" Concealed Hinge Satin Anodized for 1-3/4" Door
Regular price
$265.51 CAD
Regular price
Sale price
$265.51 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 22483A
Shipping Weight: 8.69 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.69 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Brand
Roton
Finish/Color
Satin Anodized
Includes
Installations Screws
Length
83
Material
Aluminum
Maximum Door Weight
200
Replacement Screw Pack
61362SA
Series
Roton 224
Width
25/32
Overview

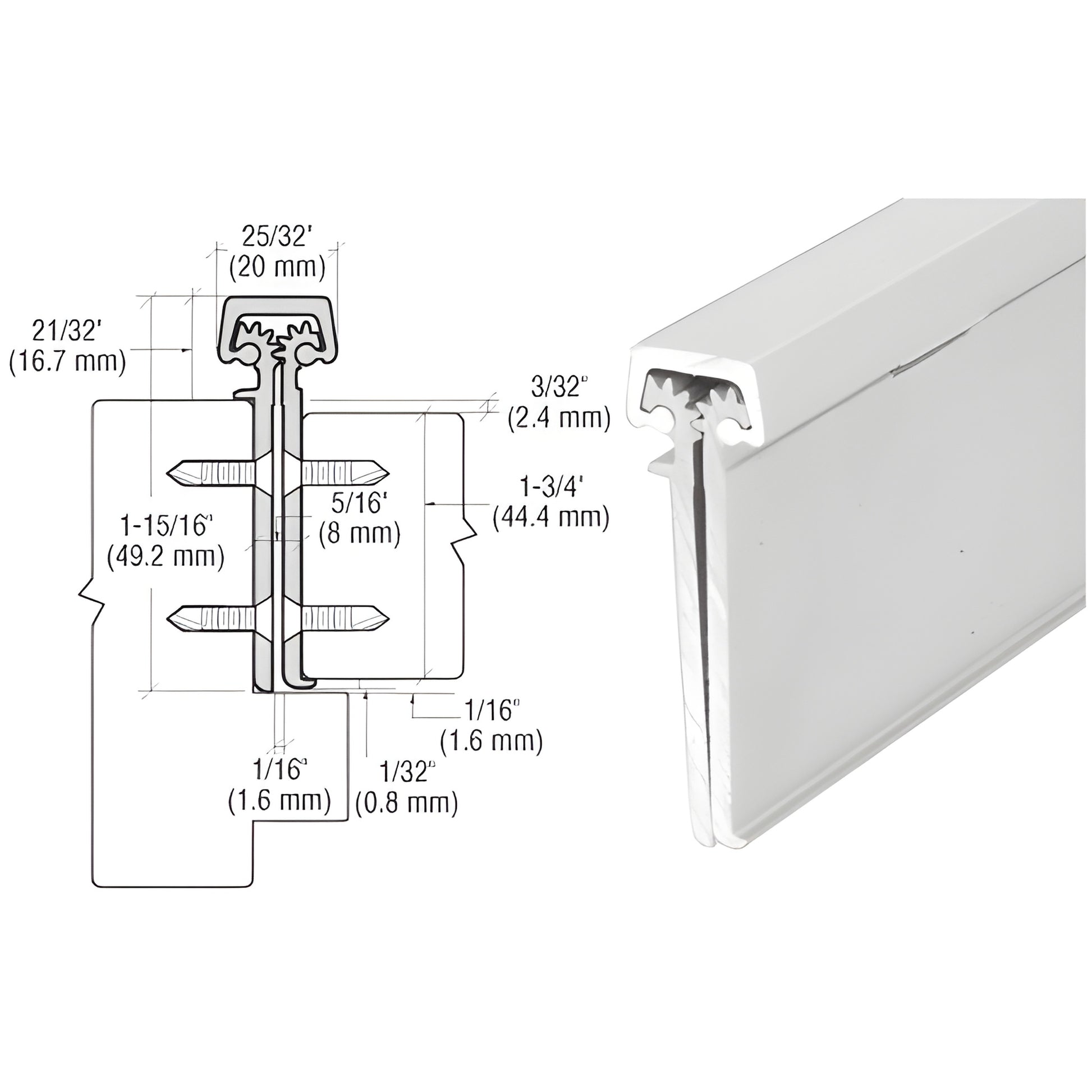

- Concealed leaf hinge for 1-3/4" entry doors — Roton hinge system (SKU: 22483A)
- Straight hole mounting pattern for hidden hardware
- Available finishes: Satin Anodized (clear) and Dark Bronze Duranodic
- Standard duty capacity for doors up to 200 lbs (90 kg); also offered in heavy-duty versions for doors up to 600 lbs (272 kg)
- Stocked lengths: 83" (2.1 m) and 95" (2.4 m)
CRL Concealed Leaf with Lip for 1-3/4" Entry Door Roton Hinges are extruded from high-strength aluminum with a full-length rolling gear profile to align doors precisely from top to bottom. Special self-lubricating polyacetal load-bearing blocks provide smooth, near-floating operation—even on heavy commercial entry doors. All mounting hardware is hidden when installed for a clean aesthetic and increased security. Hinges are easy to install and include instructions and all necessary mounting hardware. Available in clear satin anodized or dark bronze duranodic finishes.
Choose CRL Roton concealed entry door hinges for precision alignment and smooth, long-lasting operation — order now or contact us for assistance.
Specifications
Templates
