CRL 224HD Concealed Hinge w/ Lip Dark Bronze 83" 1-3/4" Door
CRL 224HD Concealed Hinge w/ Lip Dark Bronze 83" 1-3/4" Door
Regular price
$430.01 CAD
Regular price
Sale price
$430.01 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 224HD83DU
Shipping Weight: 7.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 7.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Brand
Roton
Finish/Color
Dark Bronze
Includes
Installations Screws
Length
83
Material
Aluminum
Maximum Door Weight
600
Replacement Screw Pack
61815DU
Series
Roton 224HD
Width
25/32
Overview
- Heavy-duty hinges for doors weighing up to 600 lbs. (272 kg)
- Straight hole pattern
- Available in satin anodized and dark bronze duranodic finishes
- Stocked lengths: 83" (2.1 m) and 95" (2.4 m)

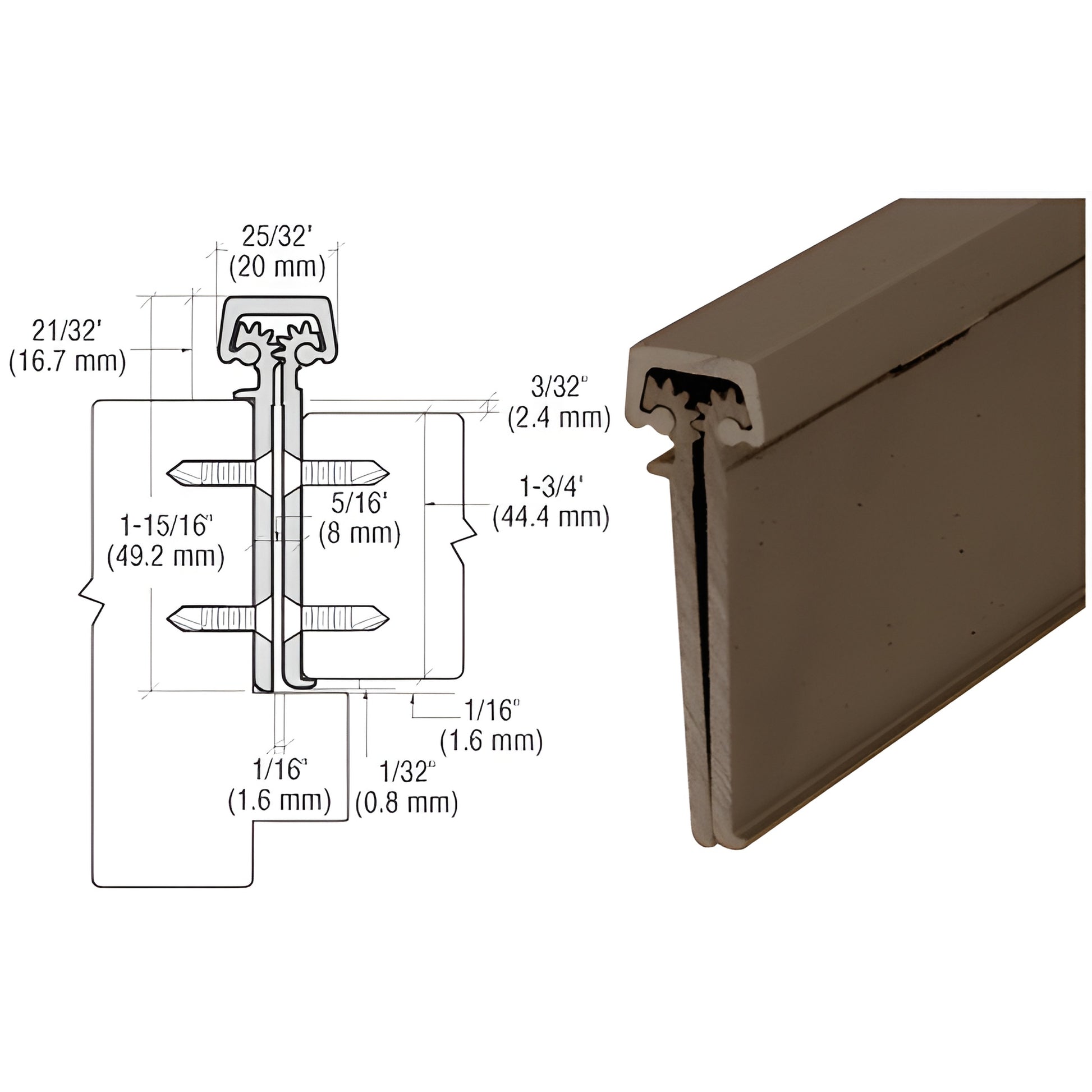

CRL Concealed Leaf with Lip for 1-3/4" Entry Door Roton Hinges (SKU: 224HD83DU) are constructed from high-strength aluminum with a full-length rolling gear profile to align entry doors precisely from top to bottom. Special self-lubricating polyacetal load-bearing blocks provide smooth, near-floating operation—even on the heaviest 600 lb doors. Concealed mounting hardware keeps the hinge secure and visually clean when installed. Easy to install; includes instructions and all necessary mounting hardware. Available in clear satin anodized or dark bronze duranodic finishes.
Order or request a quote for SKU 224HD83DU today.
Specifications
Templates
