Product Details
- Designed for Use With 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum, Wood, or Hollow Metal Doors
- Available with Crossbar or Engraved "Push" Paddle Operation on Active Side
- Concealed Fastening for Added Security
- Contoured Field Sizeable 48" (1.22 m) Long Crossbar
- Dual Dogging Feature - By Outside Cylinder - By Dogging Pins on Panic Housing
- Wear Points Insulated by Nylon Sleeves and Rollers 1085 Concealed Vertical Rod Device
- Standard Height 84" (2.13 m)
- Requires Mortise Cylinder and No. 30821J Mounting Pad for Keyed Entry MATERIALS:
- Body and Arms: High Tensile Strength Aluminum
- Mechanical Components: Stainless and Hardened Plated Steel
- Latch and Strikes: Sintered Steel

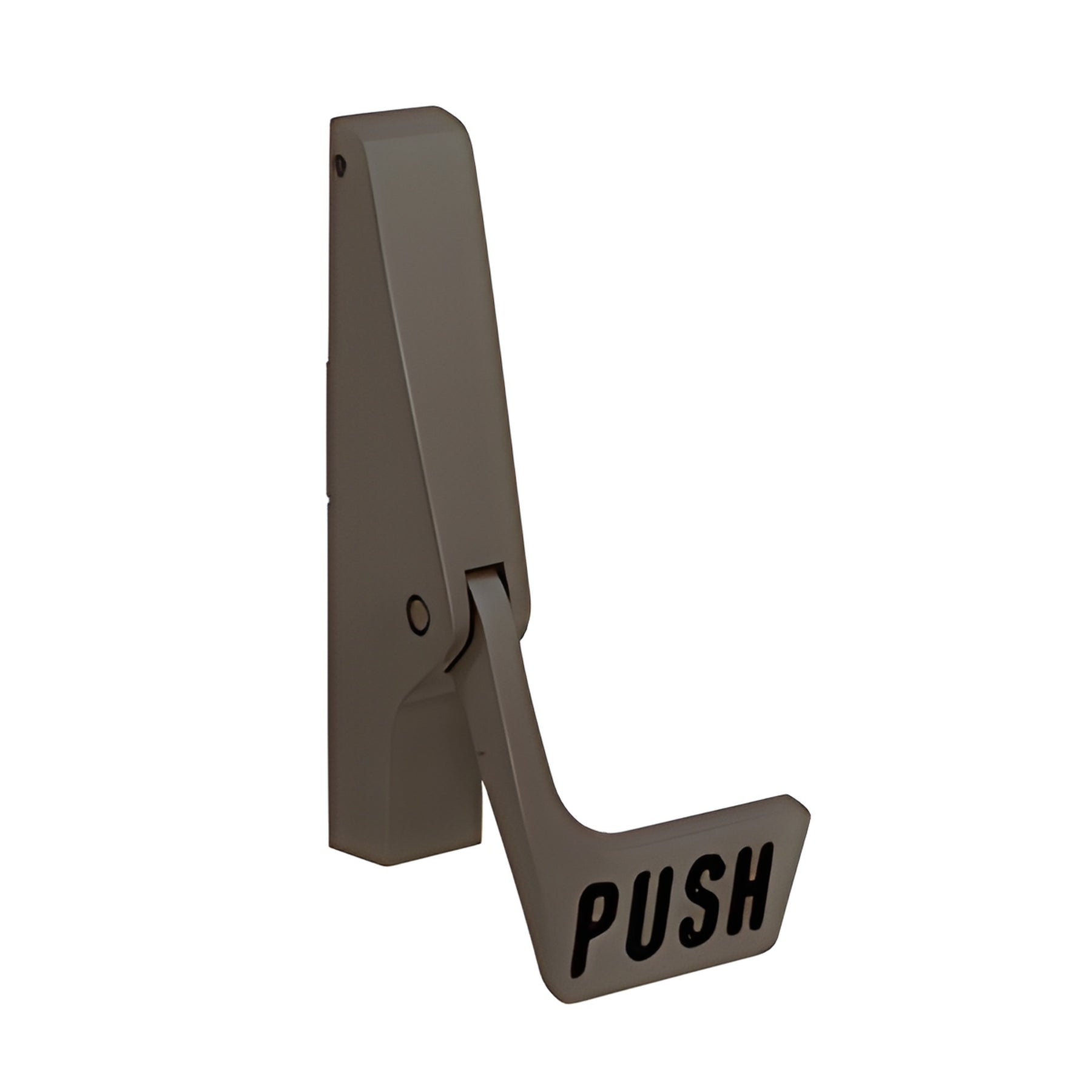

CRL Jackson® Exit Devices are universally recognized as the standard for aluminum storefront hardware. This device is designed with simplicity in mind, yet it will provide many years of smooth, reliable operation. Available in both a Rim and Concealed Vertical Rod version, this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The device is shipped to fit up to 84" (2.13 m) tall door. Extensions for taller doors are available. The 10 Series Paddle Device is the perfect solution when considering a reliable maintenance free device.
SPECIFICATIONS:
Contoured Field Sizeable 48" (1.22 m) Long Crossbar Dual Dogging Feature - By Outside Cylinder - By Dogging Pins on Panic Housing Wear Points Insulated by Nylon Sleeves and Rollers
1085 Concealed Vertical Rod DeviceStandard Height 84" (2.13 m)Requires Mortise Cylinder and No. 30821J Mounting Pad for Keyed Entry
MATERIALS: Body and Arms: High Tensile Strength Aluminum Mechanical Components: Stainless and Hardened Plated Steel Latch and Strikes: Sintered Steel
