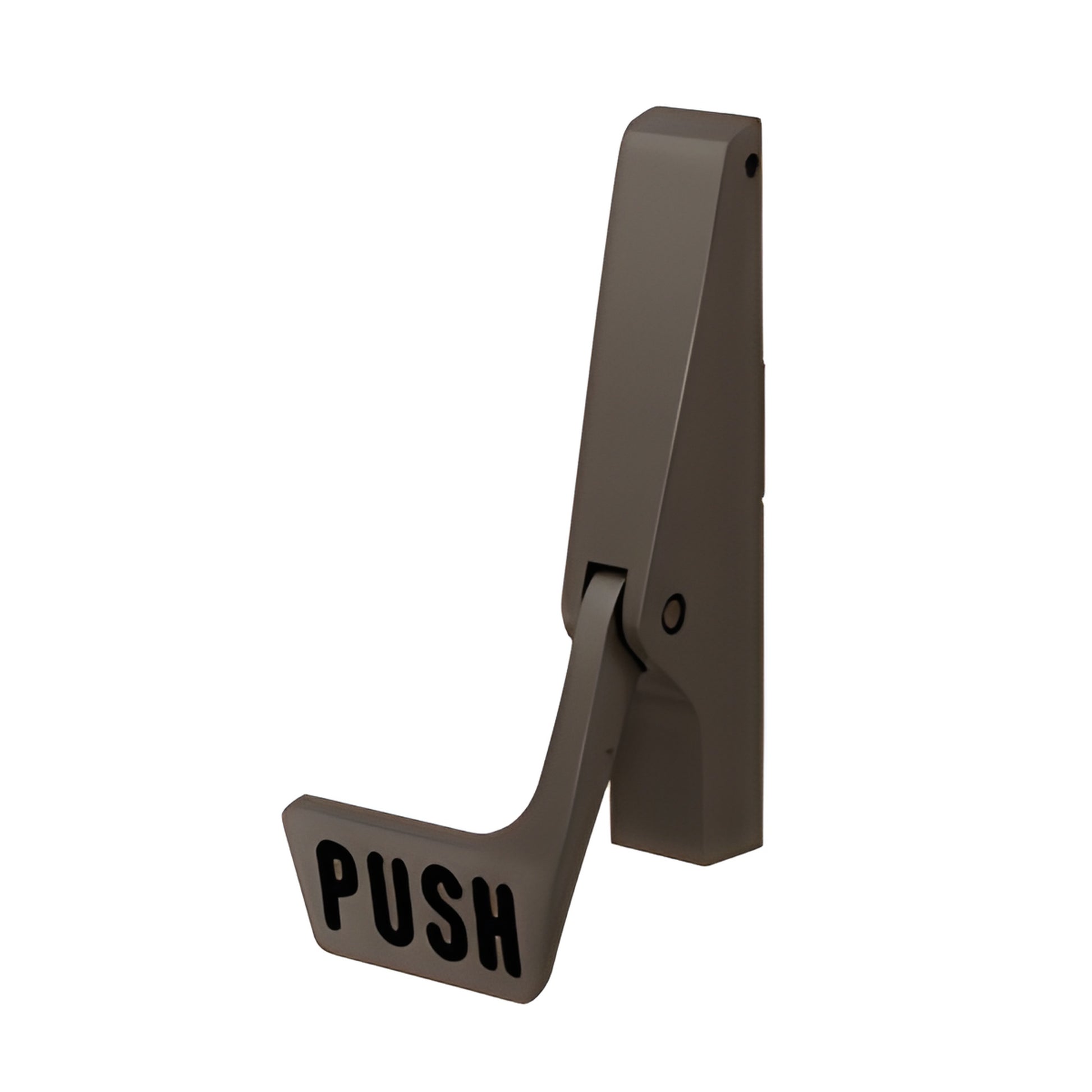

CRL Dark Bronze Jackson® 10 Series Right Hand Reverse Bevel Paddle Concealed Vertical Rod Exit Device

Item # 311085PR7313

$296.96 CAD

Finish (2)

Overview

SKU311085PR7313
Sold As1 Each
BrandJackson
CertificationANSI/BHMA 156.3
Door Height84 in. (2133.6 mm)
Door Thickness1-3/4 in. (44.5 mm)
Finish/ColorDark Bronze
HandingRight Hand Reverse Bevel (RHR)
IncludesMounting Hardware
Material - HousingAluminum
Material - Latch & StrikeSintered Steel
Material - Mechanical ComponentsStainless and Hardened Plated Steel
Minimum Stile Width1-3/4 in. (44.5 mm)
Model1085 Paddle
Paddle Push Width3-3/8 in. (85.7 mm)
Panic Bar Projection4-5/8 in. (117.5 mm)
Panic DoggingScrew Driver
Panic Head Base Width1-1/4 in. (31.8 mm)
Panic Head Height7-5/16 in. (185.7 mm)
Panic TypeConcealed Vertical Rods (Paddle)
Recommended Door TypeNarrow, Medium, Wide Stile, Aluminum, Hollow Metal
Replacement Parts30115, 301117313, 301117313, 301347, 301348, 30934313, 30320313, DL2170SCKDDU, DL2170SCKADU
Series10
UL ListedYes

Description

  • Designed for Use With 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum, Wood, or Hollow Metal Doors
  • Available with Crossbar or Engraved "Push" Paddle Operation on Active Side
  • Concealed Fastening for Added Security

CRL Jackson® Exit Devices are universally recognized as the standard for aluminum storefront hardware. This device is designed with simplicity in mind, yet it will provide many years of smooth, reliable operation. Available in both a Rim and Concealed Vertical Rod version, this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The device is shipped to fit up to 84" (2.13 m) tall door. Extensions for taller doors are available. The 10 Series Paddle Device is the perfect solution when considering a reliable maintenance free device.


SPECIFICATIONS:
  • Contoured Field Sizeable 48" (1.22 m) Long Crossbar
  • Dual Dogging Feature - By Outside Cylinder - By Dogging Pins on Panic Housing
  • Wear Points Insulated by Nylon Sleeves and Rollers

    1085 Concealed Vertical Rod Device
  • Standard Height 84" (2.13 m)
  • Requires Mortise Cylinder and No. 30821J
    Mounting Pad for Keyed Entry

    MATERIALS:
  • Body and Arms: High Tensile Strength Aluminum
  • Mechanical Components: Stainless and Hardened Plated Steel
  • Latch and Strikes: Sintered Steel
  • Specifications
