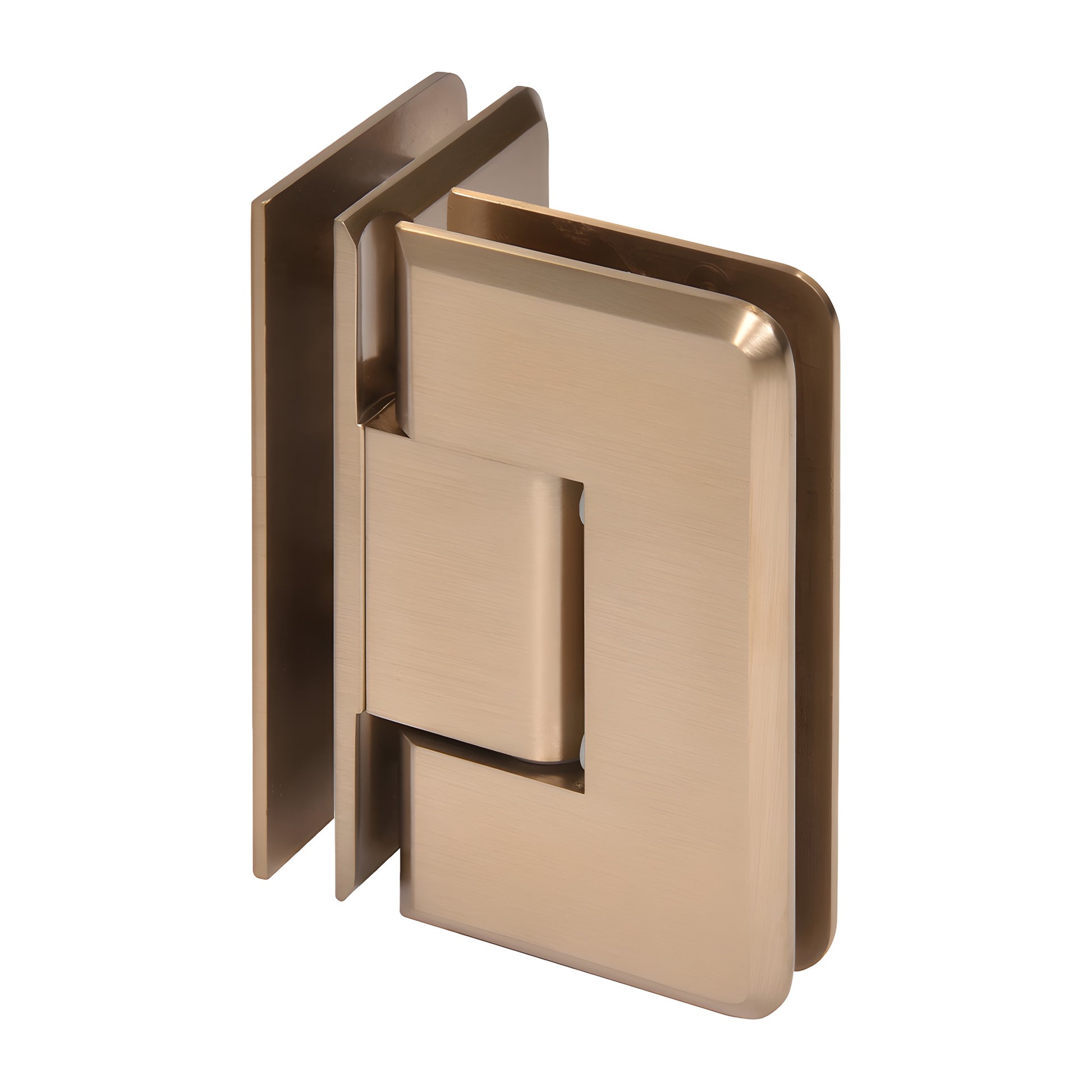

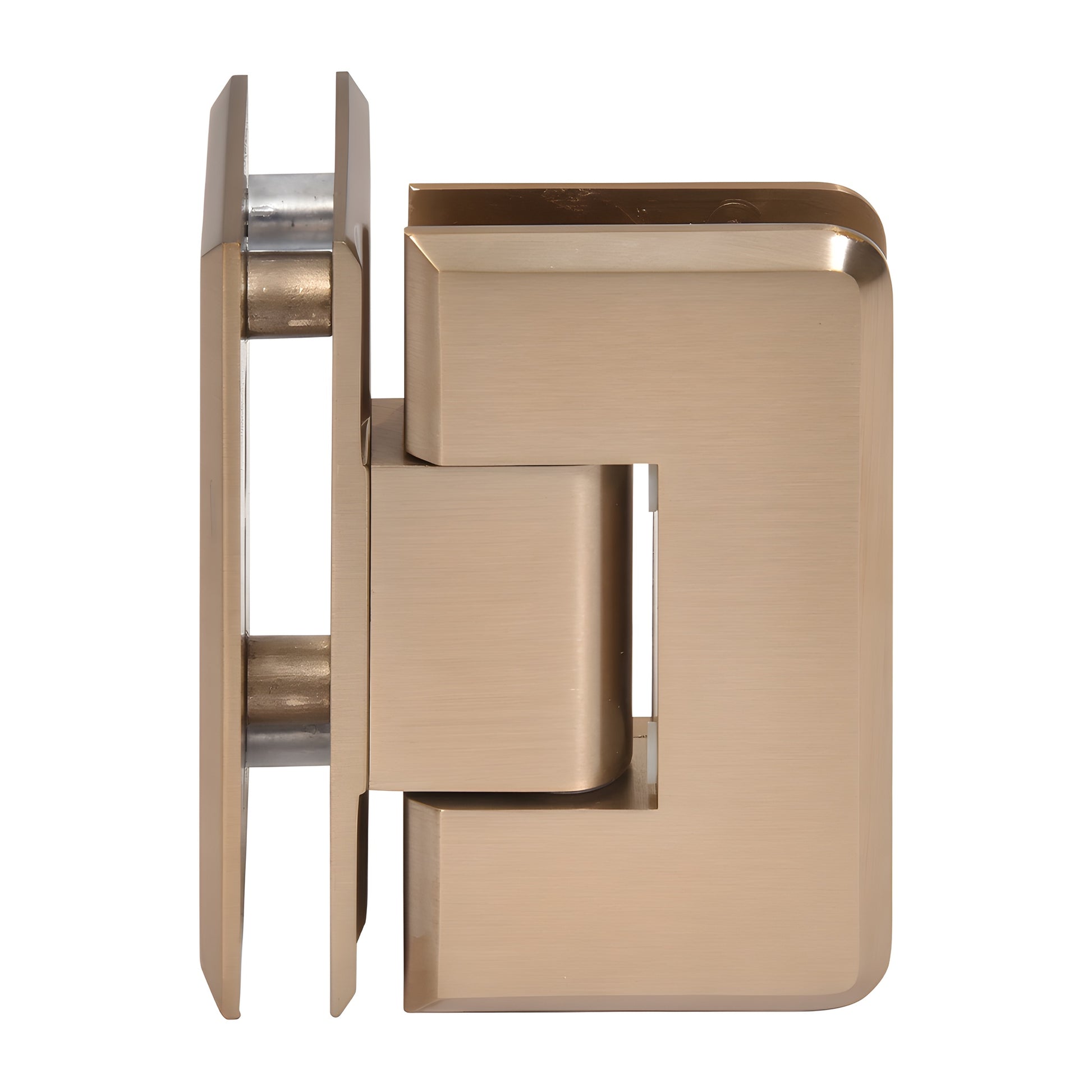

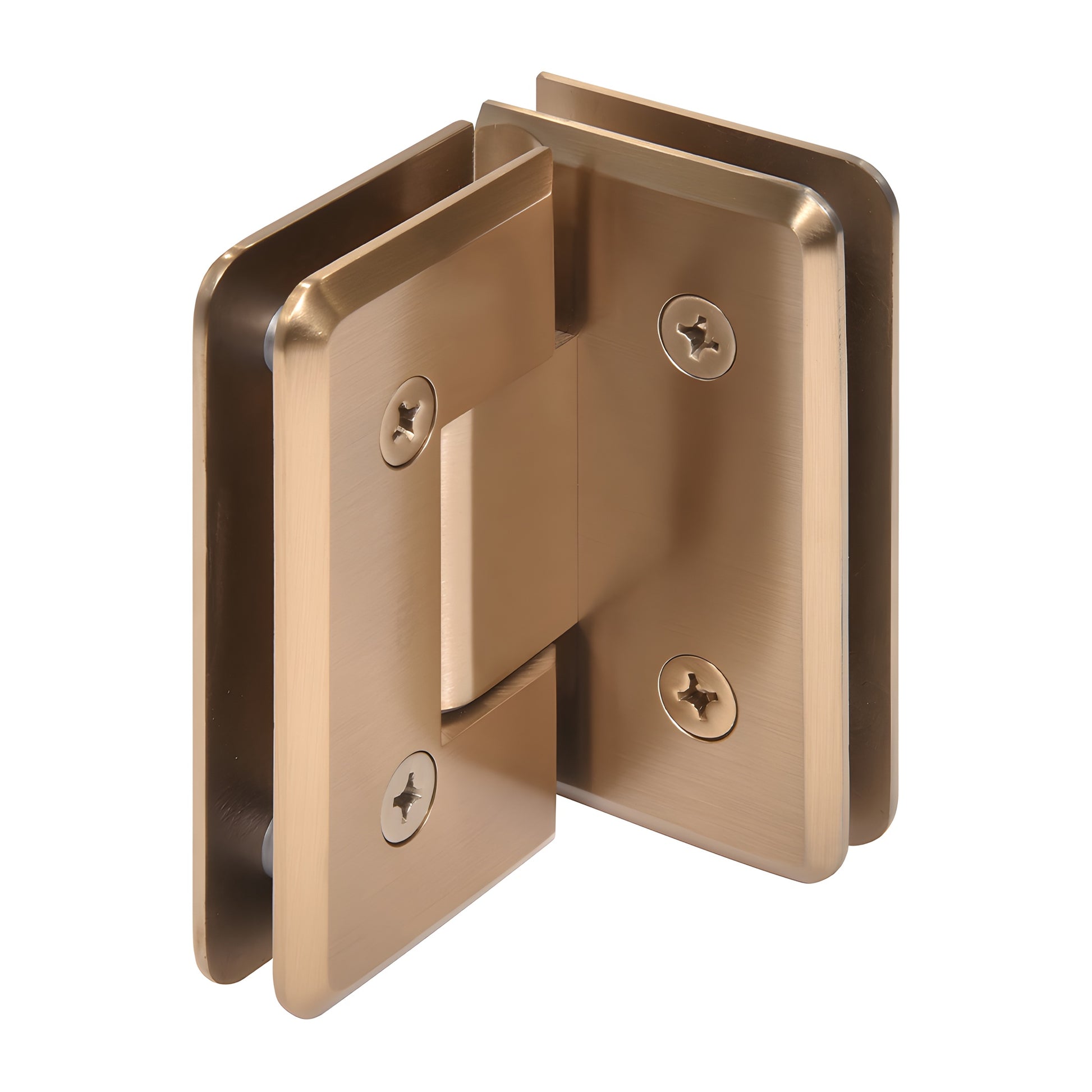

CRL Cologne 092 Dark Brushed Bronze 90° Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Available in several beautiful finishes (custom finishes available on request)
• 90º glass-to-glass installation; use monolithic tempered safety glass

CRL Cologne Hinges are a solid-brass shower hinge designed for wider, heavier glass doors where traditional hinges underperform. Similar to Vienna Hinges but with radius corners and beveled edges, Cologne Hinges deliver a sleek appearance and durable performance for residential and hotel shower applications. Two internal steel pins provide mounting flexibility: leave both pins for compatibility with CRL "mouse-ears" cut-outs, or remove them for increased adjustability and fit with rectangular, square-cornered cut-outs (including some competitive patterns).

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin marked 90º on one side and 85º on the other. Standard models ship with the 90º side active; Pre-Set models ship pre-set at 85º for a 5º tighter closure. The pin can be rotated (not flipped) to switch sides.

Custom Pivot Pin: Custom pivot pins are available to accommodate off-angle installations (specify up to 45º when standard adjustment is insufficient).

Load Capacity:
Using two hinges on 3/8"–1/2" (10–12 mm) glass: holds up to 110 lbs (50 kg), maximum door width 36" (914 mm).
Using three hinges on 3/8"–1/2" (10–12 mm) glass: holds up to 140 lbs (63 kg), maximum door width 36" (914 mm).

Specifications:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90º in and 90º out
Closing Type: Self-centering when within 15º of closed position
Cut-Out: Cut-out required — except C0L092 requires a cut-out for the door and two holes for the fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes and technical support are available from the CRL Technical Sales Department.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use only. For other uses, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—CRL cut-out dimensions may not match other brands.
