CRL DL770F Dark Bronze Surface Vertical Rod Fire-Rated Exit Device
Item# DL770FSV37DU
Shipping Weight: 15.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 15.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Door Thickness
1-3/4
Door Width
30 To 36
Finish/Color
Dark Bronze
Fire Rating Hour
3
Handing
Non Handed
Includes
Mounting Hardware
Material
Aluminum
Minimum Stile Width
4-1/4
Model
DL770FSV
Panic Bar Base Height
2
Panic Type
Surface Vertical Rods
Recommended Door Type
Aluminum, Wood, Hollow Metal
Similar
31127548313
UL Listed
Yes
- For use with 30" to 36" (762 to 914 mm) wide doors up to 84" (2134 mm) tall
- Two finishes available
- Non-handed design — field reversible
- UL Listed
- 3-hour fire rated

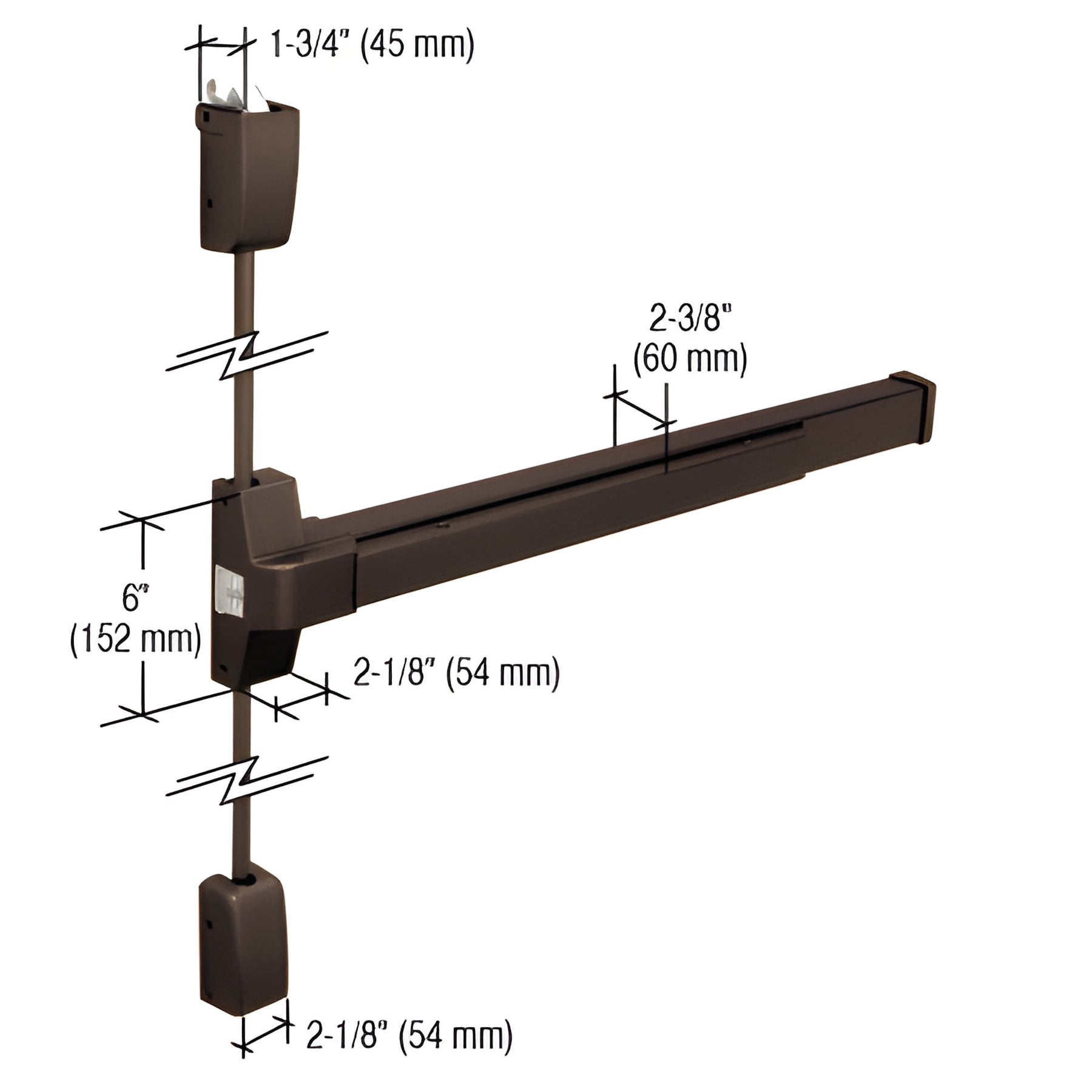

Our CRL Push-Pad Surface Vertical Rod Panic Exit Device (SKU: DL770FSV37DU) fits 1-3/4" thick wood or metal doors and is designed for commercial and institutional applications requiring a fire-rated panic bar. The unit is UL listed with a 3-hour fire rating and requires a minimum door stile width of 4-1/4" (108 mm). The panic base can be field sized to fit doors as narrow as 30" (762 mm). Active lever trim is available.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please contact CRL Customer Service prior to ordering. Product images represent the actual product or a close representation; colors may vary by monitor and video card settings.
Order the DL770FSV37DU surface vertical rod panic exit device today to ensure code-compliant, fire-rated egress hardware for 30"–36" doors.
