CRL Dry-Glazed Frameless Glass 3' P-Style Brushed SS Door Kit No Lock

• Door Only or Complete Entrance Kits Available
• 3'-0" Single Door or 6'-0" Double Door Kits for use with 1/2" (12 mm) tempered glass
• Finishes: Brushed or Polished Stainless Steel; Clear or Black/Bronze Anodized. Net door width: 35-3/4" (908 mm)

CRL offers Dry Glazed Frameless Glass Door Kits (SKU: P4BS12SE) for single or double door entrances, available as Door Only or Complete Entrance kits. You supply the 1/2" (12 mm) tempered glass. These frameless glass door kits are ideal for commercial storefronts and interior glass entrances requiring a clean, modern aesthetic and heavy-duty hardware.

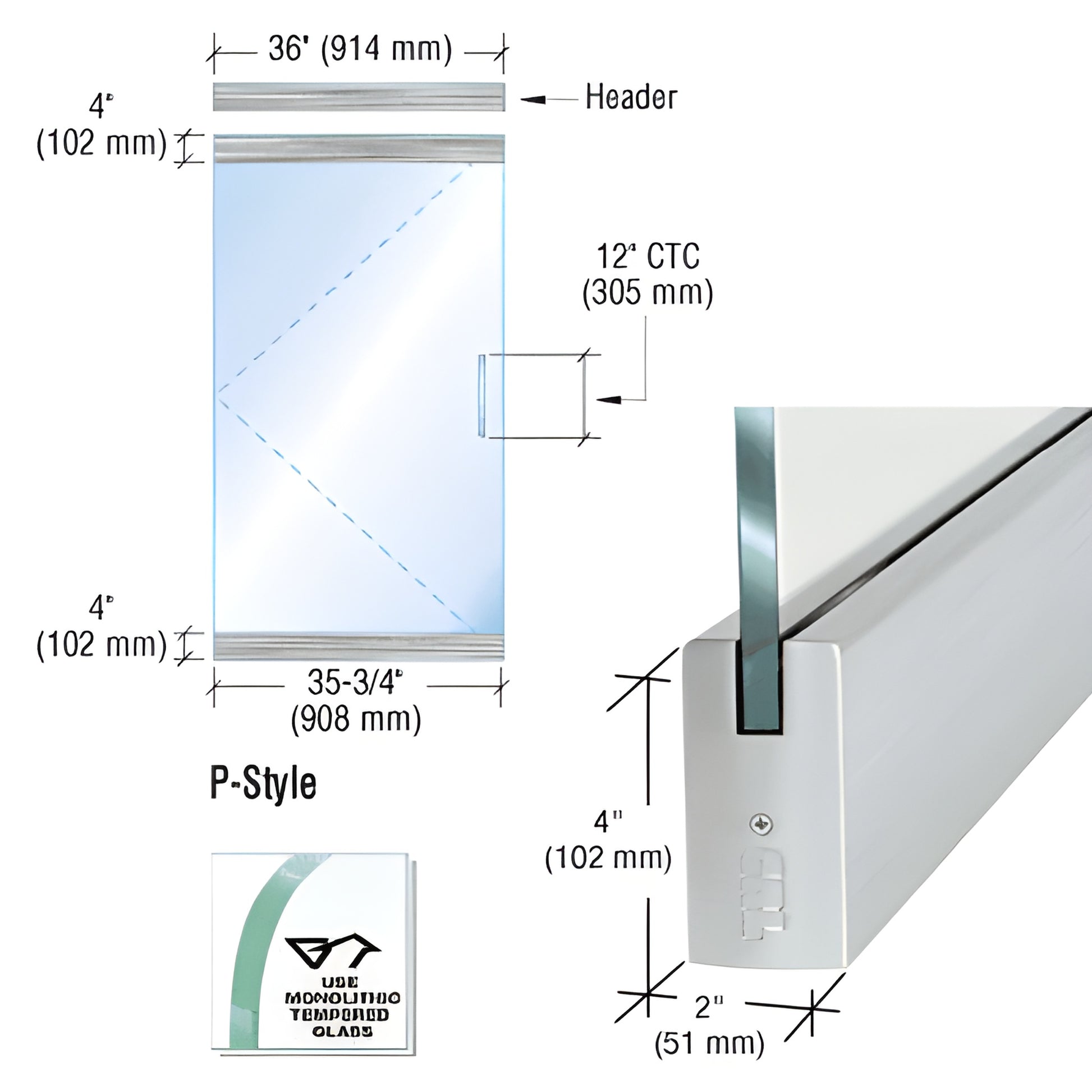

All kits use CRL's patented Dry Glaze Rails for secure, tool-friendly installation and are offered in 'P' or 'BP' style door types. Compatible with 1/2" (12 mm) clear fully tempered glass, the system requires two 5/8" (16 mm) holes at 12" (305 mm) on center for the pull handle. Net door width is 35-3/4" (908 mm).

Door Only Kits include rails, a Jackson® Overhead Concealed Door Closer with bottom pivot, and a pull handle. Complete Entrance Kits also include a 1-3/4" x 4" (45 x 102 mm) header prepped for a Jackson® Overhead Concealed Door Closer. Optional locks are available in the bottom rails. Thresholds sold separately.

Key differentiators

• Patented Dry Glaze Rails for a dry-glazed frameless installation
• Jackson® overhead concealed door closer and heavy-duty bottom pivot for smooth, durable operation
• Multiple finish options: brushed/polished stainless or clear/black/bronze anodized
• Available as Door Only or Complete Entrance Kits — with optional bottom-rail locks and separate thresholds

NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Without Lock Kits Include:

• Two DR4S Series Dry Glaze Rails
• One Model 20104M20 Jackson® Overhead Door Closer
• One CRL8010AS Closer Arm
• One CRL8010DP Bottom Pivot
• One CRL8010FS Mounting Clip
• One Model CM12X12 Pull Handle
• One Model DCH4 36" Header
