CRL 6' Dry-Glazed Frameless Double Door Kit, Satin Anodized w/o Lock

• Door-only or complete entrance kits available

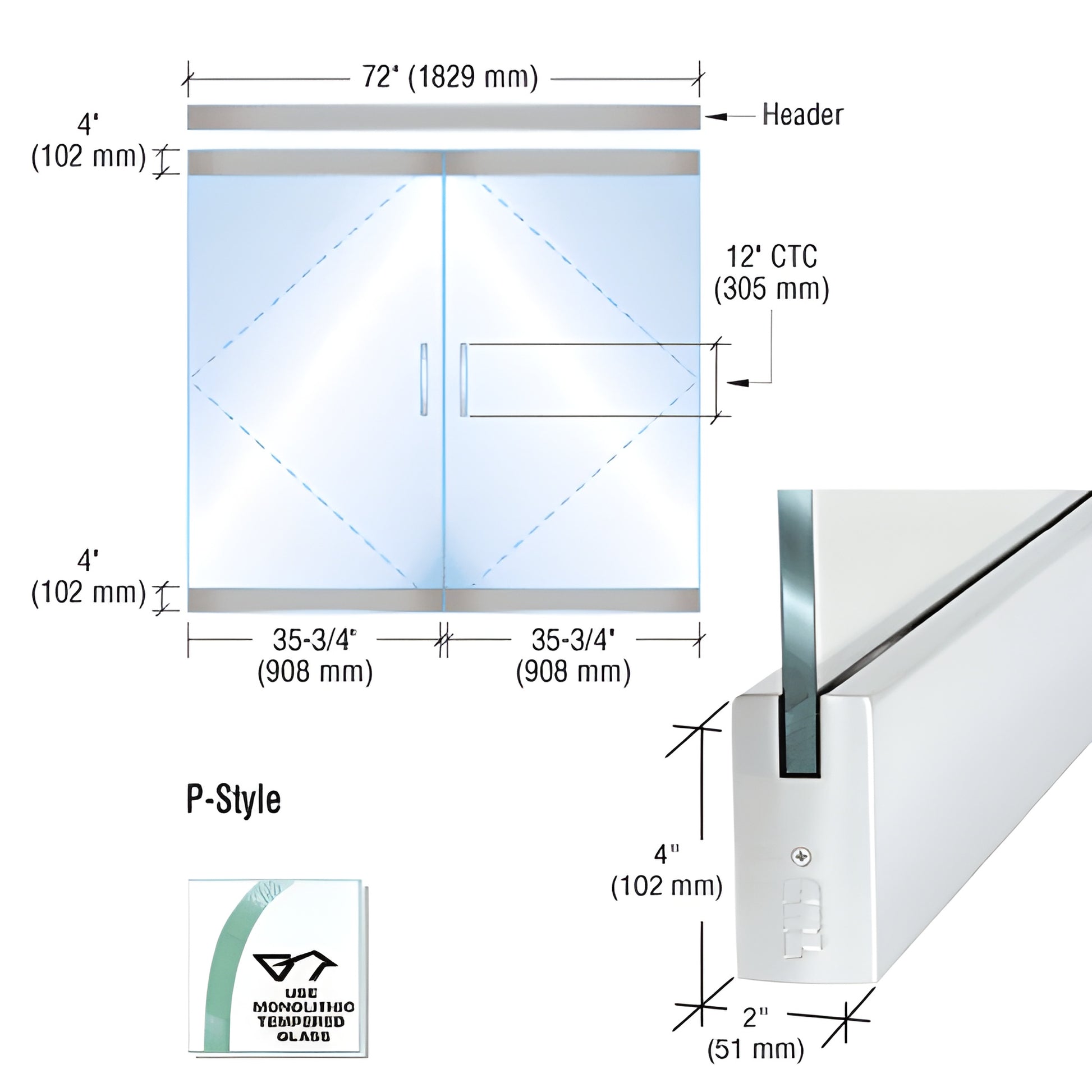

• 3'-0" single door or 6'-0" double door kits for use with 1/2" (12 mm) tempered glass
• Brushed or polished stainless steel, clear or black/bronze anodized finishes; net door width 35-3/4" (908 mm)

CRL dry glazed frameless glass door kits (SKU P4SA12DE) provide single or double entrance solutions — you supply the 1/2" (12 mm) fully tempered glass. This kit uses CRL’s patented dry glaze rails for a clean, structural frameless look and is a 'P' Style Door Type available in brushed or polished stainless steel, or clear or black/bronze anodized finishes.

Installation notes: works with 1/2" (12 mm) tempered glass and requires two 5/8" (16 mm) holes at 12" (305 mm) on center for the pull handle. Net door width is 35-3/4" (908 mm). CRL follows GANA guidelines for maximum door sizes.

Kit options and included components:

• Door Only Kits include rails, Jackson® overhead concealed door closer with bottom pivot, and a pull handle
• Complete Entrance Kits add a 1-3/4" x 4" (45 x 102 mm) header prepped for a Jackson® overhead concealed door closer
• All kits are available with locks in the bottom rails; thresholds available separately

Without Lock Kits include:

• Four DR4S series dry glaze rails
• Two Model 20104M20 Jackson® overhead door closer sets
• Two CRL8010AS closer arms
• Two CRL8010DP bottom pivots
• Two CRL8010FS mounting clips
• Two Model CM12X12 pull handles
• One Model DCH4 72" header
