CRL Dry Glazed Frameless Glass 6' BP-Style Brushed Stainless Double Door Complete Entrance Kit - without Lock

• Door Only or Complete Entrance Kits Available

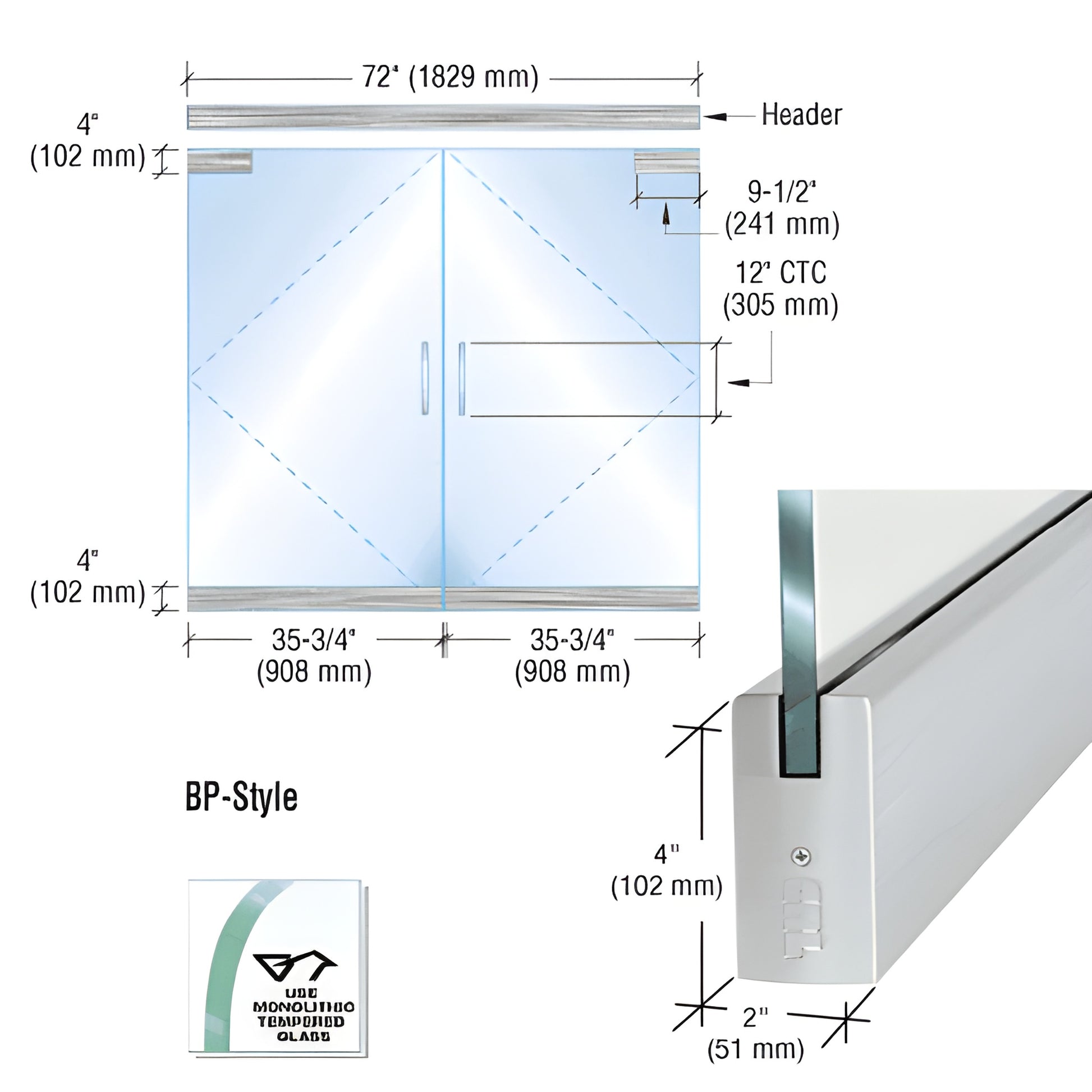

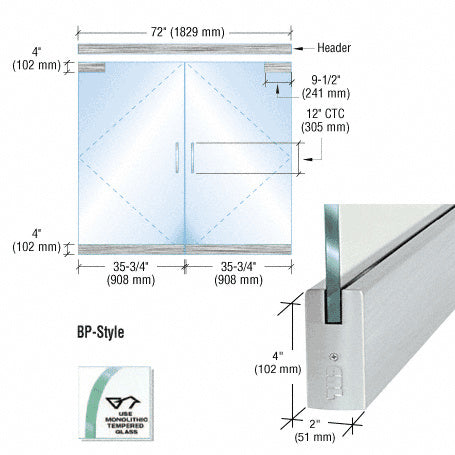

• 3' Single Door or 6' Double Door Kits for Use with 1/2" (12 mm) Tempered Glass
• Net Door Width is 35-3/4" (908 mm)

CRL offers Dry Glazed Frameless Glass Door Kits for single or double door entrances in door only or complete entrance kits. All you supply is the 1/2" (12 mm) tempered glass.


This kit utilizes our patented dry glaze rails. It is a 'BP' Style Door Type in brushed or polished stainless steel, clear or black/bronze anodized finishes. It works with 1/2" (12 mm) fully tempered glass. It requires two 5/8" (16 mm) holes at 12" (305 mm) on center for the pull handle, and a notch for the top patch. Net door width is 35-3/4" (908 mm).

Door Only Kits include Rails, Jackson® Overhead Concealed Door Closer with Bottom Pivot, and a Pull Handle. Complete Entrance Kits also include a 1-3/4" x 4" (45 x 102 mm) Header prepped for a Jackson® Overhead Concealed Door Closer. All Kits are also available with locks in the bottom rails. Thresholds are also available, but must be ordered separately.

NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Without Lock Kits Include:

Two DR4S Series Dry Glaze Top Patch Rails

Two DR4S Series Dry Glaze Rails

Two Model 20104M20 Jackson® Overhead Door Closer Sets

Two CRL8010AS Closer Arms

Two CRL8010DP Bottom Pivots

Two CRL8010FS Mounting Clips

Two Model CM12X12 Pull Handles

One Model DCH4 72" Header

Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
