• SKU D990DU123W dark bronze aluminum 3 way partition post, 12 in high, 1 1/8 in square tube with U channel glazing.
  • SKU D990DU123W dark bronze aluminum 3 way partition post, 12 in high, 1 1/8 in square tube with U channel glazing.
1 2

CRL

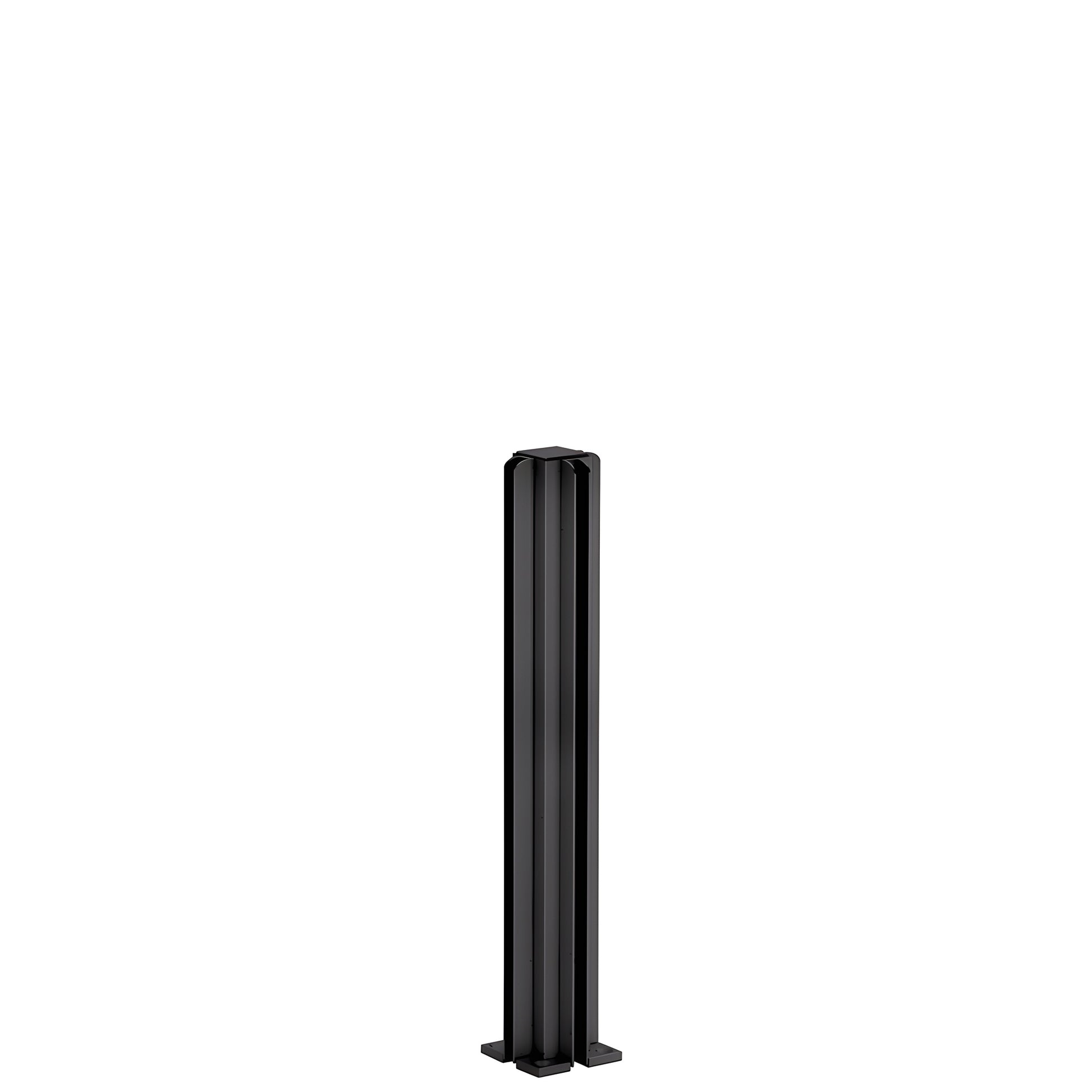

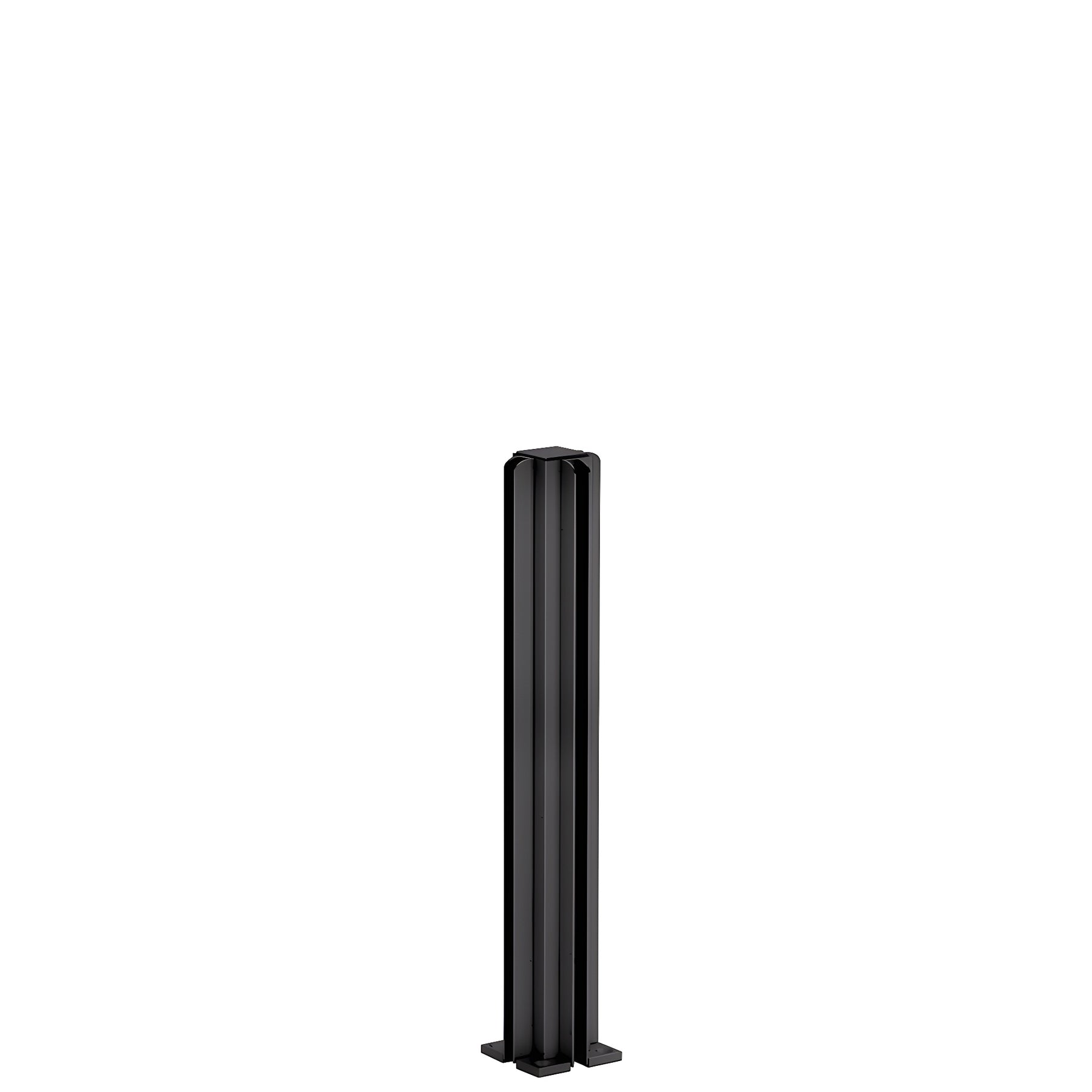

CRL Duranodic Bronze 12-in 3-way Glass Partition Post

CRL Duranodic Bronze 12-in 3-way Glass Partition Post

$137.56 CAD
$137.56 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# D990DU123W
Shipping Weight: 14.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Base Type
Square Flat - Mechanical
Cap Type
Flat
Configuration
3-Way Post
Finish/Color
Dark Bronze Anodized
Glazed
No
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Height
12 in. (304.8 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square

Overview

  • SKU: D990DU123W — Stock partition post sizes, RED-E to ship
  • Standard heights: 12", 18", and 24" (305, 457, 610 mm) — available in four finishes
  • Five configurations: End, Center, Corner, 3‑Way, and 4‑Way
  • Aluminum tubing with full‑length glazing channels for 1/4" (6 mm) tempered glass
  • Includes attached top cap, attached mounting base, and four wood screws
  • Use monolithic tempered glass; glazing vinyl supplied for 1/4" (6 mm) and 3/16" (5 mm) glass

CRL Design Series partition posts are a popular choice for glass partitions, office dividers, banks, and restaurant applications. Their slim-line 1-1/8" (28.6 mm) square profile and easy-to-install 2" (51 mm) square mounting base make them ideal for commercial glass partition installations. Glazing channels rise 15/32" (12 mm) from the post surface and run full length for secure mounting of tempered glass panels. Use Cat. No. 33SC Clear Silicone to secure glass in the channels.

Custom 135° posts are available in select finishes and sizes. Each fully assembled post ships with an attached top cap, attached mounting base, and four wood screws for quick installation.

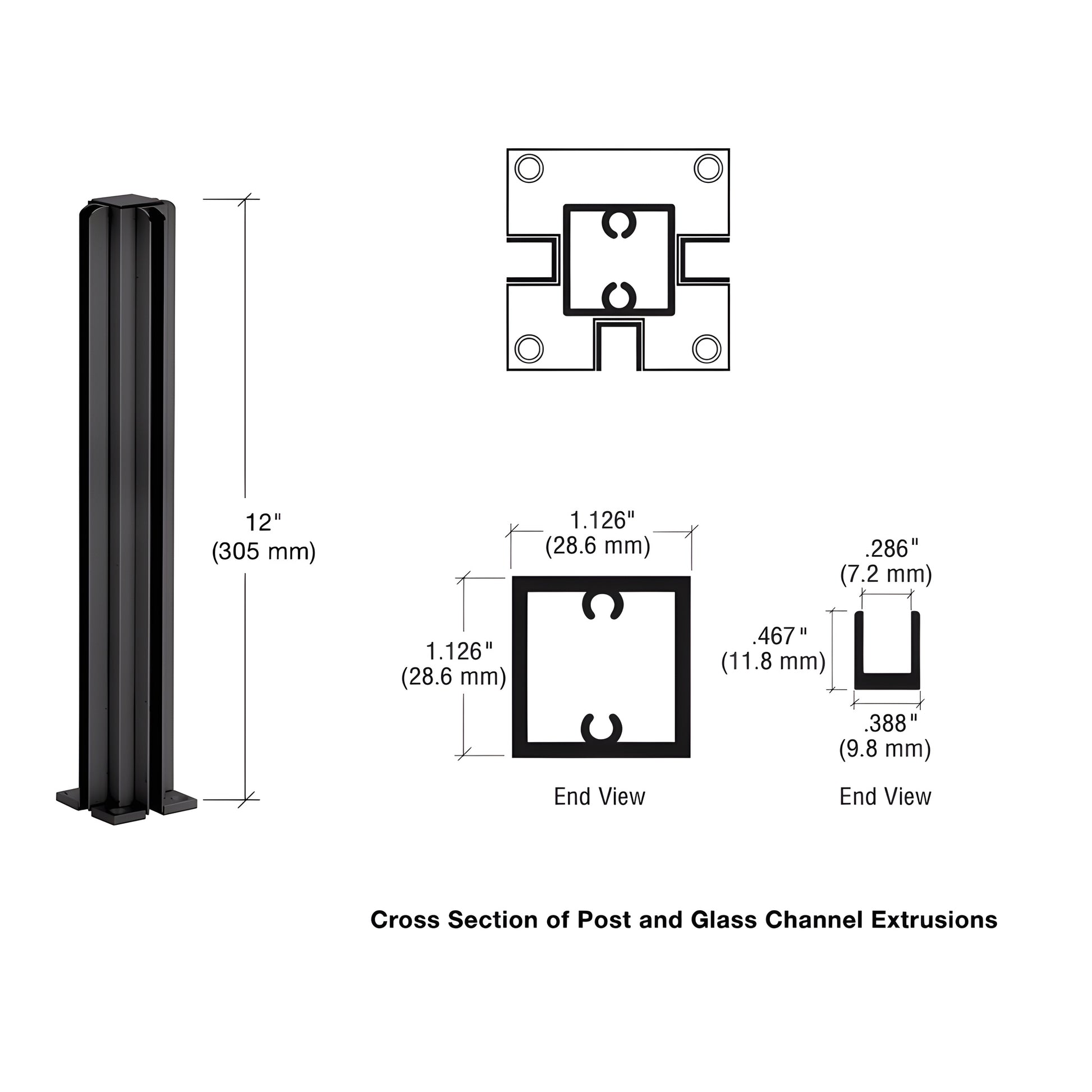

Dimensions recap:
  • Post: 1-1/8" (28.6 mm) square
  • Base Plate: 2" (51 mm) square
  • Glazing channel rise: 15/32" (12 mm)

You can also "Make Your Own" Design Series partition posts with CRL components — see instructions and requirements and the parts page.

Product note:

Most shipping weights are approximate. If you need exact weight to calculate shipping costs, contact CRL Customer Service before ordering. Product images are representative; colors may vary by monitor.

Ready to order durable aluminum partition posts for 1/4" tempered glass? Contact CRL or add SKU D990DU123W to your cart today.
