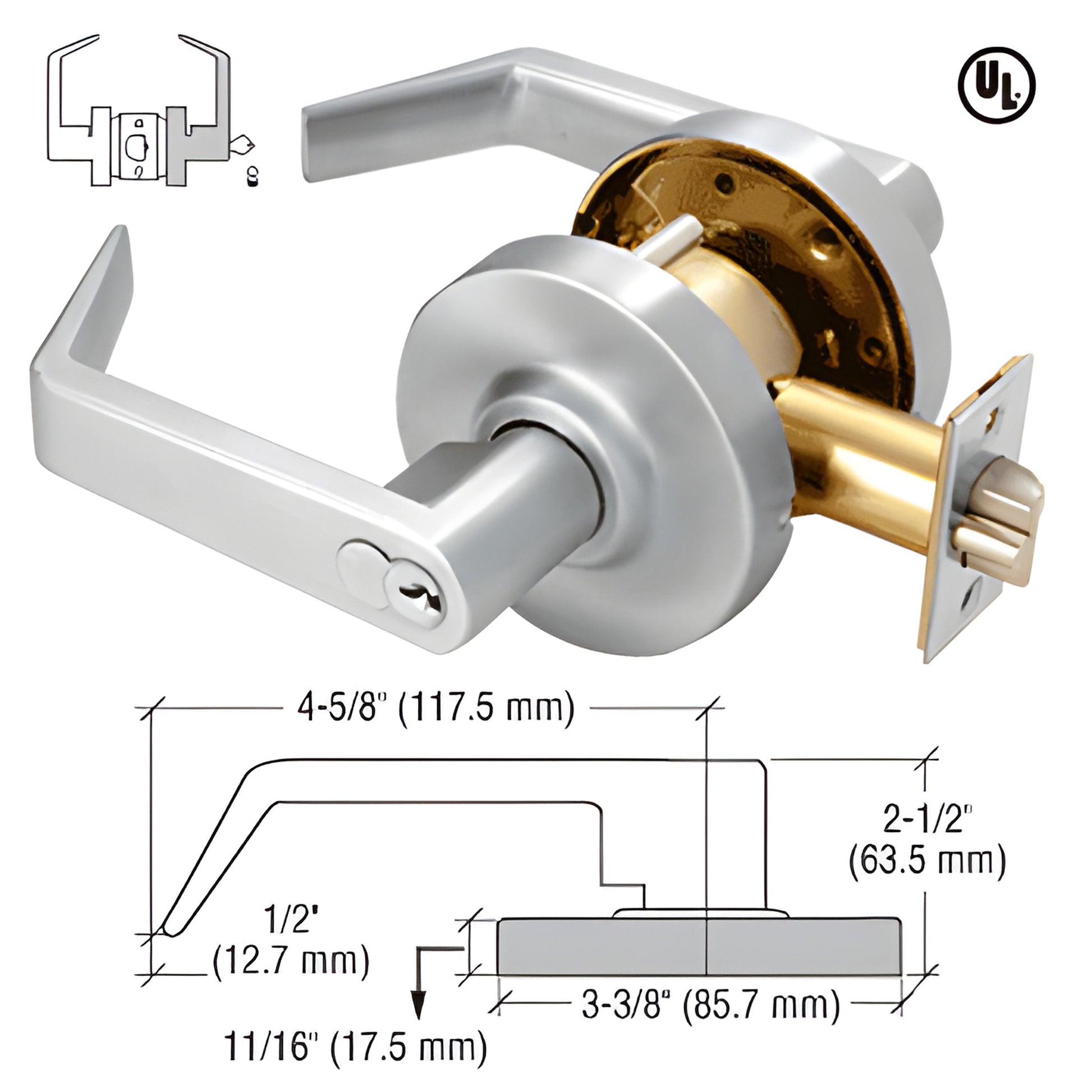

• Brushed chrome heavy-duty Grade 1 storeroom lever lockset (SKU D82STR) with latch, strike, 7 pin SFIC.
1 1

CRL

CRL Grade 1 Brushed Chrome Storeroom Lever Lockset 7-Pin SFIC

CRL Grade 1 Brushed Chrome Storeroom Lever Lockset 7-Pin SFIC

$215.01 CAD
$215.01 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# D82STR
Shipping Weight: 4.05 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Backset
2-3/4
Category
Door Accessories
Certification
ANSI A156.2 Grade 1
Clutch Feature
Yes
Door Thickness Range
1-3/8" To 1-3/4"
Door Type
Aluminum, Wood, Hollow Metal
Finish/Color
Brushed Chrome
Fire Rating Hour
3
Function
Storeroom
Handing
Non Handed and Reversible
Handle Length
4-5/8
Includes
Strike
Keyway
7 Pin SFIC
Operation Type
F86 Storeroom Lever
Projection
2-1/2
Rosette Base Height
11/16
Rosette Base Width
3-3/8
Strike Height
4-7/8
Strike Width
1-1/4
Type
Heavy Duty Lever Lockset
UL Listed
Yes

Overview

  • 7-Pin SFIC (Small Format Interchangeable Core)
  • Clutch Feature (prevents lever damage under torque)
  • ANSI A156.2 Grade 1
  • 3-Year Warranty
  • UL Listed, 3-hour fire rating

These CRL heavy-duty commercial Grade 1 and 2 lever locksets (SKU D82STR) are non-handed and reversible. The clutch (group 1) feature disengages the outer lever when the latch is locked, preventing latch failure if excessive torque is applied. This makes them ideal as a commercial grade 1 lever lockset for high-traffic and high-security applications.

These locksets are UL Listed with a 3-hour fire rating and fit door thicknesses from 1-3/8" to 1-3/4" (35 to 45 mm) with a 2-3/4" (70 mm) backset. Available with either a Schlage® C 6-pin keyway or a 7-pin SFIC and include an ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike.

STOREROOM FUNCTION DESCRIPTION: Outside lever always locked; key unlatches only. Inside lever always allows free egress—meets commercial storeroom requirements.

Most shipping weights are approximate and have not been verified. If exact weight or shipping cost information is required to complete your order, please request it prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary depending on your monitor settings.


Contact CRL Customer Service to confirm specifications or request a quote.

Specifications

Templates
Template d10 d15 pass template.pdf
