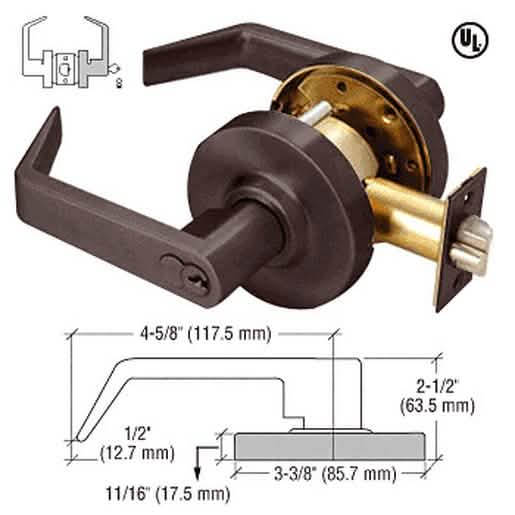

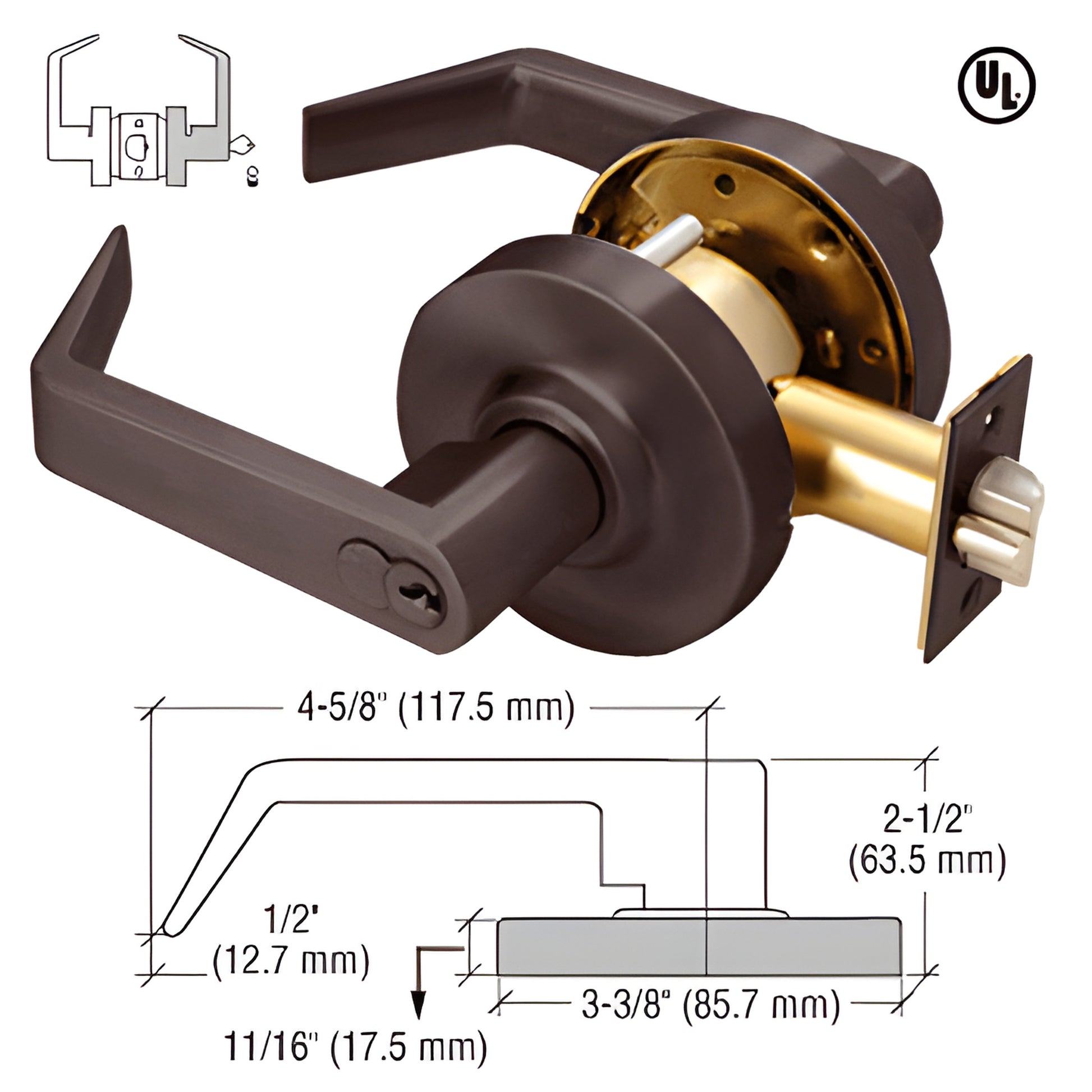

CRL Heavy-Duty Oil Rubbed Bronze Grade 1 Lever Locksets Storeroom - 7-Pin SFIC
CRL Heavy-Duty Oil Rubbed Bronze Grade 1 Lever Locksets Storeroom - 7-Pin SFIC
Regular price
$225.86 CAD
Regular price
Sale price
$225.86 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D82STR0RB
Shipping Weight: 4.05 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 4.05 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Backset | 2-3/4 |
| Category | Door Accessories |
| Certification ANSI A | 156.2 Grade 1 |
| Clutch | Feature Yes |
| Door Thickness Range | 1-3/8" To 1-3/4" |
| Door | Type Aluminum, Wood, Hollow Metal |
| Finish/Color | Oil Rubbed Bronze |
| Fire Rating Hour | 3 |
| Function | Storeroom |
| Handing | Non Handed and Reversible |
| Handle Length | 4-5/8 |
| Includes | Strike |
| Keyway | 7 Pin SFIC |
| Operation Type F | 86 Storeroom Lever |
| Projection | 2-1/2 |
| Rosette Base Height | 11/16 |
| Rosette Base Width | 3-3/8 |
| Strike Height | 4-7/8 |
| Strike Width | 1-1/4 |
| Type | Heavy Duty Lever Lockset |
| U | L Listed Yes |
Overview
The CRL Heavy-Duty Commercial Grade 1 and 2 Lever Locksets are designed with a 7-Pin SFIC Keyway and feature a unique clutch mechanism (Group 1) that prevents latch failure by disengaging the outer lever when locked.
These locksets boast a robust ANSI A156.2 Grade 1 certification and come with a 3-year warranty, ensuring durability and reliability.
UL Listed with a 3-hour fire rating, they fit door thicknesses between 1-3/8" to 1-3/4" and include a 2-3/4" backset, available in Schlage® 'C' 6-pin or 7-pin SFIC keyways.
The storeroom function ensures security with an always-locked outside lever, while the inside lever allows free egress, ideal for commercial applications.
These locksets boast a robust ANSI A156.2 Grade 1 certification and come with a 3-year warranty, ensuring durability and reliability.
UL Listed with a 3-hour fire rating, they fit door thicknesses between 1-3/8" to 1-3/4" and include a 2-3/4" backset, available in Schlage® 'C' 6-pin or 7-pin SFIC keyways.
The storeroom function ensures security with an always-locked outside lever, while the inside lever allows free egress, ideal for commercial applications.
