CRL

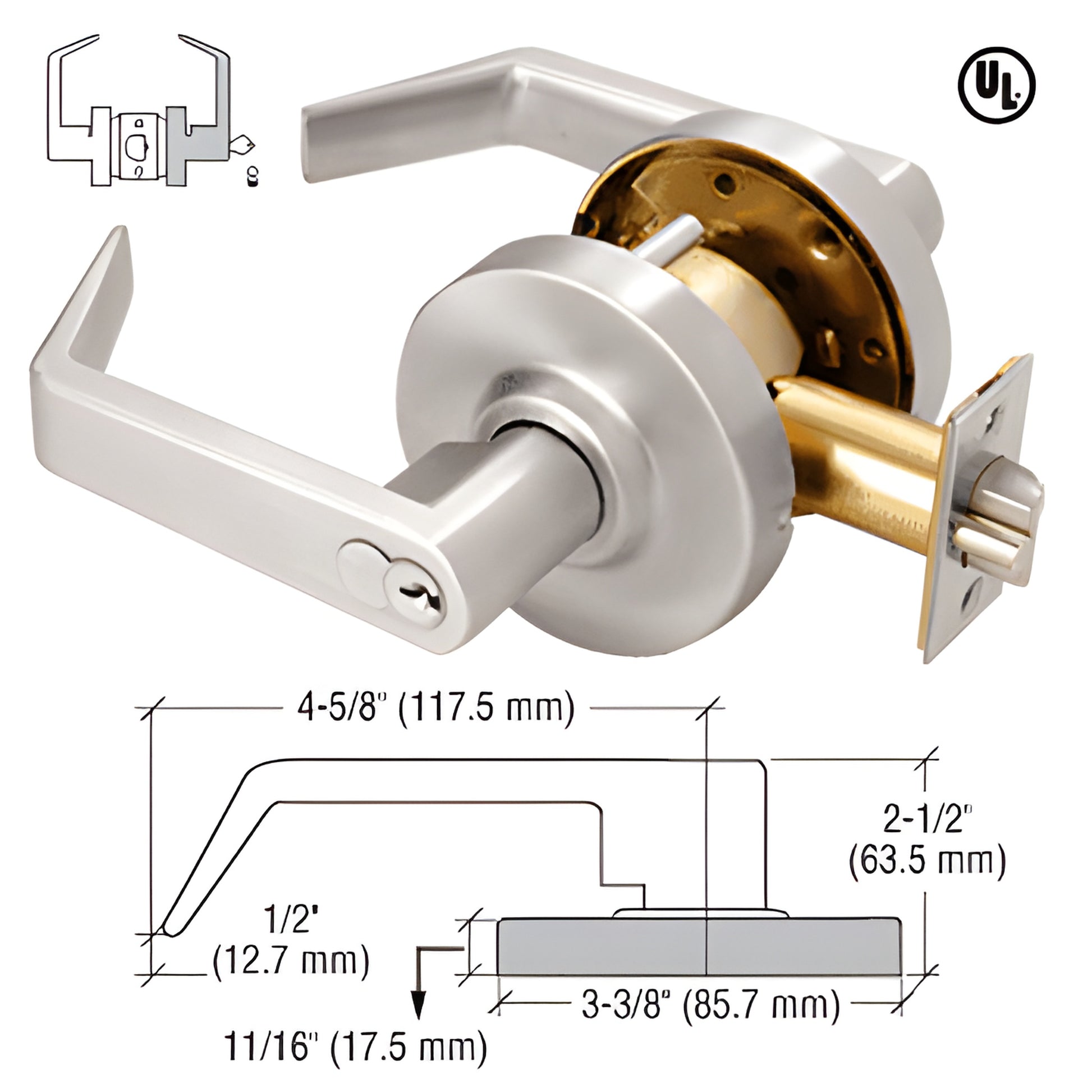

CRL Brushed Nickel Grade 1 Lever Lockset Storeroom 7-Pin SFIC
CRL Brushed Nickel Grade 1 Lever Lockset Storeroom 7-Pin SFIC
Regular price
$215.01 CAD
Regular price
Sale price
$215.01 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D82STRBN
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Backset
2-3/4
Category
Door Accessories
Certification
ANSI A156.2 Grade 1
Clutch Feature
Yes
Door Thickness Range
1-3/8" To 1-3/4"
Door Type
Aluminum, Wood, Hollow Metal
Finish/Color
Brushed Nickel
Fire Rating Hour
3
Function
Storeroom
Handing
Non Handed and Reversible
Handle Length
4-5/8
Keyway
7-Pin SFIC
Operation Type
F86 Storeroom Lever
Projection
2-1/2
Rosette Base Height
11/16
Rosette Base Width
3-3/8
Strike Height
4-7/8
Strike Width
1-1/4
Type
Heavy Duty Lever Lockset
UL Listed
Yes
Overview
- 7-Pin SFIC Keyway
- Clutch Feature (Group 1) — prevents outer-lever latch failure under excessive torque
- ANSI A156.2 Grade 1
- 3 Year Warranty
- UL Listed, 3‑hour fire rating
These CRL heavy-duty commercial Grade 1 lever locksets are non-handed and reversible. The Group 1 clutch disengages the outside lever when the latch is locked to help prevent forced-entry damage — a key differentiator for high-traffic commercial doors.
These locksets are UL listed with a 3-hour fire rating, fit door thicknesses from 1-3/8" to 1-3/4" (35–45 mm) with a 2-3/4" (70 mm) backset, and include an ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike. Available keyed with either a Schlage® C 6-pin keyway or a 7-pin Small Format Interchangeable Core (SFIC) — ideal for master-keyed commercial systems.
Storeroom function: Outside lever always locked; key is required to unlatch. Inside lever always allows free egress — compliant solution for secure storage and utility rooms.
SKU: D82STRBN — commercial heavy-duty lever lockset, 7-pin SFIC option, ANSI Grade 1, UL 3-hour fire rated.
Order the D82STRBN commercial Grade 1 lever lockset today for a durable, fire-rated locking solution built for high-traffic applications.
