CRL

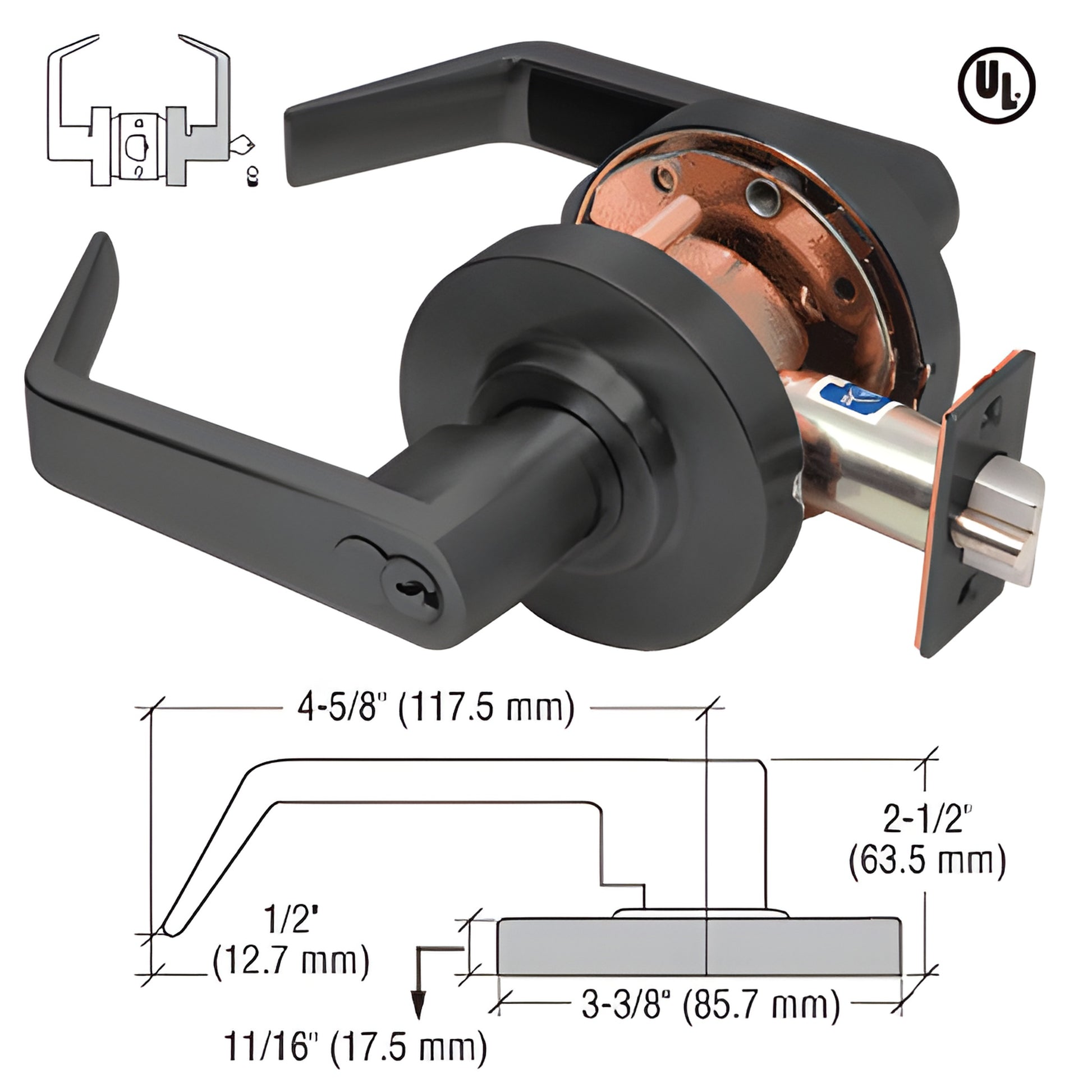

CRL Matte Black Grade 1 Storeroom Lever Lockset, 7-Pin SFIC
CRL Matte Black Grade 1 Storeroom Lever Lockset, 7-Pin SFIC
Regular price
$235.20 CAD
Regular price
Sale price
$235.20 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D82STRMBL
Shipping Weight: 4.05 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.05 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Backset
2-3/4
Category
Door Accessories
Certification
ANSI A156.2 Grade 1
Clutch Feature
Yes
Door Thickness Range
1-3/8" To 1-3/4"
Door Type
Aluminum, Wood, Hollow Metal
Finish/Color
Matte Black
Fire Rating Hour
3
Function
Storeroom
Handing
Non Handed and Reversible
Handle Length
4-5/8
Includes
Strike
Keyway
7-Pin SFIC
Operation Type
F89 Storeroom Lever
Projection
2-1/2
Rosette Base Height
11/16
Rosette Base Width
3-3/8
Strike Height
4-7/8
Strike Width
1-1/4
Type
Heavy Duty Lever Lockset
UL Listed
Yes
Overview
- 7-Pin SFIC Keyway
- Clutch Feature (Group 1)
- ANSI A156.2 Grade 1
- 3 Year Warranty
- UL Listed, 3‑hour fire rating
These CRL heavy-duty commercial Grade 1 and 2 lever locksets are non-handed and reversible. The Group 1 clutch disengages the outer lever when the latch is locked, preventing latch failure from excessive torque—an important anti-forcing feature for commercial doors.
These UL Listed, 3-hour fire rated locksets fit door thicknesses from 1-3/8" to 1-3/4" (35–45 mm) with a 2-3/4" (70 mm) backset. Available with a 7-pin Small Format Interchangeable Core (SFIC) keyway or Schlage® C 6‑pin keyway, and include an ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike. Ideal for commercial storeroom applications where secure, fail-safe egress is required.
STOREROOM FUNCTION DESCRIPTION: Outside lever always locked; key unlatches only. Inside lever always allows free egress.
Order this commercial 7‑pin SFIC lever lockset for reliable, fire-rated door security — contact CRL or add to cart to purchase.
Specifications
Installation Instructions
