CRL

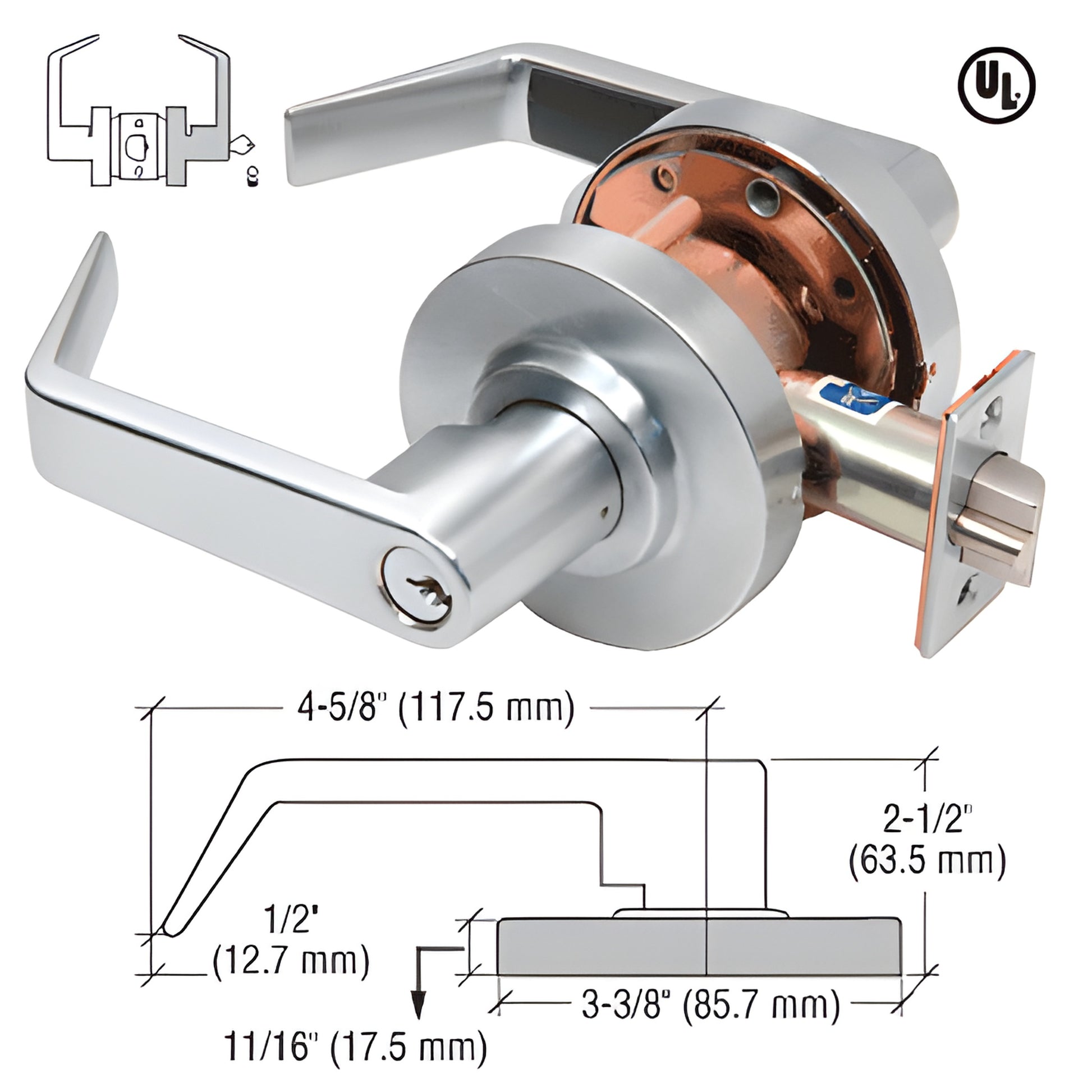

CRL Grade 1 Brushed Chrome Lever Lockset, Storeroom - Schlage 6-Pin
CRL Grade 1 Brushed Chrome Lever Lockset, Storeroom - Schlage 6-Pin
Regular price
$171.72 CAD
Regular price
Sale price
$171.72 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D80STR
Shipping Weight: 4.01 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.01 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Backset
2-3/4
Category
Door Accessories
Certification
ANSI A156.2 Grade 1
Clutch Feature
Yes
Door Thickness Range
1-3/8" To 1-3/4"
Door Type
Aluminum, Wood, Hollow Metal
Finish/Color
Brushed Chrome
Fire Rating Hour
3
Function
Storeroom
Handing
Non Handed and Reversible
Handle Length
4-5/8
Includes
Strike
Keyway
'C' 6-Pin
Operation Type
F86 Storeroom Lever
Projection
2-1/2
Rosette Base Height
11/16
Rosette Base Width
3-3/8
Strike Height
4-7/8
Strike Width
1-1/4
Type
Heavy Duty Lever Lockset
UL Listed
Yes
Overview
- Schlage® 'C' 6-Pin Keyway
- Clutch Feature (group 1)
- ANSI A156.2 Grade 1
- 3-Year Warranty
- UL Listed — 3-hour fire rating
CRL Heavy-Duty Commercial Grade 1 and 2 Lever Locksets — non-handed, reversible commercial lever locksets engineered for high-traffic doors. The clutch feature disengages the outer lever when locked to prevent latch failure from excessive torque, a key security and durability advantage for commercial storefronts, offices, and institutional facilities.
Specifications: UL Listed with a 3-hour fire rating; fits door thicknesses 1-3/8" to 1-3/4" (35–45 mm); 2-3/4" (70 mm) backset; ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike. Available with Schlage® 'C' 6-pin keyway or 7-pin Small Format Interchangeable Core (SFIC) options.
Storeroom Function: Outside lever always locked — key unlatches only. Inside lever always allows free egress. Ideal for secure storage rooms, supply closets, and commercial spaces requiring controlled exterior access.
Key benefits: commercial-grade durability, anti-torque clutch protection, reversible non-handed design, 3-hour fire rating, Schlage C keyway or SFIC flexibility.
Order SKU D80STR today to secure a fire-rated, commercial-grade lever lockset for high-traffic and secure applications.
