Product Details
- ANSI A156.13 Series 1000 Grade 1
- Field Reversible (Non-Handed)
- Fits Doors 1-3/8" to 1-3/4" (35 to 45 mm) Thick
- Schlage® 'C' 6-Pin, 1-1/8" (29 mm) Mortise Cylinder
- Supplied With ANSI 1-1/4" x 4-7/8" (32 x 124 mm) Strike
- ANSI A156.2 Grade 1. UL10C and 7.2 for Positive Pressure
- ANSI A117.1 and ADA for Barrier-Free Accessibility
- C-UBC California Amended Uniform Builders Code, 2001
- NFPA -80 National Fire Protection, 1999
- NFPA101 National Fire Protection, Life Safety, 2000 Product Warning: Door Handing is Determined from the Outside or Key (Secure) Side of the Door.

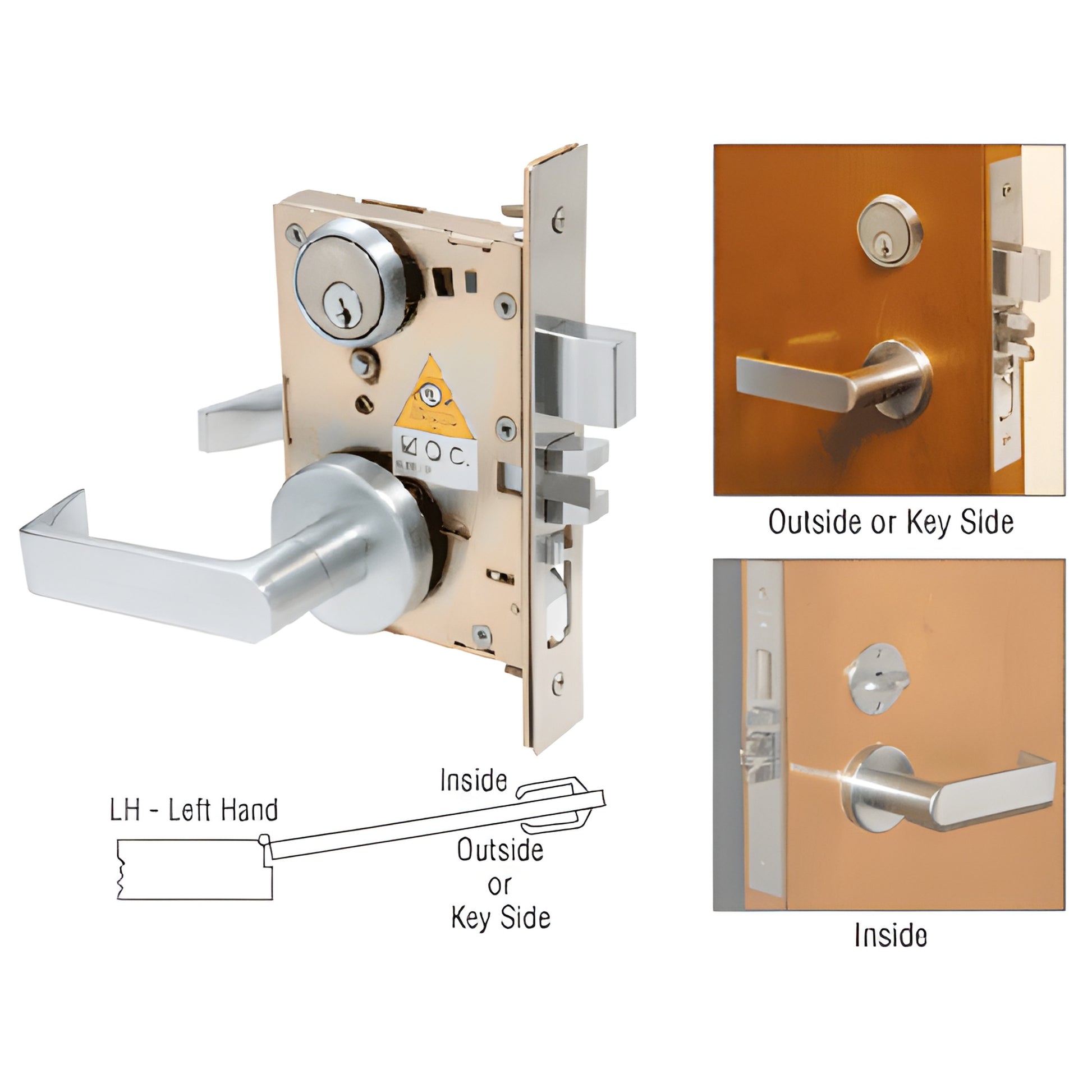

CRL Heavy-Duty Commercial Grade 1 Mortise Lever Locksets are easy-to-install, and come with detailed installation instructions. These Mortise Lever Locks have a 3-hour fire rating and are UL listed. The lock case features heavy-duty stamped steel construction.
Lever Locks are available to meet Entrance ANSI F04 Function, with Right Hand, Left Hand, Right Hand Reverse, or Left Hand Reverse handing options.
SPECIFICATIONS:
Locksets fit 1-3/4" (44.5 mm) door thicknesses
Made for a 2-3/4" (70 mm) backset.
The 1-1/8" (28.5 mm) mortise cylinder has a Schlage® 'C' 6-pin keyway.
Includes an ANSI 1-1/4" x 4-7/8" (31.8 x 124 mm) curved lip Strike.
Code Compliances: ANSI A156.2 Grade 1. UL10C and 7.2 for Positive PressureANSI A117.1 and ADA for Barrier-Free Accessibility C-UBC California Amended Uniform Builders Code, 2001 NFPA -80 National Fire Protection, 1999NFPA101 National Fire Protection, Life Safety, 2000
Product Warning:
Door Handing is Determined from the Outside or Key (Secure) Side of the Door.
