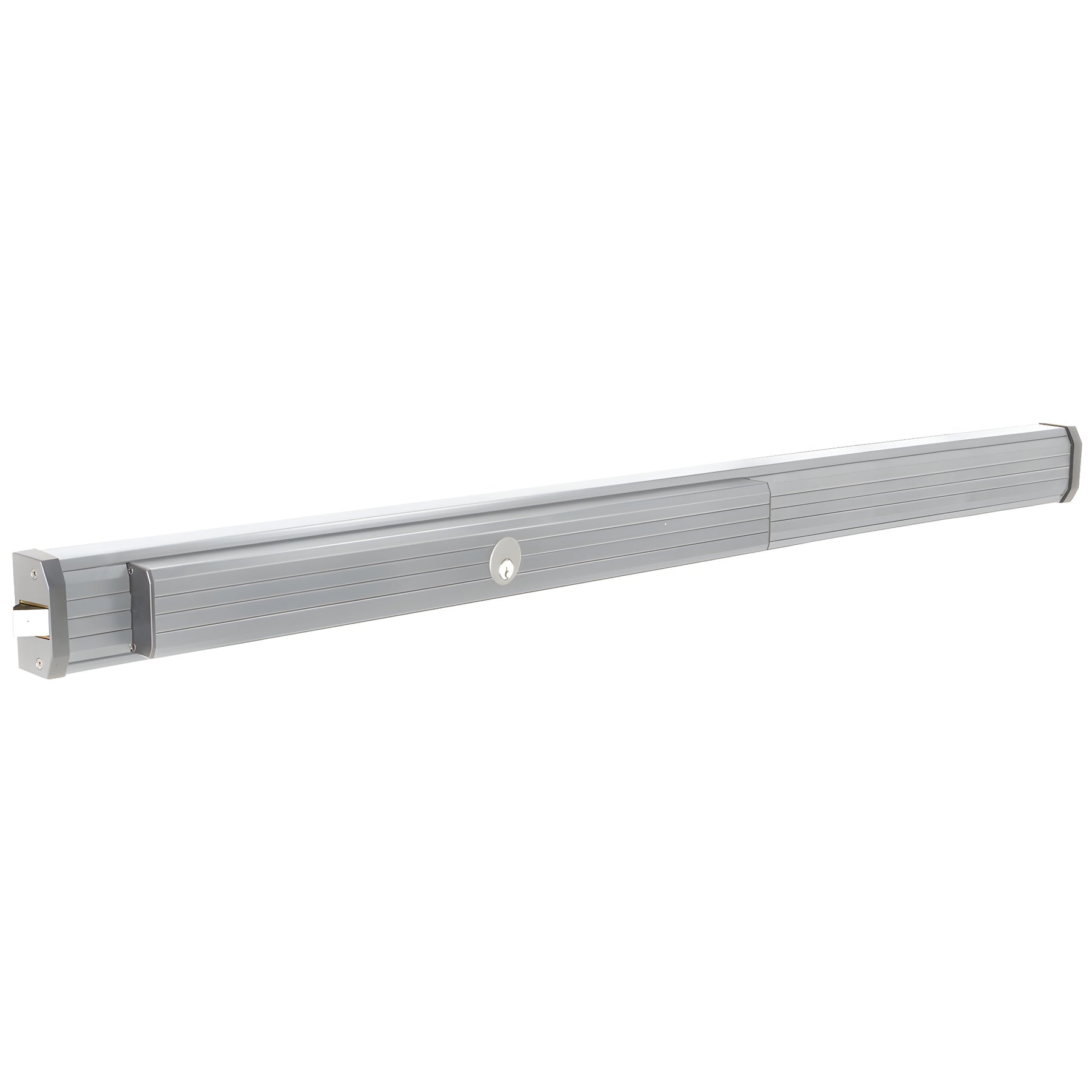

CRL Jackson® 1295 Push Pad Rim Panic Exit Device - Cylinder Dogging, C-Type Strike, 48", Satin Aluminum

Finish (2)

Dark Bronze
Aluminum

Overview

SKU	311295CC4628
Sold as	1 Each
Brand	Jackson
Certification	ANSI/BHMA 156.3
Door Thickness	1-3/4 in. (44.5 mm)
Door Width	48 in. (1219.2 mm)
Finish/Color:	Aluminum
Handing	Non Handed
Includes	Mounting Hardware
Material - End Cap	Aluminum
Material - Housing	Aluminum
Material - Latch & Strike	Sintered Steel
Material - Mechanical Components	Stainless and Hardened Plated Steel
Minimum Stile Width	1-3/4 in. (44.5 mm)
Model	1295
Panic Bar Base Height	3-3/16 in. (81 mm)
Panic Bar Projection	2-7/8 in. (73 mm)
Panic Bar Width Net	46-1/2 in. (1181.1 mm)
Panic Dogging	Prepped For Cylinder Dogging
Panic Type	Rim
Push Pad Width	24 in. (609.6 mm)
Recommended Door Type	Aluminum, Wood, Hollow Metal
Series	1200
UL Listed	Yes

Description

Product Details

Designed for Use with Narrow, Medium or Wide Stile Aluminum, Wood or Hollow Metal Doors
Rugged, Reliable, Secure 3/4" Throw Latchbolt Bullet
Non-Handed
Field Sizable to 30"
DC7205SCKDSC
DC7205SCKASC
1CHSA
1C01
302630628

The CRL Jackson® 1295 is a Push Pad Rim Panic Device designed for use with narrow, medium and wide stile aluminum, wood and hollow metal doors.
