CRL KYNAR® Painted Aluminum Narrow Inset Glazed Vision Lite

• Narrow Inset Frame Vision Window with Surround Sound System — natural voice transmission without a speak-thru device

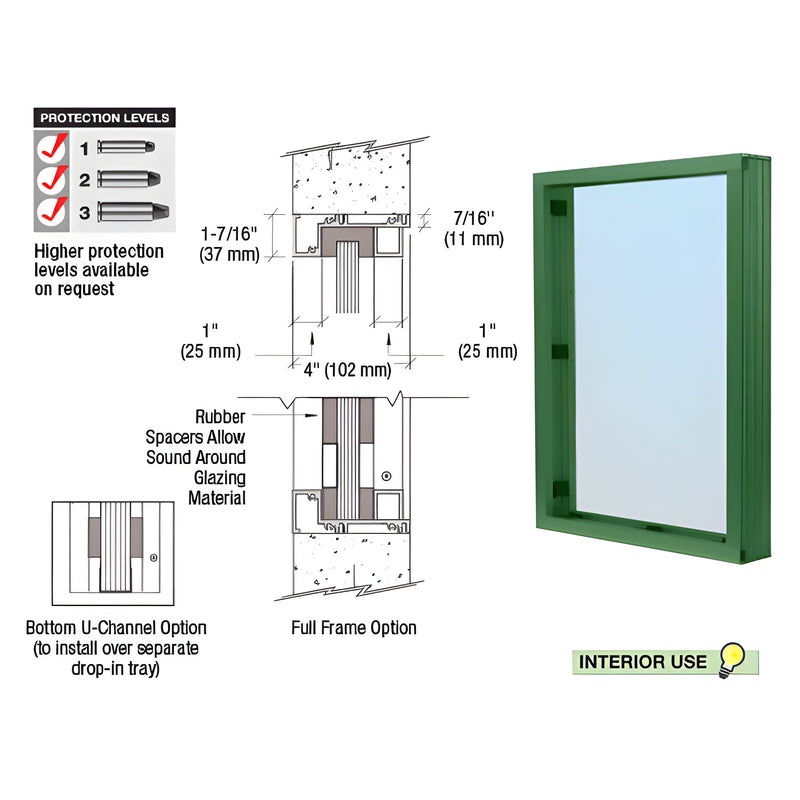

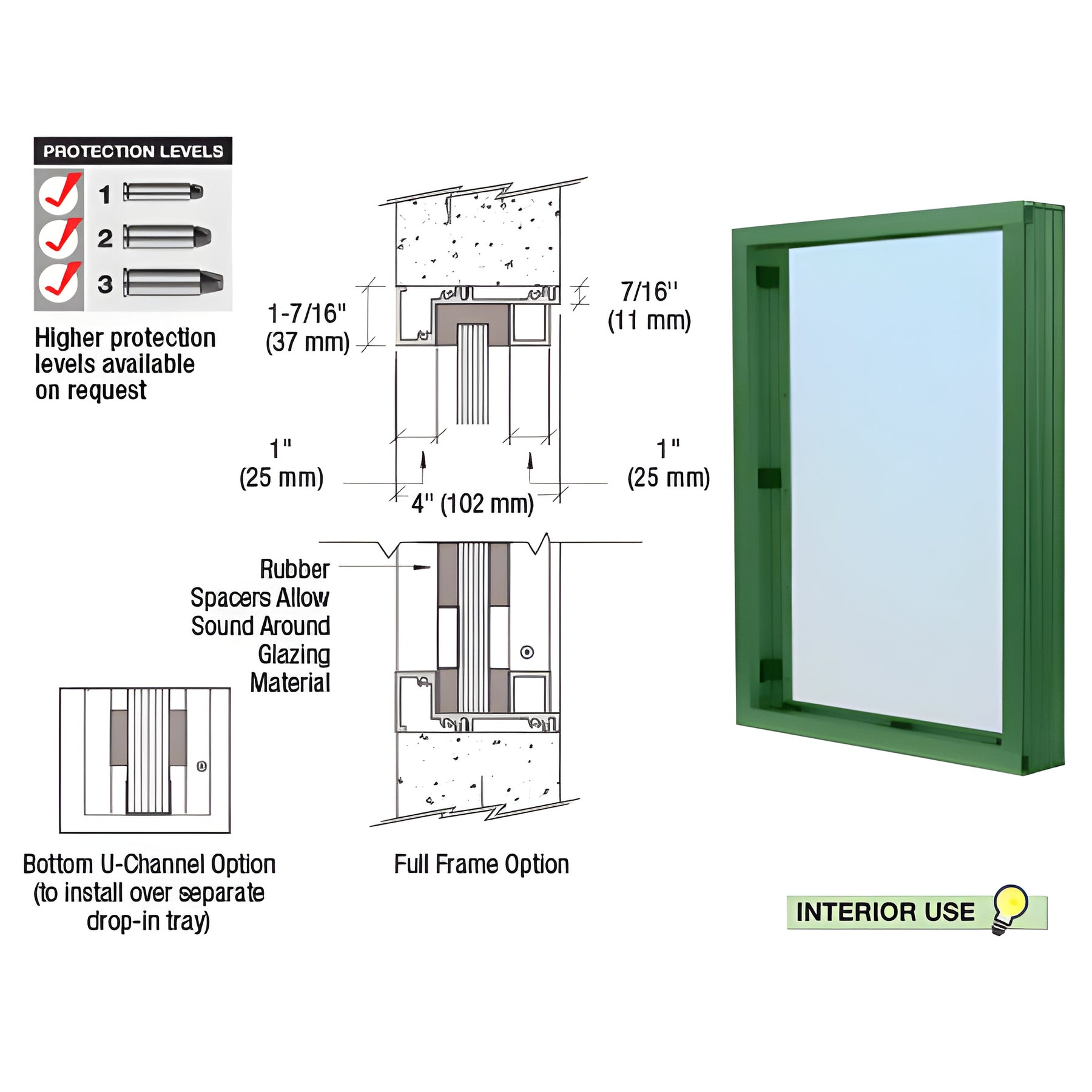

• Drawings and specifications available online (SKU: N1V1K)

CRL Narrow Inset Frame Vision Windows with integrated surround sound enable clear, natural voice transmission for interior pass-through and teller applications without an added speak-thru. Designed for walls 4" (102 mm) or thicker, the uniform four-sided frame installs flush in interior openings and is commonly mounted above built-in exchange drawers or as sidelites in multi-lite exchange window units. Optionally ordered with U-channel under glazing to accommodate Drop-In Deal Trays. Not weathertight — for interior use only. Securing the frame requires removal and reinstallation of glazing material and spacer blocks.

SPECIFICATIONS:
Materials: Glazing options: 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1" (25 mm) Level 2 Lexgard®; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®.
Finishes: Frame: Satin Anodized, Duranodic Bronze, RAL powder coat colors, or custom KYNAR® paint colors.
Instructions Included

Product Warning:

CRL recommends a maximum width of 36" (914 mm) when surround sound is used.


Contact CRL Customer Service to request drawings, confirm weights, or place an order for SKU: N1V1K.
